3. PC USB communication socket (optional). Connect the USB
Type B plug to the MultiLogPRO and the USB Type A plug to the
PC (you need to install USB driver).
4. External DC power supply socket: Plug in an AC/DC 9 - 12V
adaptor to turn MultiLogPRO on. The adaptor should meet the
required specifications (see section 6.1.2).

6.1.2 AC/DC Adaptor

 Output: Capacitor filtered 9 to 12 VDC, 400mA.
 Female plug, center Negative.

6.2 Stand-Alone Operation

6.2.1 Front Panel Layout

Backward
Button
On/Off
Buttons
– disabled in the
Weather Station
version
fn
?

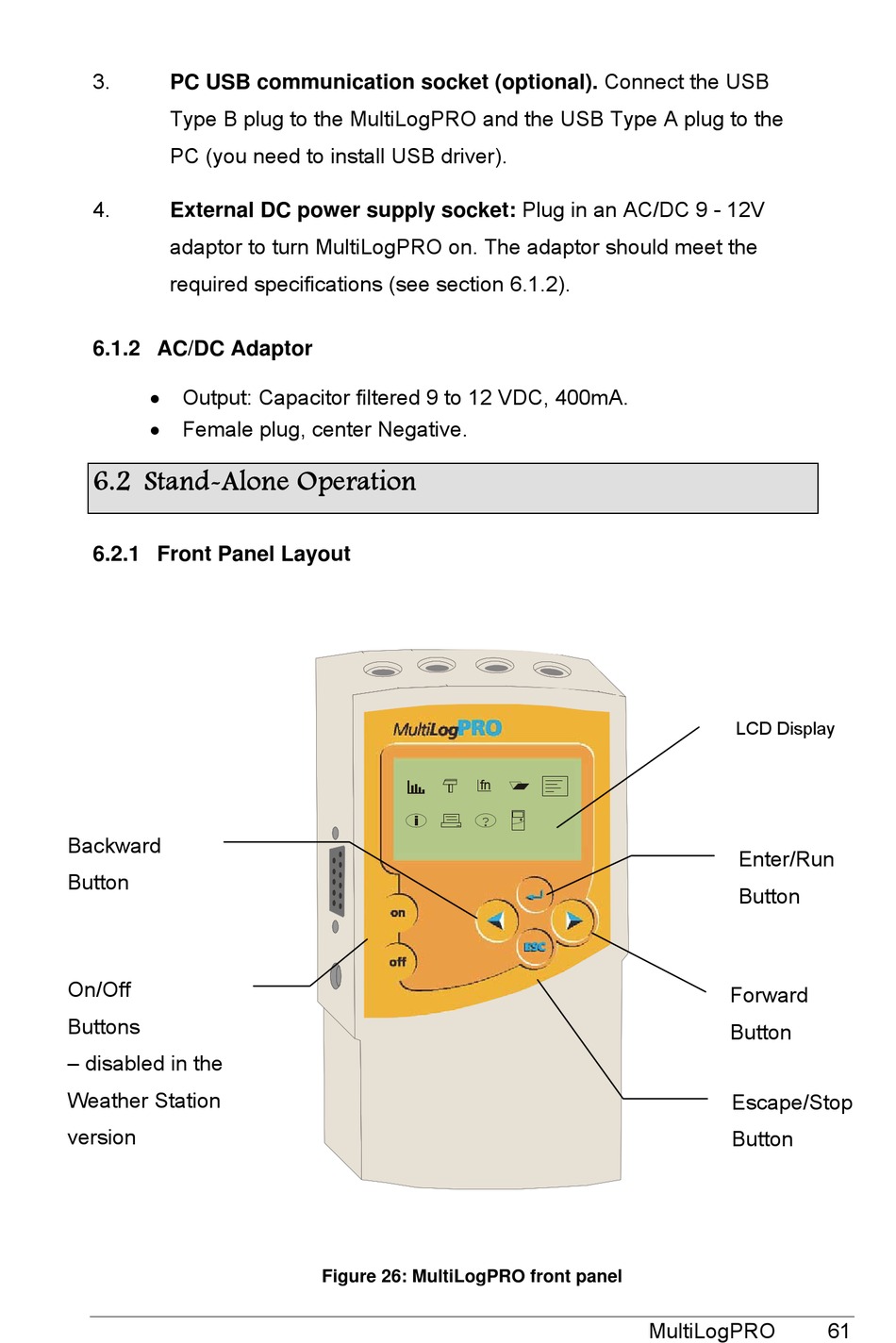

Figure 26: MultiLogPRO front panel
LCD Display
Enter/Run
Button
Forward
Button
Escape/Stop
Button
MultiLogPRO 61
