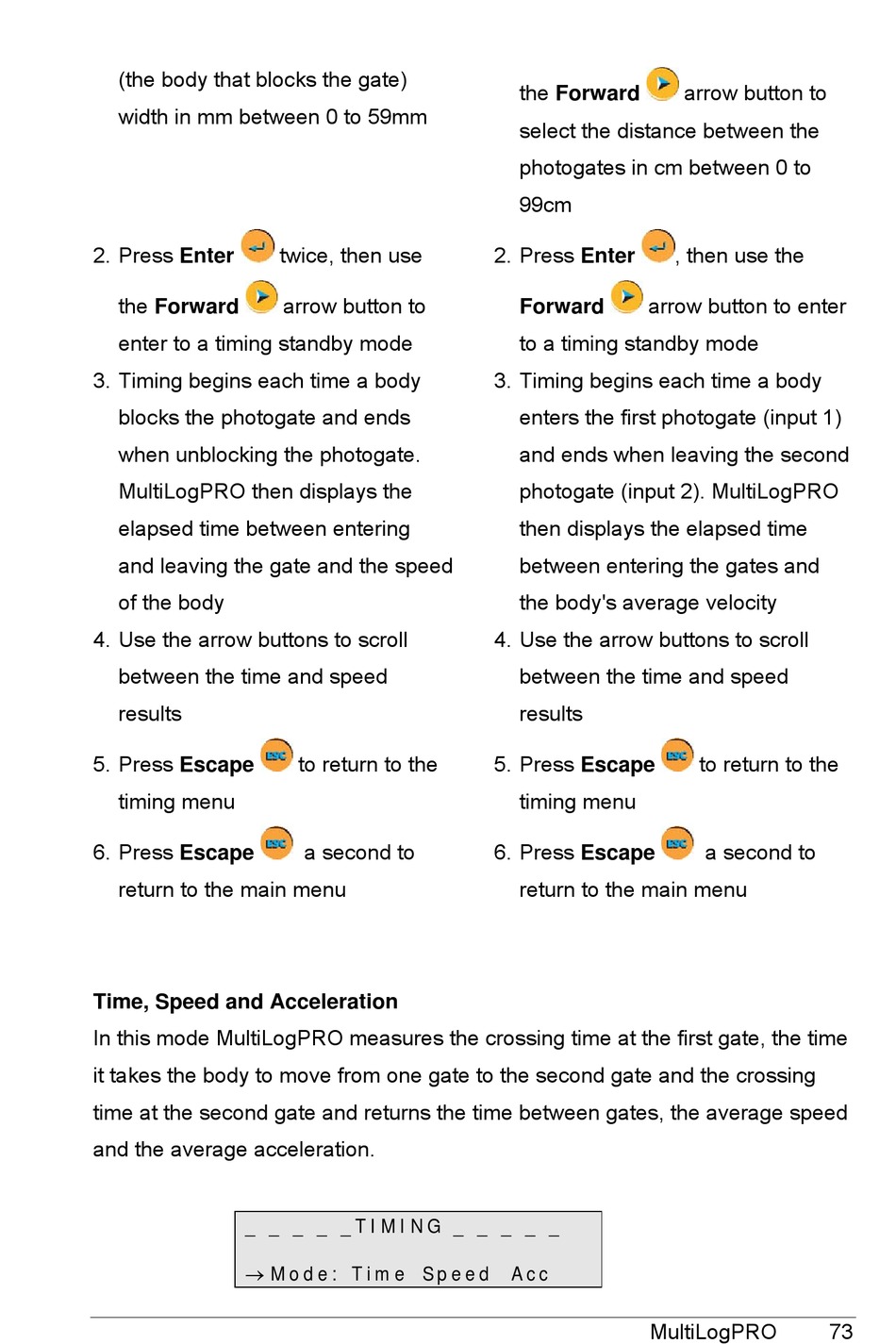

Fourier MultiLogPRO User Manual page 79

(the body that blocks the gate)
width in mm between 0 to 59mm
2. Press Enter
the Forward
enter to a timing standby mode
3. Timing begins each time a body
blocks the photogate and ends
when unblocking the photogate.
MultiLogPRO then displays the
elapsed time between entering
and leaving the gate and the speed
of the body
4. Use the arrow buttons to scroll
between the time and speed
results
5. Press Escape
timing menu
6. Press Escape
return to the main menu
Time, Speed and Acceleration
In this mode MultiLogPRO measures the crossing time at the first gate, the time
it takes the body to move from one gate to the second gate and the crossing
time at the second gate and returns the time between gates, the average speed
and the average acceleration.
_ _ _ _ _ T I M I N G _ _ _ _ _
 M o d e : T i m e S p e e d
twice, then use
arrow button to
to return to the
a second to
the Forward
select the distance between the
photogates in cm between 0 to
99cm
2. Press Enter
arrow button to enter
Forward
to a timing standby mode
3. Timing begins each time a body
enters the first photogate (input 1)
and ends when leaving the second
photogate (input 2). MultiLogPRO
then displays the elapsed time
between entering the gates and
the body's average velocity
4. Use the arrow buttons to scroll
between the time and speed
results
5. Press Escape
timing menu
6. Press Escape
return to the main menu
A c c
MultiLogPRO
arrow button to
, then use the
to return to the
a second to
