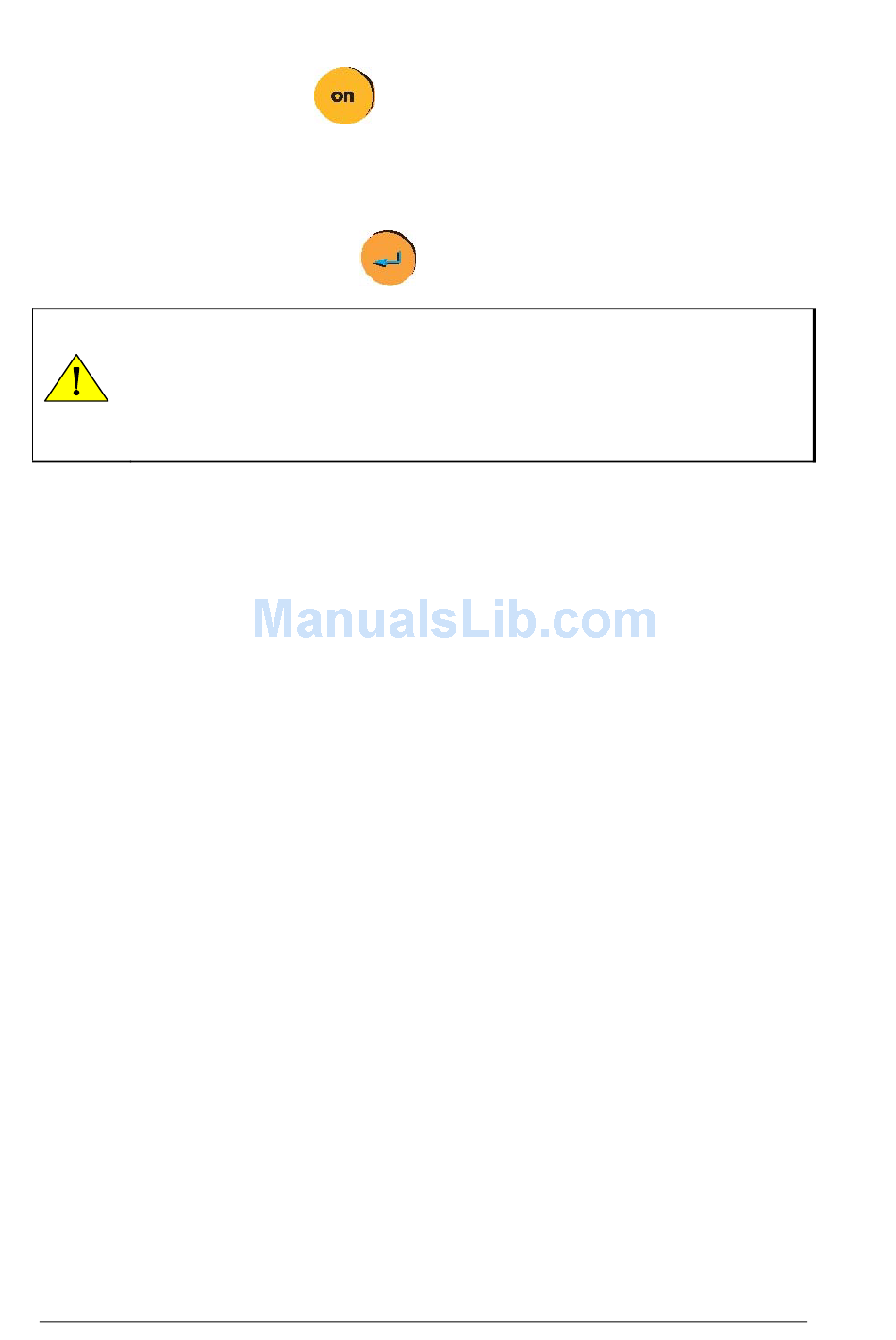

7. Press the on button
MultiLogPRO on
8. Wait until the main menu is displayed on MultiLogPRO's LCD
screen, then press Enter
Note: in wireless mode, transmission is only one way, and there is no
way of programming or operating the MultiLogPRO via the software,
therefore you must set the system to transmit data by pushing the
Enter button on the MultiLogPRO itself.
9. Close the Weather Station main box and lock it by fastening the two
plastic screws on the upper and lower right sides of the box
B. Cable Connection
1. Insert the rain sensor cable to the Weather Station main box
through the hole at the bottom of the box (A) and connect it, flat
side out, to the rain socket (C) on the sensor adaptor (see Figure
17)
2. Insert the anemometer cable to the Weather Station main box
through the hole at the bottom of the box (A) and connect it, flat
side out, to the rain socket (D) on the sensor adaptor (see Figure
17)
3. Insert the solar panel cable to the Weather Station main box
through the hole at the bottom of the box (A), connect the male lug
terminal to the female lug terminal of the charge controller cable,
and then connect the female lug terminal to the male lug terminal of
the charge controller cable
4. Connect the cables to MultiLogPRO:
A. Insert the humidity and temperature sensor cable from the
radiation shield and connect it to input 3 (I/O -3) on top of
MultiLogPRO
18 Station Installation
in MultiLogPRO's keypad to turn
to begin transmitting data
