Autoconnect
Step 5 — Autoconnect
1. In the Connecting to... dialog, select your communications port under COM
Port.
2. Click the
Start
3. Allow time for the autoconnect routine to test all of the combinations. You will see
a blue progress bar fill across the Connecting to... dialog.

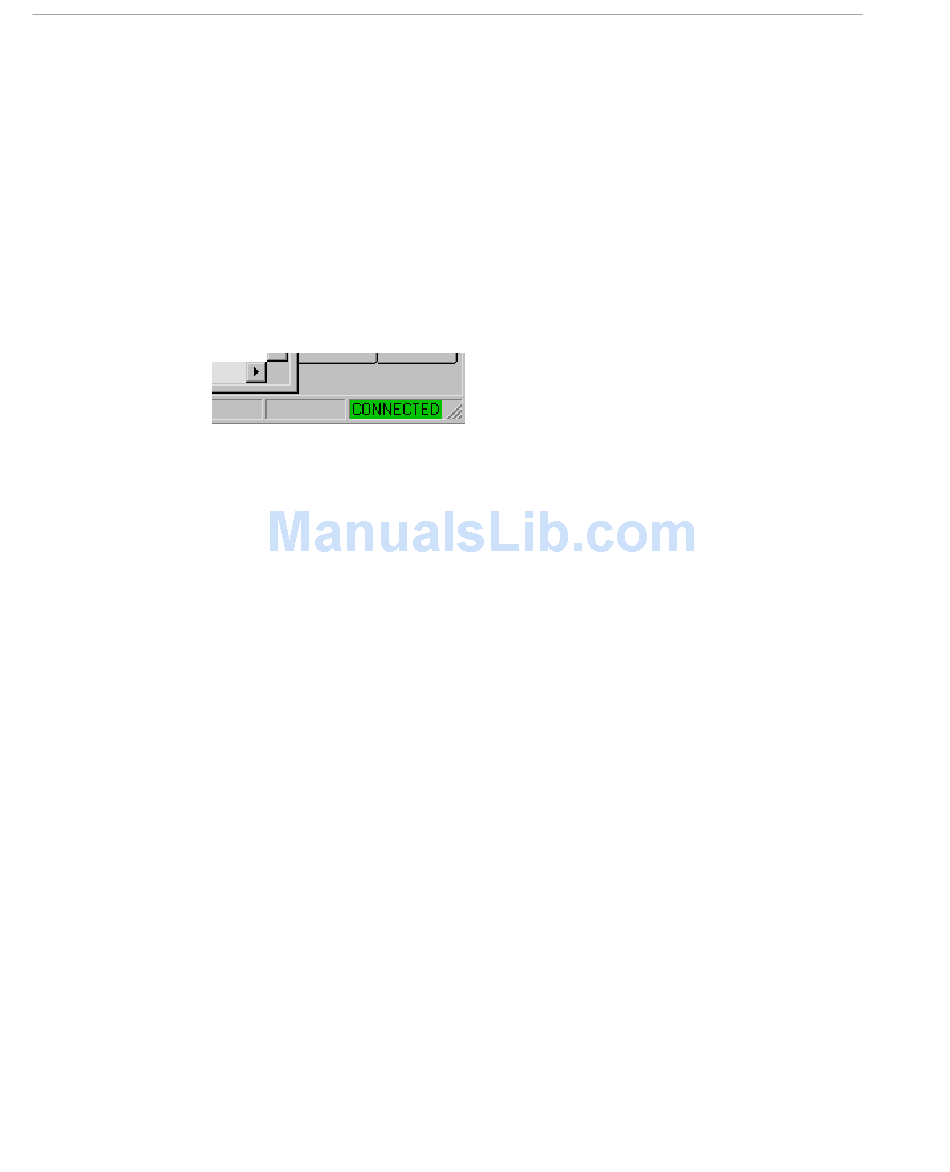

When connected, the CONNECTED message will appear in a green box in the status bar on
the bottom right of the dialog.
Tip: If connection fails, enable a different Com port and try again.
Tip: If you do not see either the CONNECTED or DISCONNECTED message at the bot-
tom of your dialog, try expanding the ESP window horizontally.
1-6
MS-9 Scanner User's Manual
button.
