Calibration Data
Calibration Data

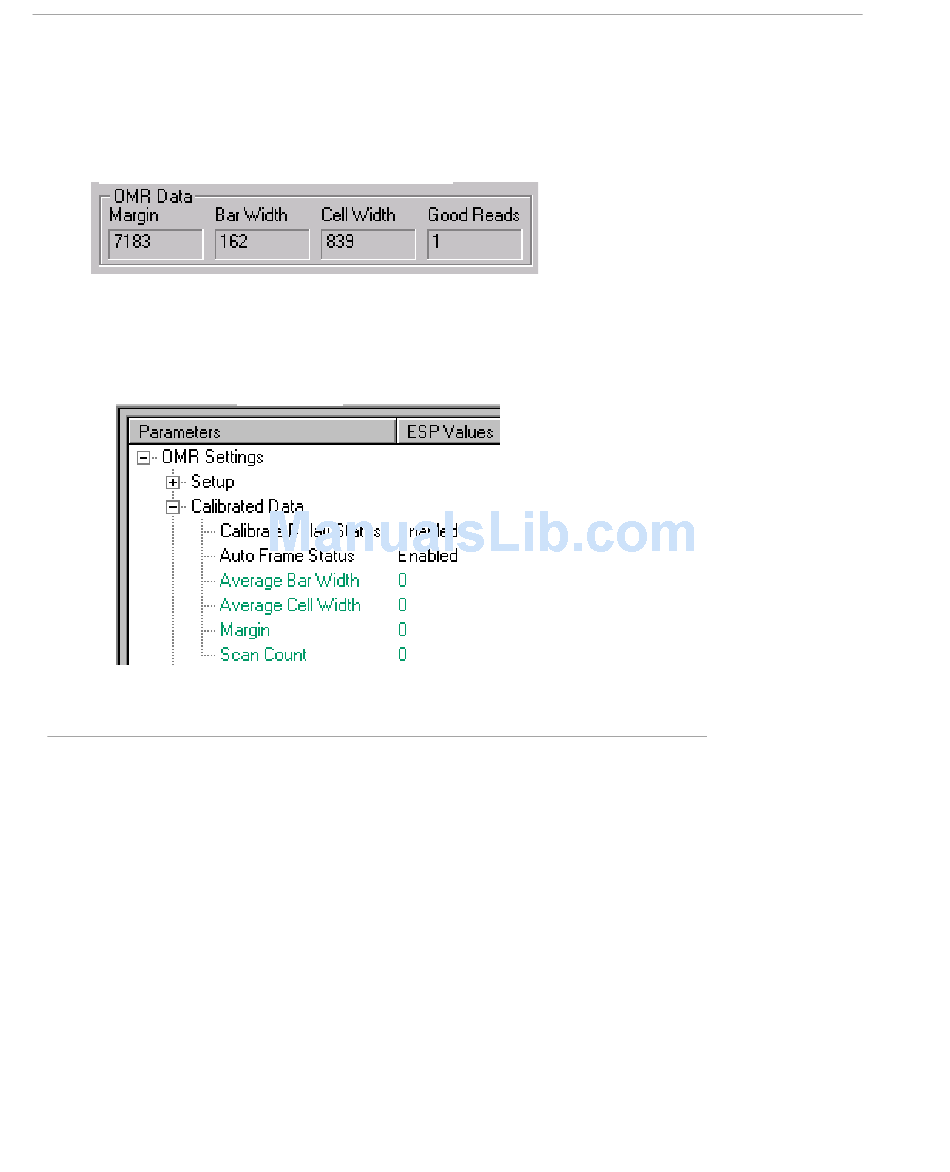

Following a static or dynamic test, see the
Width, Cell Width, and Good Reads.
The bottom window presents the current triggered data. This serves to give you an idea
of consistency and variations.
You can also switch between Binary and Hexidecimal presentation of decoded data.
See and adjust calibration parameters in the Calibrated Data section of the OMR menu.
Calibrate Delay Status
Definition:
When Calibrate Delay Status is enabled, the scanner will attempt to set
the delay time (or pulse) automatically.
Usage:
This is useful if your symbols arrive at irregular times.
Serial Cmd:
<KPcalibrate delay
width,leading margin,scan count value>
Default:
Enabled
Options:
0 = Disabled
7-12
MS-9 Scanner User's Manual
OMR DATA
status,auto frame status,avg bar width,avg cell
1 = Enabled
area to view Margin, Bar
