Enter Master Symbol Data - Microscan MS-9 User Manual

Master Database

Enter Master Symbol Data

Definition: Allows you to enter master symbol data for a specific master symbol
index number (1 to 10) provided the index number is not larger than the
number of symbols enabled by the Master Symbol Database Size (see
page
2, you will not be able to enter data for symbols 3 through 10.

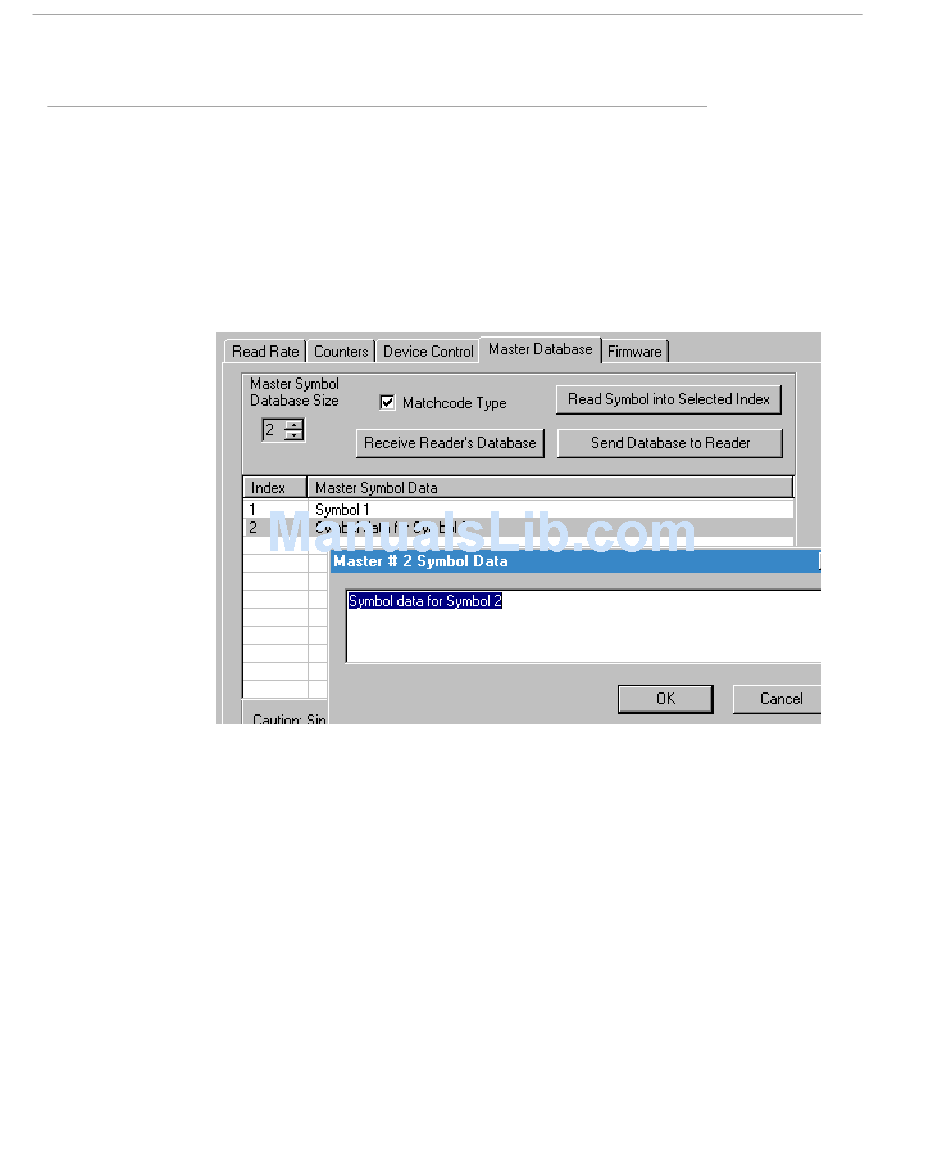

ESP: 1. Set the number of master symbols you want to create in
2.
3. Copy or type data into the Master Symbol dialog box and click OK.
4. Click
Serial Cmd: <Mmaster symbol number,master symbol
Default:
1
Options: 1 to 10 (any combination of ASCII text up to the maximum in
For example, to enter data for master symbol 9, after making certain that
master symbol database size is enabled for 9 or more symbols, send
<M9,data>.
Caution: Since the total number of characters available for the master symbol data-
base is 2710204564, changes to the Master Symbol Database Size will re-allocate
the number of characters available for each master symbol and could cause existing
master symbols to be deleted (except master symbol #1 unless it also exceeds the size
limitation).
specifies the maximum number of characters available to each symbol
Table 12-2
according to the number of master symbols defined, from 1 through 10.
12-12
MS-9 Scanner User's Manual
12-11). For example, if Master Symbol Database Size is set to
Symbol Database
in the row of the index number you want to setup.
Double-click
Send Database to Scanner
Size.
to save to the scanner.
Master
data>
Table 12-2).
