Step 4 Select Scanner Model - Microscan MS-9 User Manual

Step 4 — Select Scanner Model
When you start the program, the following menu will appear:
Note: If you need to select another model later, you can find it in the App Mode under
Model on the menu bar.
1. In the Model dialog box, select your model.
If you do not want to make this selection every time you load ESP, uncheck Show
this window at Startup.
2. Select the default name, for example MS-9-1, or type in a file name of your
choice and click

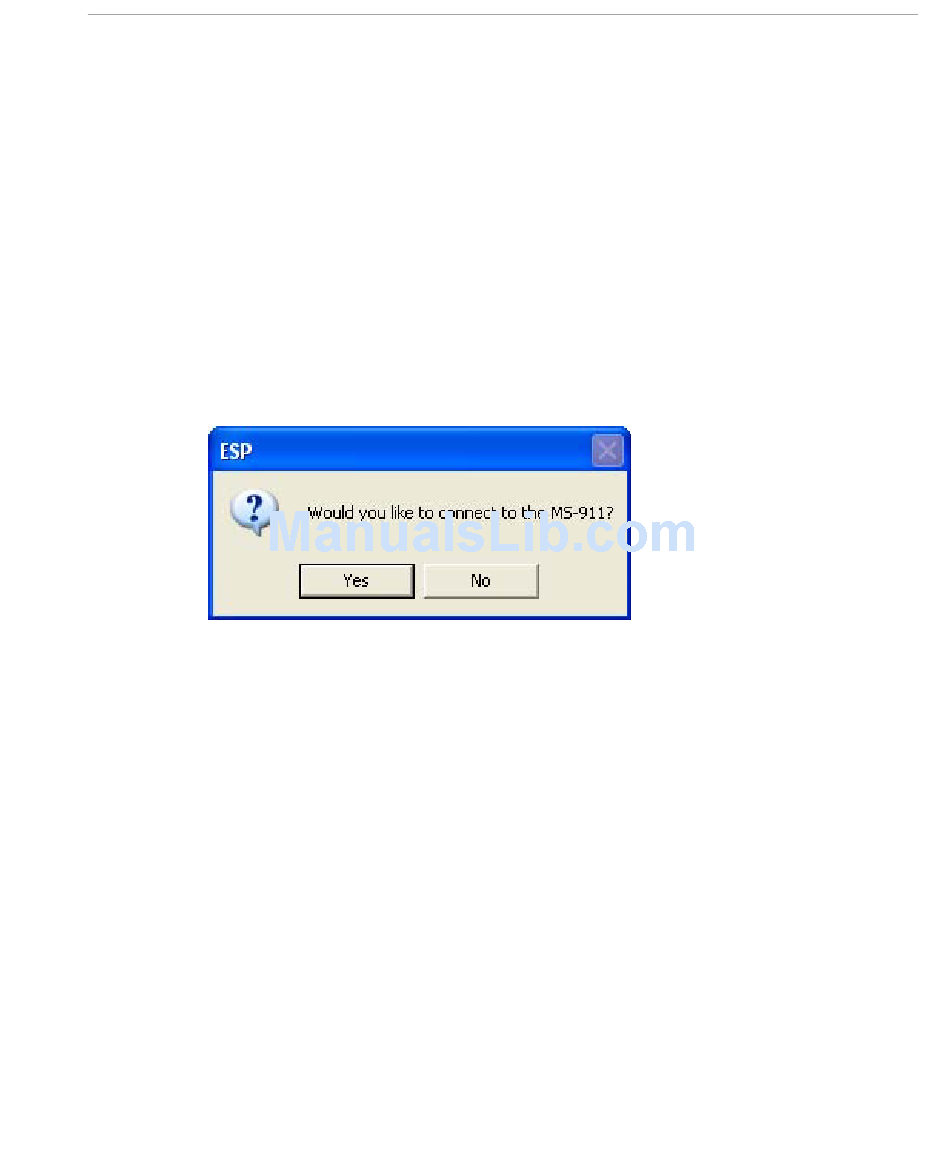

3. Click when the connect to the scanner dialog appears.
Yes
OK.
Chapter Quick Start
MS-9 Scanner User's Manual
1-5
