8

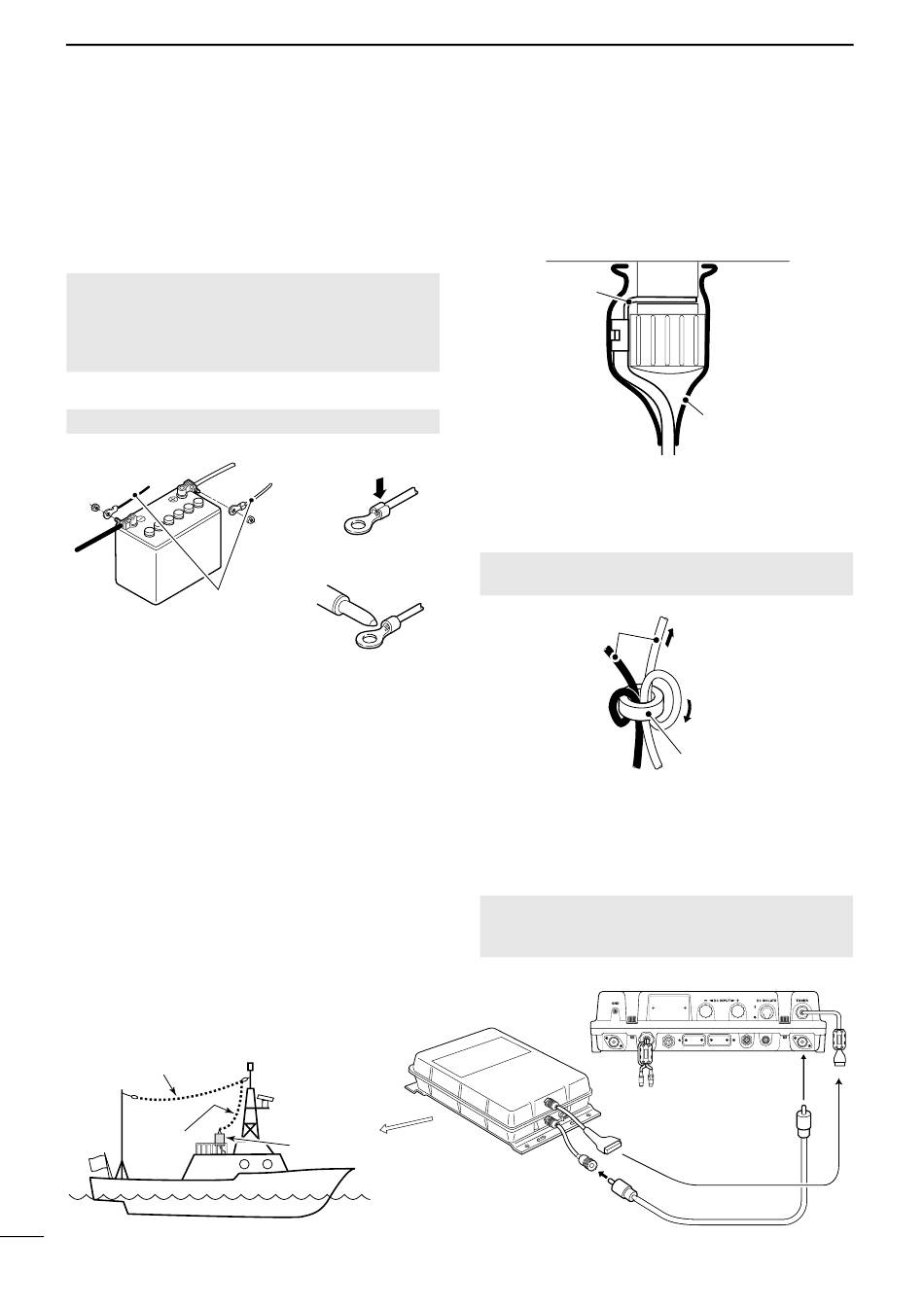

CONNECTIONS AND INSTALLATION
■ Power source
The transceiver requires a regulated DC power of
13.6 V and at least 60 A or 26.4 V and at least 30 A,
depending on the transceiver version.
Directly connect to a 12 V or 24 V battery in your
vessel through the supplied DC power cable.
CAUTION:
• DO NOT reverse the DC power cable polarity.
This could damage the transceiver.
• BE SURE to use a 12 V or 24 V battery,
depending on the transceiver version.
DC power cable connection
NOTE: Use terminals for the cable connection.
_
Black
Supplied
DC power cable
12 V or 24 V
battery
■ Antenna
Most stations operate with a whip or long wire antenna.
However, these antennas cannot be connected directly
to the transceiver because their impedance may not
match the transceiver antenna connector.
Horizontal element
Vertical
element
65
Crimp
+
Red
or
Solder
AT-141
Antenna
tuner
Attaching the weatherproof cap
Attach the supplied weatherproof cap for each positive
and negative line at the DC power terminal, as shown
below.
Bend the lug
90 degrees
Attaching the Ferrite EMI filter
Connect the DC power cables to the transceiver's
main unit through the supplied Ferrite EMI filter, as
shown below.
NOTE: Place the Ferrite EMI filter as close to the
main unit as possible.
DC power cables
For details about antenna connections and
installation, see the supplied AT-141 Instruction
manual.
R DANGER HIGH RF VOLTAGE! NEVER touch
an antenna while transmitting. It may result in an
electrical shock or burn.
AT-141
Weatherproof cap
Ferrite EMI filter
