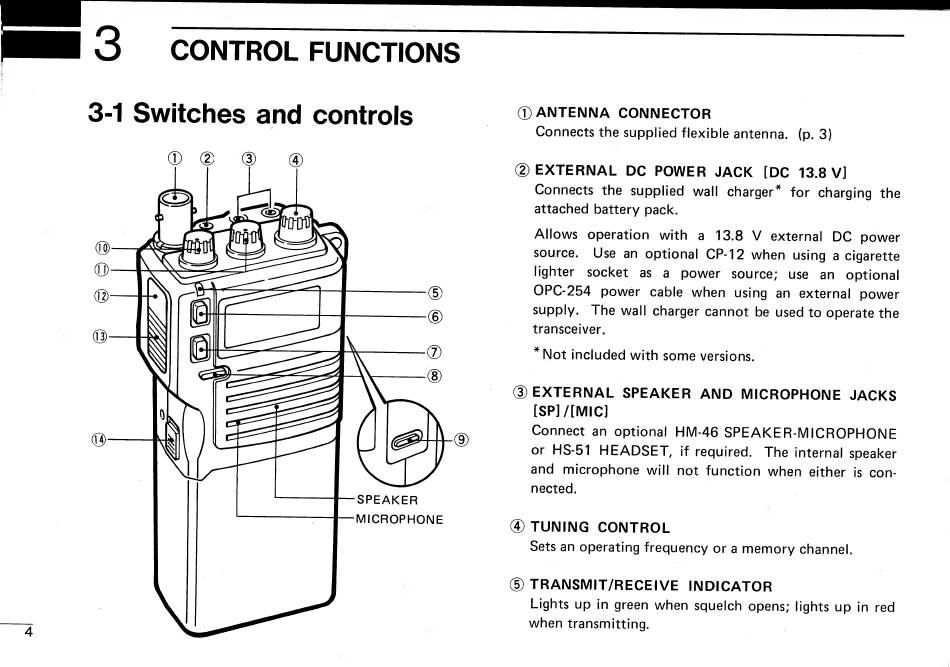

CONTROL FUNCTIONS
3
mae
Bees
SPEAKER
MICROPHONE
|
N
@ ANTENNA
CONNECTOR
Connects the supplied flexible antenna.
(p. 3)
*Not included with some versions.
@ TUNING CONTROL
Sets an operating frequency or a memory channel.
6) TRANSMIT/RECEIVE
INDICATOR
Lights up in green when squelch opens; lights up in red
when transmitting.
