Memory Channel Number; Antenna Connector - Icom IC-28H Instruction Manual

©) MEMORY CHANNEL
NUMBER
02 MEMORY MODE
INDICATOR "М"
03MEMORY CHANNEL
SKIP INDICATOR "5КЇР"
Q9 S/RF INDICATOR
ө LOW power : 5 segments appear
е HIGH power : АП segments appear
05 TUNING STEP INDICATOR
"TS"
00) OUTPUT POWER
INDICATOR "LOW"

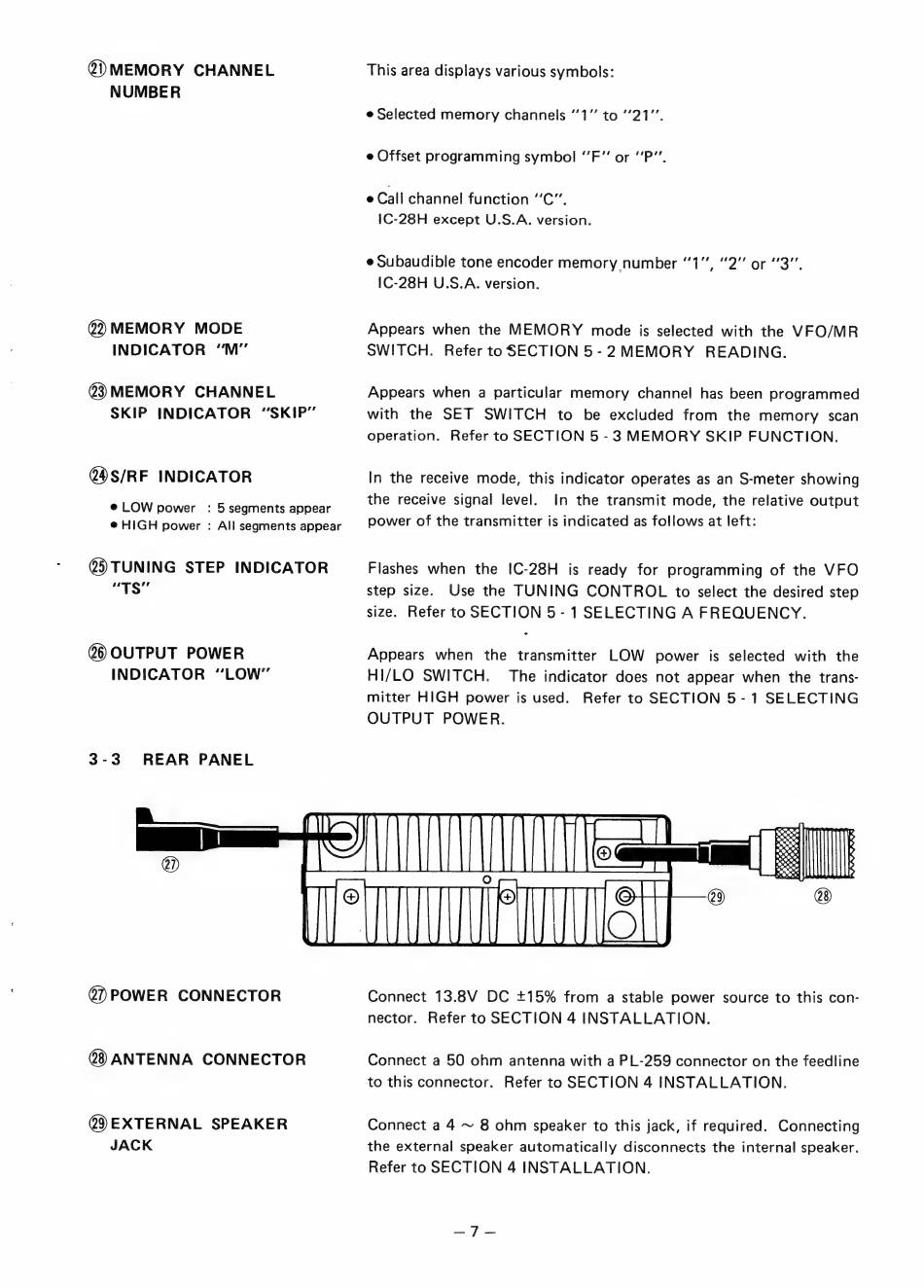

3-3 REAR PANEL
This area displays various symbols:
e Selected memory channels "1" 10:21".
e Offset programming symbol "Е" or "Р",
e Call channel function "C".
1С-28Н except U.S.A. version.
e Subaudible tone encoder memory number "1", "2" or "3".
IC-28H U.S.A. version.
Appears when a particular memory channel has been programmed
with the SET SWITCH to be excluded from the memory scan
operation. Refer to SECTION 5- 3 MEMORY SKIP FUNCTION.
In the receive mode, this indicator operates as an S-meter showing
the receive signal level. In the transmit mode, the relative output
power of the transmitter is indicated as follows at left:
Flashes when the 1С-28Н is ready for programming of the VFO
step size. Use the TUNING CONTROL to select the desired step
size. Refer to SECTION 5- 1 SELECTING A FREQUENCY.
Appears when the transmitter LOW power is selected with the
HI/LO SWITCH. The indicator does not appear when the trans-
mitter HIGH power is used. Refer to SECTION 5- 1 SELECTING
OUTPUT POWER.
0? POWER CONNECTOR
08 ANTENNA CONNECTOR
Q9 EXTERNAL SPEAKER
JACK
Connect 13.8V DC +15% from a stable power source to this con-
nector. Refer to SECTION 4 INSTALLATION.
Connect a 50 ohm antenna with a PL-259 connector on the feedline
to this connector. Refer to SECTION 4 INSTALLATION.
Connect a 4 — 8 ohm speaker to this jack, if required. Connecting
the external speaker automatically disconnects the internal speaker.
Refer to SECTION 4 INSTALLATION.
