Removing The Bluetooth Module - EUROCOM M770CU Service Manual

Removing the Bluetooth Module

1. Turn off the computer, remove the battery
optical device (page 2 - 9), CPU
2. Locate the Bluetooth module, and remove the screw
3. Carefully separate the Bluetooth module from the connector
4. Lift the Bluetooth module
4
a.
b.
(page 2 - 5), HDD (page 2 -
(page 2 - 15), and keyboard
.
1
2
( )
Figure 17c up and off the computer.
2
3
1
4
6), component bay cover
(page 2 - 19).
and disconnect the cable .
3
Removing the Bluetooth Module 2 - 21
Disassembly

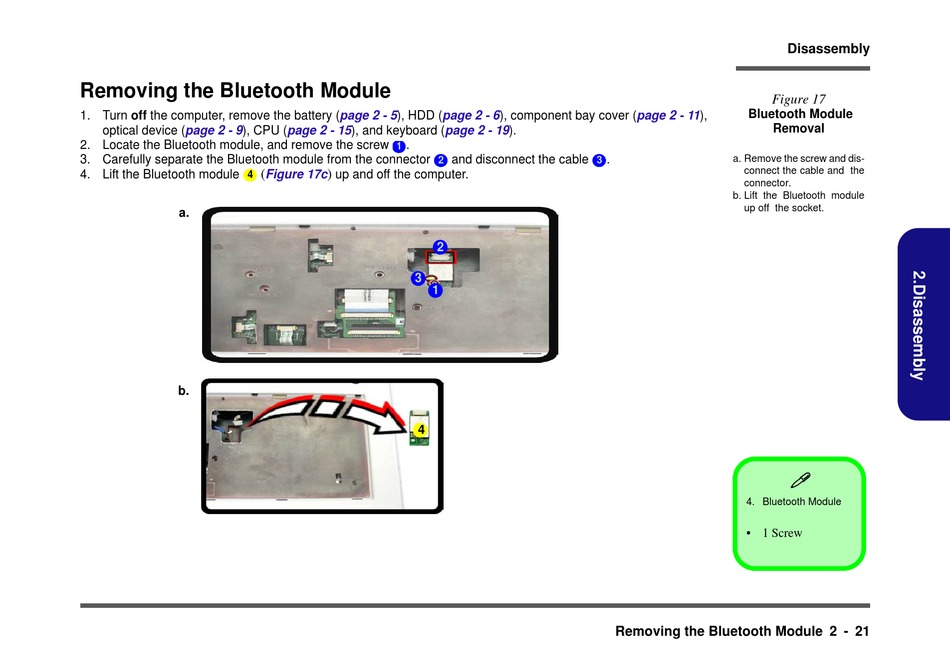

Figure 17
Bluetooth Module
(page 2 - 11),
Removal
a. Remove the screw and dis-
connect the cable and the
connector.
b. Lift the Bluetooth module
up off the socket.

4. Bluetooth Module
• 1 Screw
