Removing The 3.75G Module - EUROCOM M770CU Service Manual

Disassembly

Removing the 3.75G Module

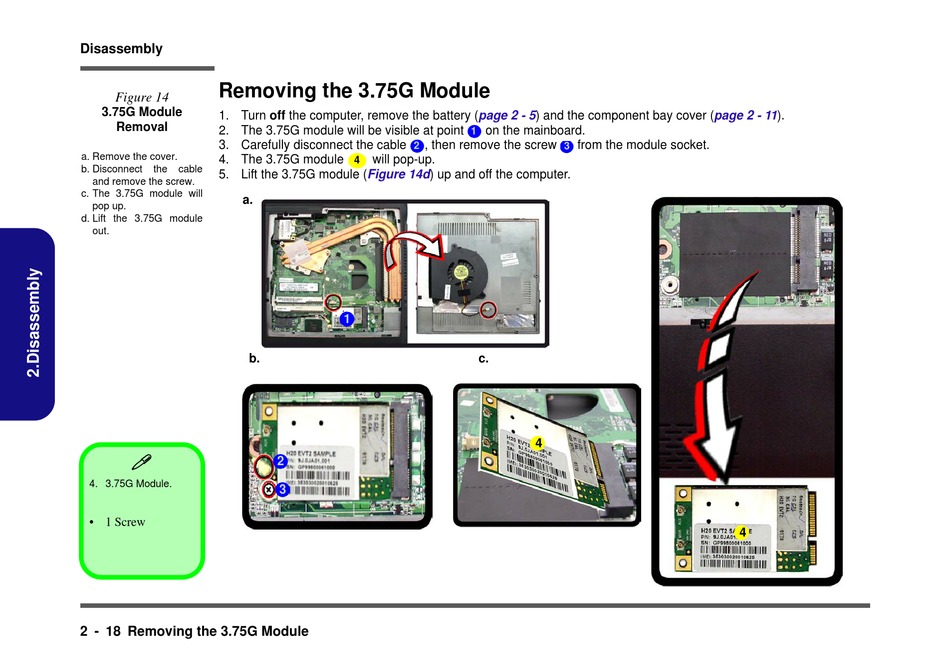

Figure 14
3.75G Module
1. Turn off the computer, remove the battery
Removal
2. The 3.75G module will be visible at point
3. Carefully disconnect the cable
a. Remove the cover.
4. The 3.75G module
b. Disconnect the cable
5. Lift the 3.75G module
and remove the screw.
c. The 3.75G module will
a.
pop up.
d. Lift the 3.75G module
out.
b.

4. 3.75G Module.
• 1 Screw
2 - 18 Removing the 3.75G Module
, then remove the screw
2
will pop-up.
4
(Figure 14d) up and off the computer.
1
2
3
(page 2 - 5) and the component bay cover
on the mainboard.
1
from the module socket.
3
c.
4
(page 2 - 11) .
d.
4
