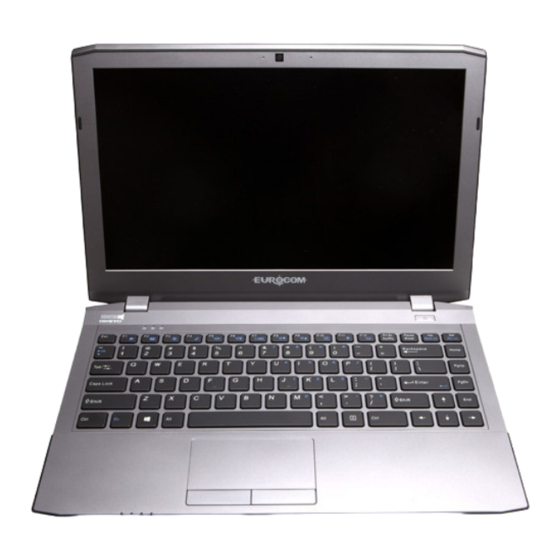

EUROCOM M4 User Manual
  1. Manuals
  2. Brands
  3. EUROCOM Manuals
  4. Laptop
  5. M4
  6. User manual

EUROCOM M4 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
M 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EUROCOM M4

Summary of Contents for EUROCOM M4

  • Page 3 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

  • Page 4: Erp Off Mode Power Consumption Statement

    Preface R&TTE Directive This device is in compliance with the essential requirements and other relevant provisions of the R&TTE Direc- tive 1999/5/EC. This device will be sold in the following EEA countries: Austria, Italy, Belgium, Liechtenstein, Denmark, Lux- embourg, Finland, Netherlands, France, Norway, Germany, Portugal, Greece, Spain, Iceland, Sweden, Ireland, United Kingdom, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Slovakia, Poland, Slov- enia.
  • Page 5 Preface CE Marking This device has been tested to and conforms to the regulatory requirements of the European Union and has at- tained CE Marking. The CE Mark is a conformity marking consisting of the letters “CE”. The CE Mark applies to products regulated by certain European health, safety and environmental protection legislation.

  • Page 6: Fcc Statement

    Preface FCC Statement (Federal Communications Commission) You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 7 Preface FCC Statement (Federal Communications Commission) You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 8: Fcc Rf Radiation Exposure Statement

    Preface FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

  • Page 9: Important Safety Instructions

    Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment: Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

  • Page 10: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...
  • Page 11 Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work.

  • Page 12: Power Safety

    Preface Power Safety The computer has specific power requirements:  •Only use a power adapter approved for use with this computer. •Your AC/DC adapter may be designed for international travel but it still requires a steady, Power Safety uninterrupted power supply. If you are unsure of your local power specifications, consult Warning your service representative or local power company.

  • Page 13: Polymer Battery Precautions

    Preface Polymer Battery Precautions Note the following information which is specific to polymer batteries only, and where applicable, this overrides the general battery precaution information overleaf. • Polymer batteries may experience a slight expansion or swelling, however this is part of the battery’s safety mecha- nism and is not a cause for concern.

  • Page 14: General Battery Precautions

    Preface General Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not remove any batteries from the computer while it is powered on. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

  • Page 15: Cleaning

    Preface Cleaning Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer. Servicing Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock.

  • Page 16: Travel Considerations

    Preface Travel Considerations Packing As you get ready for your trip, run through this list to make sure the system is ready to go: Check that the battery pack and any spares are fully charged. Power off the computer and peripherals. Close the display panel and make sure it’s latched.
  • Page 17 Preface On the Road In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind: Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common.
  • Page 18 Preface Developing Good Work Habits Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints.

  • Page 19: Lcd Screen Care

    Preface Lighting Proper lighting and a comfortable viewing angle can reduce eye strain and shoulder and neck muscle fatigue. • Position the display to avoid glare or reflections from overhead lighting or outside sources of light. • Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly. •...
  • Page 20 Preface XVIII...

  • Page 21: Table Of Contents

    Preface Contents Notice ................................I ErP Off Mode Power Consumption Statement: ................... II FCC Statement ............................IV FCC Statement ............................. V FCC RF Radiation Exposure Statement: ....................VI Instructions for Care and Operation ......................VIII Power Safety ..............................X Polymer Battery Precautions ........................XI General Battery Precautions ........................
  • Page 22 Preface System Map: LCD Panel Open ........................1-6 LED Indicators ............................1-7 Keyboard ..............................1-8 Keyboard Shortcuts ...........................1-9 Function Keys & Visual Indicators ......................1-10 Control Center ............................1-11 System Map: Front & Left Views ......................1-12 System Map: Right & Rear Views ......................1-13 System Map: Bottom View ........................1-14 Windows 8.1 Control Panel ........................1-15 Windows 8.1 Start Screen &...
  • Page 23 Preface Hard Disk Drive ............................2-2 Multi-in-1 Card Reader ..........................2-3 Audio Features ............................2-4 Touchpad and Buttons/Mouse ........................2-6 Gestures and Device Settings ........................2-7 Power Management Overview ..............................3-1 The Power Sources ............................3-2 AC/DC Adapter ............................3-2 Battery ................................3-2 Turning On the Computer ..........................3-3 Shutting the Computer Down ........................3-4 Power Plans ...............................3-5 Power-Saving States ..........................3-7 Sleep ................................3-7...
  • Page 24 Preface Battery Power ............................3-14 Conserving Battery Power ........................3-15 Battery Life ..............................3-16 New Battery .............................3-16 Recharging the Battery with the AC/DC Adapter ...................3-16 Proper handling of the Battery Pack ......................3-17 Battery FAQ .............................3-18 Drivers & Utilities What to Install ............................4-1 Module Driver Installation ........................4-1 Driver Installation ............................4-2 Updating/Reinstalling Individual Drivers ....................4-4 User Account Control ..........................4-5...
  • Page 25 Preface TouchPad ..............................4-6 Hot Key ..............................4-7 Airplane ..............................4-7 MEI Driver ..............................4-7 Audio .................................4-7 Optional Drivers ............................4-8 BIOS Utilities Overview ..............................5-1 The Setup Utility ............................5-2 Failing the POST ............................5-3 Fatal Errors ..............................5-3 Non-Fatal Errors ............................5-3 Setup Screens .............................5-4 Main Menu ..............................5-5 Advanced Menu ............................5-7 Security Menu ............................5-10 Boot Menu ...............................5-12...
  • Page 26 Preface Removing the Battery ..........................6-4 Inserting the Battery ..........................6-5 Removing the Component Bay Cover .......................6-6 Replacing the Component Bay Cover .......................6-8 Upgrading the Hard Disk Drive(s) ......................6-9 Upgrading the System Memory (RAM) ....................6-12 Modules Overview ..............................7-1 Setting Up SATA RAID or AHCI Mode ....................7-2 AHCI Mode ...............................7-2 RAID ................................7-2 Intel®...
  • Page 27 Preface Wireless LAN Module ..........................7-21 3rd Party 802.11b/g/n Driver Installation ....................7-22 Intel® WLAN Driver Installation ......................7-22 WLAN Configuration in Windows ......................7-23 Bluetooth & WLAN Combo Module ......................7-26 3rd Party Bluetooth (V4.0) Combo Driver Installation ................7-27 Intel Bluetooth Combo Driver Installation ....................7-27 Bluetooth Configuration in Windows ......................7-28 Intel®...
  • Page 28 Preface Trusted Platform Module .........................7-53 Enabling & Activating TPM ........................7-54 Trusted Platform Module (TPM) Driver Installation ................7-56 Initializing TPM ............................7-57 Infineon Security Platform Settings Tool ....................7-59 Wireless Display ............................7-67 Wireless Display Configuration ......................7-68 3G Module ...............................7-71 3G Configuration in Windows .........................7-73 EM820W 3G Module PIN Code &...
  • Page 29 Preface Ports and Jacks ............................A-2 Control Center Overview ..............................B-1 Video Driver Controls Video Driver Installation ..........................C-1 Video (VGA) ............................C-1 NVIDIA Video (VGA) ..........................C-1 Microsoft Hybrid Graphics ........................C-2 Intel® Dynamic Video Memory Technology ...................C-4 Intel® HD Graphics Control Panel ......................C-5 Display Devices & Options ........................C-19 Attaching Other Displays ........................C-20 Attaching Other Displays - Devices (Charms Bar) ................C-23 Configuring an External Display In Windows ..................C-24...
  • Page 30 Preface Core Logic ..............................D-2 Memory ..............................D-2 Display ..............................D-2 Video Adapter Options ..........................D-2 Storage ..............................D-3 Audio ................................D-3 Keyboard & Pointing Device ........................D-3 Interface ..............................D-3 Card Reader ..............................D-3 Slots ................................D-3 Communication ............................D-3 BIOS .................................D-4 Security ..............................D-4 Operating System ............................D-4 Features ..............................D-4 Indicators ..............................D-4 Power ................................D-4 Power Management ..........................D-4 Environmental Spec ..........................D-4...

  • Page 31: Quick Start Guide Overview

    Quick Start Guide Chapter 1: Quick Start Guide Overview This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following: •...

  • Page 32: Advanced Users

    Quick Start Guide Advanced Users If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to “Drivers & Utilities” on page 4 - “BIOS Utilities” on page 5 - 1 “Upgrading The Computer”...

  • Page 33: Not Included

    Quick Start Guide Not Included Operating Systems (e.g. Windows 8.1) and applications (e.g. word processing, spreadsheet and database pro- grams) have their own manuals, so please consult the appropriate manuals.  Drivers If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the appropriate drivers.

  • Page 34: System Software

    Quick Start Guide System Software Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find the Windows 8.1 (64-bit) operating system is supported.

  • Page 35: System Startup

    Quick Start Guide System Startup Remove all packing materials, and place the computer on a stable surface. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports. Make sure the battery is inserted and locked in position. Attach the AC/DC adapter to the DC-In jack on the right of the computer, then plug the AC power cord into an outlet, and connect the AC power cord to the AC/DC adapter (make sure you use the adapter when first setting up the computer, as to safeguard the computer during shipping the battery will be locked to not power...

  • Page 36: System Map: Lcd Panel Open

    Quick Start Guide System Map: LCD Panel Open Figure 1 - 2 LCD Panel Open  Built-In PC Cam- Wireless Device Operation Aboard PC Camera LED Aircraft Built-In Microphone The use of any portable electronic transmission Power Button devices aboard aircraft LED Indicators usually prohibited.

  • Page 37: Led Indicators

    Quick Start Guide LED Indicators Icon Color Description The LED indicators on the top case and front of the Orange AC/DC Power is Plugged In computer display helpful information about the cur- Green The Computer is On rent status of the computer. Blinking The Computer is in Sleep Mode Icon...

  • Page 38: Keyboard

    Quick Start Guide Keyboard  The illuminated keyboard has an embedded numerical keypad for easy numeric data Other Keyboards input, and function keys to change operational features instantly. The keyboard illu- mination level may be adjusted, or turned off/on, by using the Fn + F12 keys. If your keyboard is dam- aged or you just want to make a change, you can...

  • Page 39: Keyboard Shortcuts

    Quick Start Guide Keyboard Shortcuts  The following Windows Logo Key (Winkey) keyboard shortcuts are useful for navi- gation/operation in Windows 8.1. Windows Logo Keyboard Shortcut Windows Logo Description Use the Windows logo Key + + D key com- bination to switch be- Toggle between the Start screen and the foremost running app or the tween the Start screen Tap Winkey...

  • Page 40: Function Keys & Visual Indicators

    Quick Start Guide Function Keys & Visual Indicators The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. Visual in- dicators (see the table below) are available when the Hot Key driver is installed. Keys Function/Visual Indicators Keys...

  • Page 41: Control Center

    Quick Start Guide Control Center When in the Windows Desktop application (not in the Start screen) press the Fn + Esc key combination, or double-click the icon in the notification area of the taskbar to toggle the Control Center on/off. The Con- trol Center gives quick access to frequently used controls and enables you to quickly turn the camera/touch pad on/off (see Appendix B...

  • Page 42: System Map: Front & Left Views

    Quick Start Guide System Map: Front & Left Views Figure 1 - 5 Front & Left Views 1. LED Indicators 2. Vent/Fan Intake 3. Multi-In-1 Card Reader 4. USB 2.0 Port 5. Headphone-Out Jack 6. Microphone-In  Jack Multi-In-1 Card Reader The card reader allows you to use the most popular digital storage card formats: ...

  • Page 43: System Map: Right & Rear Views

    Quick Start Guide System Map: Right & Rear Views Figure 1 - 6 Right & Rear Views 1. 1 * Powered (AC/ DC) USB 3.0 Port 2. 2 * USB 3.0 Ports 3. HDMI-Out Port 4. External Monitor Port 5. RJ-45 LAN Jack 6.

  • Page 44: System Map: Bottom View

    Quick Start Guide System Map: Bottom View Figure 1 - 7 Bottom View 1. Battery 2. Speakers 3. Fan Outlet/Intake 4. Component Bay Cover  Battery Information Always completely dis- charge, then fully charge, a new battery before using it. Com- pletely discharge and ...

  • Page 45: Windows 8.1 Control Panel

    Quick Start Guide Windows 8.1 Control Panel  Throughout this manual you will see an instruction to open the Control Panel. Windows Versions R ight-click the lower left hot corner to bring up the context menu (or use the Win- + X key combination) and select Control Panel in both the dows Logo Key Note that the informa-...
  • Page 46 Quick Start Guide Right-click the Start button in the Desktop app (or use the Windows Logo Key  + X key combination) to bring up an advanced context menu of useful features such as Control Panel, Programs and Features, Power Options, Task Manager, Display Most Search, File Explorer, Command Prompt, Device Manager and Network Connec- Recently Used...
  • Page 47 Quick Start Guide The Control Panel can be accessed in a number of ways in Windows 8.1. • Click Search in the Windows Charms Bar (see previous page) and the search pane will pop out. Type Control Panel and select it from the results to the left. Figure 1 - 10 - Search (Control Panel) •...
  • Page 48 Quick Start Guide • When in the Desktop app (this does not apply to the Start screen) click on Settings in the Windows Charms Bar and select Control Panel from the menu. Figure 1 - 12 - Settings Charms Bar (Desktop App Only) •...
  • Page 49 Quick Start Guide • Right-click the Start button bring up the menu and select Control Panel (see Figure 1 - 9 on page 1 - 16).  Keyboard Shortcut to Control Panel You can also use keyboard shortcuts to access the Control Panel. Press the Windows logo key and X to bring up the context menu, and then press P to bring up the Control Panel.

  • Page 50: Windows 8.1 Start Screen & Desktop

    Quick Start Guide Windows 8.1 Start Screen & Desktop The Apps, control panels, utilities and programs within Windows are accessed from the Start screen and/or Windows Desktop app. The Desktop (which runs as an app within the Start screen) can be accessed by clicking the Desktop item in the Start screen (or by using the Windows Logo Key + D key combination).

  • Page 51: Apps & Tiles

    Quick Start Guide Apps & Tiles The Start screen will contain a number of apps, and many more will be installed as you add more applications etc. Not all of these apps can fit on one screen so you will often need use the slider at the bottom of the screen in order to view all the necessary Apps.

  • Page 52: Desktop Application

    Quick Start Guide Desktop Application When the Desktop app is running (click the app in the Start screen or use the Windows Logo Key + D key combination) you can use lower left hot corner to switch between the Start screen and the Windows Desktop app.

  • Page 53: The Charms Bar

    Quick Start Guide The Charms Bar The right side of the screen displays the Charms Bar. The Charms Bar contains the Search, Share, Start, De- vices and Settings menus. To access up the Charms Bar move the cursor to the upper or lower right corners of the screen, and then hover over one of the items in the Charms Bar to activate it (the bar will be black when it is active), or use the Windows Logo Key + C key combination.
  • Page 54 Quick Start Guide Charms Bar Items • Search : You can search for any file, application, Apps and control panel settings with instantaneous results. • Share : This button is used to share information with people via mail or social networks. •...

  • Page 55: Windows 8.1 Taskbar

    Quick Start Guide Windows 8.1 Taskbar In many instances throughout this manual you will see an instruction to access the notification area of the task- bar (system tray). In Windows 8.1 the taskbar is accessed from the Desktop application; if you are in the Start screen you will need to switch to the Desktop.

  • Page 56: Video Features

    Quick Start Guide Video Features Microsoft Hybrid Graphics Microsoft Hybrid Graphics is a seamless technology designed to get best performance from the graphics sys- tem while allowing longer battery life, without having to manually change settings. The computer will automat- ically switch between the integrated UMA (Unified Memory Architecture) GPU (iGPU) and the discrete GPU (dGPU) when required by the applications in use.
  • Page 57 Quick Start Guide To access Display (Control Panel) and Screen Resolution in Windows: Go to the Control Panel. Click Display (icon) - In the Appearance and Personalization category. Adjust resolution.  Right-Click Desktop App 1. You can right-click the desktop and select Screen resolution (Figure 1 - 21).
  • Page 58 Quick Start Guide To access the Intel(R) HD Graphics Control Panel: Click Advanced settings (Figure 1 - 21 on page 1 - 27) in the Screen Resolution control panel in Win- dows. Click the Intel(R)... tab and click Graphics Properties (button) (Figure 1 - 22 on page 1 - 28) .
  • Page 59 Quick Start Guide To access the NVIDIA Control Panel: Right-click the desktop and select NVIDIA Control Panel (Figure 1 - 23). Double-click the icon (Figure 1 - 23) in the Windows control panel. Figure 1 - 23 - NVIDIA Control Panel Video Features 1 - 29...

  • Page 60: Power Options

    Quick Start Guide Power Options Power Options (Hardware and Sound) can be accessed from the Control Panel. The Power Menu item in Set- tings in the Charms Bar in Windows 8.1 may be used to Shut down or Restart (you can also add Hibernate/ Sleep to the menu - see “Adding Hibernate/Sleep to the Power Menu”...

  • Page 61: Running Apps

    Quick Start Guide Running Apps To run apps in Windows 8.1 you will need to check that the Screen Resolution and User Account Control Set- tings are compatible with the system requirements. Screen Resolution Settings Switch to the Windows Desktop (click the app or use the Windows logo key + D key combination).
  • Page 62 Quick Start Guide User Account Control Settings If your computer meets the minimum screen resolution requirements, and still you can't run apps, then that you have to check the status of User Account Control (UAC). Apps may fail to open when the UAC is turned off. To check whether the UAC is on or off, follow the instructions below.

  • Page 63: Storage Devices, Audio & Mouse Overview

    Storage Devices, Audio & Mouse Chapter 2: Storage Devices, Audio & Mouse Overview Read this chapter to learn more about the following main features and components of the computer: • Hard Disk Drive • Multi-in-1 Card Reader • Audio Features •...

  • Page 64: Hard Disk Drive

    Storage Devices, Audio & Mouse Hard Disk Drive  The hard disk drive(s) is(are) used to store your data in the computer. The hard Power Safety disk(s) can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5 mm or 7mm.

  • Page 65: Multi-In-1 Card Reader

    Storage Devices, Audio & Mouse Multi-in-1 Card Reader  The card reader allows you to use some of the latest digital storage cards. Push the Push-Push Card card into the slot and it will appear as a removable device, and can be accessed in Reader the same way as your hard disk (s).

  • Page 66: Audio Features

    Storage Devices, Audio & Mouse Audio Features  You can configure the audio options on your computer from the Sound control Sound Volume panel in Windows, from the HD VDeck icon on the desktop or VIA HD Audio Adjustment Deck control panel The sound volume level is set using the volume The volume may also be adjusted by means of the Fn + F5/F6 key combination.
  • Page 67 Storage Devices, Audio & Mouse Expert Mode will allow you to access more advanced configuration menus for  Speaker and Microphone. Syncing Left & Right Volume Balance If you wish to adjust the left and right channel volume levels separately, you will need to adjust this from the VIA HD Audio Deck in Ex- pert Mode.

  • Page 68: Touchpad And Buttons/Mouse

    Storage Devices, Audio & Mouse Touchpad and Buttons/Mouse  The Touchpad is an alternative to the mouse; however, you can also add a mouse to Touchpad Scrolling your computer through one of the USB ports. The Touchpad buttons function in This computer model se- much the same way as a two-button mouse.

  • Page 69: Gestures And Device Settings

    Storage Devices, Audio & Mouse Gestures and Device Settings  The Synaptics Gestures Suite application allows you to use a specific gesture (ac- tion) on the surface of the Touchpad to perform specific actions to manipulate doc- Show Video uments, objects and applications. You can get a clearer view of the gestures in- You can configure the settings from the Device Settings tab in Mouse Properties:...
  • Page 70 Storage Devices, Audio & Mouse Disabling the Touchpad If you need to disable the Touchpad for any reason (e.g. you may find that when us- ing the computer’s internal keyboard you accidentally trigger the Touchpad when resting your wrists or palms on it) you can do so by using Fn + F1 key combination. You can also set the system to automatically disable the internal Touchpad when an external USB point device (e.g.
  • Page 71 Storage Devices, Audio & Mouse Scrolling The Two-Finger scrolling feature works in most scrollable windows and allows you to scroll horizontally and vertically. Place two fingers, slightly separated, on the Touchpad surface and slide both fingers in the direction required (in a straight con- Figure 2 - 8 tinuous motion).
  • Page 72 Storage Devices, Audio & Mouse Rotating Use the Pivot Rotate gesture to rotate objects (e.g. photos) in 90 degree increments. Place a finger down on the left “target” zone and keep it stationary. Place another finger near the middle of the Touchpad and slide it in a circular motion around the stationary finger (clockwise or counterclockwise) to rotate the object.

  • Page 73: Power Management Overview

    Power Management Chapter 3: Power Management  Overview OS Note Power management To conserve power, especially when using the battery, your computer power man- functions will vary slight- agement conserves power by controlling individual components of the computer ly depending on your (the monitor and hard disk drive) or the whole system.

  • Page 74: The Power Sources

    Power Management The Power Sources  The computer can be powered by either an AC/DC adapter or a battery pack. Forced Off AC/DC Adapter If the system “hangs”, Use only the AC/DC adapter that comes with your computer. The wrong type of AC/ and the Ctrl + Alt + Del DC adapter will damage the computer and its components.

  • Page 75: Turning On The Computer

    Power Management Turning On the Computer Now you are ready to begin using your computer. To turn it on simply press the pow- er button on the front panel. When the computer is on, you can use the power button as a Stand by/Hibernate/ Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will shut the computer down).

  • Page 76: Shutting The Computer Down

    Power Management Shutting the Computer Down Note that you should always shut your computer down by choosing the Shut down command as this will help prevent hard disk or system problems. Use the Shut down or sign out item in the Context Menu (right-click the lower left corner of the screen to bring up the menu).

  • Page 77: Power Plans

    Power Management Power Plans  The computer can be configured to conserve power by means of power plans. You Resuming can use (or modify) an existing power plan, or create a new one. Operation The settings may be adjusted to set the display to turn off after a specified time, and Table 3 - 1, on to send the computer into Sleep after a period of inactivity.
  • Page 78 Power Management Each Windows power plan will also adjust the processor performance of your ma- chine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power). Choose High performance (you may need to click Show additional plans to view the High performance plan) for maximum performance when the computer is pow- ered from an AC power source.

  • Page 79: Power-Saving States

    Power Management Power-Saving States  You can use power-saving states to stop the computer’s operation and restart where Wake On LAN you left off. Win 8.1 uses the Sleep, Hibernate and Shut Down power-saving Support states. (Windows 8) Wake-On-LAN is only Sleep supported from Sleep or In Sleep all of your work, settings and preferences are saved to memory before the...

  • Page 80: Hibernate

    Power Management Hibernate Hibernate uses the least amount of power of all the power-saving states and saves all of your information on a part of the hard disk before it turns the system off. If a power failure occurs the system can restore your work from the hard disk; if a power failure occurs when work is saved only to memory, then the work will be lost.

  • Page 81: Configuring The Power Buttons

    Power Management Configuring the Power Buttons  The power/sleep button (Fn + F4 key combo) and closed lid may be set to send the Password computer in to a power-saving state. Click Choose what the power buttons do on Protection the left menu in Power Options to bring up the menu.
  • Page 82 Power Management Adding Hibernate/Sleep to the Power Menu Add Hibernate/Sleep to the Power Menu as follows. Go to the Power Options (Hardware and Sound) control panel. Click “Change settings that are currently unavailable” Click Choose what the power buttons do. Click to put a tick in the Hibernate/Sleep box under Shutdown settings.

  • Page 83: Resuming Operation

    Power Management Resuming Operation You can resume operation from power-saving states by pressing the power button, or in some cases pressing the sleep button (Fn + F4 key combo). Power Status To Resume Icon Color Table 3 - 1 Power Off Press the Power Button Resuming Press the Power Button...

  • Page 84: Power Conservation Modes

    Power Management Power Conservation Modes  This system supports Energy Star power management features that place comput- ers (CPU, hard drive, etc.) into a low-power sleep modes after a designated period Power Conservation of inactivity. Adjust Power Conservation Modes from the Control Center: Modes The Energy Star setting Press the Fn + Esc key combination to toggle the Control Center on/off.
  • Page 85 Power Management Ctrl + Alt + Delete Key Combination You can use the CTRL + ALT + DEL key combination from almost any of the Win- dows 8 interfaces/Apps to bring up a full-screen displaying Lock, Switch User, Log off, Change a password and Task Manager options. If you click the Power icon in the lower right corner of the screen a power management option menu appears to display Sleep, Shut down, and Restart.

  • Page 86: Battery Information

    Power Management Battery Information  Follow these simple guidelines to get the best use out of your battery. Low Battery Battery Power Warning Your computer’s battery power is dependent upon many factors, including the pro- When the battery is criti- grams you are running, and peripheral devices attached.

  • Page 87: Conserving Battery Power

    Power Management Conserving Battery Power  • Use a power plan that conserves power (e.g Power saver), however note that this may have an affect on computer performance. Windows Mobility Center • Lower the brightness level of the LCD display. The system will decrease LCD brightness slightly to save power when it is not powered by the AC/DC adapter.

  • Page 88: Battery Life

    Power Management Battery Life Battery life may be shortened through improper maintenance. To optimize the life and improve its performance, fully discharge and recharge the battery at least once every 30 days. We recommend that you do not remove the battery yourself. If you do need to re- move the battery for any reason (e.g.

  • Page 89: Proper Handling Of The Battery Pack

    Power Management Proper handling of the Battery Pack  • DO NOT disassemble the battery pack under any circumstances • DO NOT expose the battery to fire or high temperatures, it may explode Caution • DO NOT connect the metal terminals (+, -) to each other Danger of explosion if battery is incorrectly re- placed.

  • Page 90: Battery Faq

    Power Management Battery FAQ How do I completely discharge the battery? Use the computer with battery power until it shuts down due to a low battery. Don’t turn off the computer even if a message indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own.
  • Page 91 Power Management Click Change plan settings (after creating it) and click Change plan settings > Change advanced power settings. Figure 3 - 12 Change Plan Settings / Change Advanced Power Settings Battery Information 3 - 19...
  • Page 92 Power Management Scroll down to Battery and click + to expand the battery options. Choose the options below (click Yes if a warning appears): Figure 3 - 13 Power Options Advanced Settings - Battery • Low battery levels = 0% •...
  • Page 93 Power Management How do I fully charge the battery? When charging the battery, don’t stop until the LED charging indicator light changes from orange to green. How do I maintain the battery? Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges.
  • Page 94 Power Management 3 - 22...

  • Page 95: Drivers & Utilities

    Drivers & Utilities Chapter 4: Drivers & Utilities  This chapter deals with installing the drivers and utilities essential to the operation or Driver Installation & improvement of some of the computer’s subsystems. The system takes advantage of Power some newer hardware components for which the latest versions of most available op- When installing driv- erating systems haven’t built in drivers and utilities.

  • Page 96: Driver Installation

    Drivers & Utilities Driver Installation Check the driver installation order from Table 4 - 1, on page 4 - 3 (the drivers must be installed in this Insert the Device Drivers & Utilities + User’s Manual order) which is the same as that listed in the Drivers disc into an attached optical (DVD) drive.
  • Page 97 Drivers & Utilities Win 8.1 Driver Page # Win 8.1 - Optional Items Page # Chipset Page 4 - 6 Setting Up SATA RAID or AHCI Mode Page 7 - 2 Video (VGA) Page 4 - 6 PC Camera Module (No driver required) Page 7 - 12 NVIDIA Video (VGA)

  • Page 98: Updating/Reinstalling Individual Drivers

    Drivers & Utilities Manual Driver Installation Updating/Reinstalling Individual Drivers Click Browse CD/DVD (button) in the Drivers Install- If you wish to update/reinstall individual drivers it er application and browse to the executable file in the may be necessary to uninstall the original driver.To do appropriate driver folder.

  • Page 99: User Account Control

    Drivers & Utilities User Account Control  If a User Account Control prompt appears as part of the driver installation procedure, click Continue or Driver Installation General Guidelines Allow, and follow the installation procedure as direct- The driver installation procedure outlined in this Chapter (and in Chapter 7 Options &...

  • Page 100: Driver Installation Procedure

    Drivers & Utilities Driver Installation Procedure Note: After installing the video driver go to the Dis- play/Display Settings control panel to adjust the vid- Insert the Device Drivers & Utilities + User’s Manual eo settings to the highest resolution. disc into your attached CD/DVD drive and click In- stall Drivers (button).

  • Page 101: Hot Key

    Drivers & Utilities Hot Key Audio 1. Click 7.Install Hotkey AP > Yes. 1. Click 10.Install Audio Driver > Yes. 2. Click Next. 2. Click Next. 3. Click Finish to restart your computer. 3. Click Install. 4. Click Finish. Airplane 5.

  • Page 102: Optional Drivers

    Drivers & Utilities Optional Drivers  See the pages indicated in Table 4 - 1, on page 4 - 3 for the driver installation procedures for any modules Windows Update included in your purchase option. After installing all the drivers make sure you enable Win- dows Update in order to get all the latest security up- dates etc.

  • Page 103: Bios Utilities Overview

    BIOS Utilities Chapter 5: BIOS Utilities  BIOS Screens Overview Note that BIOS This chapter gives a brief introduction to the computer’s built-in software: screens pictured these pages are intend- If your computer has never been set up, or you are making important changes to the ed for guidance in set- ting up your system’s system (e.g.

  • Page 104: The Setup Utility

    BIOS Utilities The Setup Utility  Each time you turn on the computer the system takes a few seconds to conduct a BIOS Settings POST, including a quick test of the on-board RAM (memory). Warning As the POST proceeds, the computer will tell you if there is anything wrong. If there Incorrect settings can is a problem that prevents the system from booting, it will display a system summary cause your system to...

  • Page 105: Failing The Post

    BIOS Utilities Failing the POST Errors can be detected during the POST. There are two categories, “fatal” and “non- fatal”. Fatal Errors These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized distributor/supplier as soon as possible.

  • Page 106: Setup Screens

    BIOS Utilities Setup Screens  The following pages contain additional advice on portions of the Setup. Along the top of the screen is a menu bar with menu headings. When you select a heading, a Setup Menus new screen appears. Scroll through the features listed on each screen to make chang- Setup menus es to Setup.

  • Page 107: Main Menu

    BIOS Utilities Main Menu Figure 5 - 2 Main Menu System Time & Date (Main Menu) The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you can change the date and time settings in your operating system, you will also change these settings.
  • Page 108 BIOS Utilities SATA Port # (Main Menu) Pressing Enter opens the sub-menu to show the configuration of a optical Device/ HDD on the computer’s SATA Ports. System/Extended Memory (Main Menu) This item contains information on the system memory, and is not user configurable. The system will auto detect the amount of memory installed.

  • Page 109: Advanced Menu

    BIOS Utilities Advanced Menu Figure 5 - 3 Advanced Menu Intel(R) Rapid Start Technology (Advanced Menu) Enable/disable Intel(R) Rapid Start Technology from this menu. The rapid start hibernation mode can resume power within 5 to 6 seconds and can remember your computer's state with zero power.
  • Page 110 BIOS Utilities Intel Anti-Theft Technology (Advanced Menu)  Anti-Theft Technology, which is built-in to the processor of the computer, allows system administrators to render your computer useless to thieves by sending a poi- SATA Mode son pillencrypted SMS message over a 3G network etc. Administrators can also re- Selection motely unlock a recovered computer quickly, or direct the system to send location If you have installed the...
  • Page 111 BIOS Utilities Boot Logo (Advanced Menu) Use this menu item to enable/disable the Boot Logo screen at system startup if you have not enabled UEFI Boot. If you disable the Boot Logo you will not see the F2 Enter Setup or F7 Boot Options prompts on the screen, however you can still press these keys, while the boot screen is displayed, to perform the Enter Setup or Boot Option functions.

  • Page 112: Security Menu

    BIOS Utilities Security Menu  Security Menu The changes you make here affect the access to the Setup utility itself, and also access to your machine as it boots up after you turn it on. These settings do not affect your machine or network passwords which will be set in your...
  • Page 113 BIOS Utilities Note: To clear existing passwords press Enter and type the existing password, then  press Enter for the new password (without typing any password entry) and Enter again to confirm the password clearance. Password Warning Note: You can only set the user password after you have set the supervisor pass- If you set a boot pass- word.

  • Page 114: Boot Menu

    BIOS Utilities Boot Menu Figure 5 - 5 Boot Menu  BIOS Screens Note that BIOS screens pictured these pages are intend- ed for guidance in set- ting up your system’s BIOS. BIOS versions are sub- ject to constant change and revision, therefore your computer’s actual When you turn the computer on it will look for an operating system (e.g.
  • Page 115 BIOS Utilities Boot Option Priorities (Boot Menu) Use the arrow keys to move up and down the menu, and press enter to select a device from the menu (the selected device will be highlighted in white). UEFI Boot (Boot Menu > OS Select) Enable/disable UEFI Boot from this menu.

  • Page 116: Exit Menu

    BIOS Utilities Exit Menu Figure 5 - 6 Exit Menu Click Save Changes and Reset to save all changes made. Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any changes you have made to the Setup. You can also choose to restore the original Setup defaults that will re- turn the Setup to its original state, and erase any previous changes you have made in a previous session.

  • Page 117: Upgrading The Computer Overview

    Upgrading The Computer Chapter 6: Upgrading The Computer Overview  This chapter contains information on upgrading the computer. Follow the steps out- Warranty Warning lined to make the desired upgrades. If you have any trouble or problems you can con- tact your service representative for further help.

  • Page 118: When Not To Upgrade

    Upgrading The Computer When Not to Upgrade  These procedures involve opening the system’s case, adding and sometimes replac- ing parts. You should not perform any of these upgrades if: Power Safety Warning • Your system is still under warranty or a service contract Before you undertake •...
  • Page 119 Upgrading The Computer Upgrading the Processor If you want to upgrade your computer by replacing the existing processor with a fast- er/new one you will need to contact your customer service representative. We rec- ommend that you do not do this yourself, since if it is done incorrectly you may damage the processor or mainboard.

  • Page 120: Removing The Battery

    Upgrading The Computer Removing the Battery  If you are confident in undertaking upgrade procedures yourself, for safety reasons Warranty Warning it is best to remove the battery. Before removing the battery disconnect the AC/ Please check with your DC adapter from the computer first. service representative Turn the computer off, remove the AC/DC adapter and turn it over.

  • Page 121: Inserting The Battery

    Upgrading The Computer Inserting the Battery Slide the battery straight into the compartment (note that there are grooves on the side of the battery which should align up with the battery compartment). & Lock the battery in place by sliding the latches in the direction of arrows Figure 6 - 2 Battery Insertion &...

  • Page 122: Removing The Component Bay Cover

    Upgrading The Computer Removing the Component Bay Cover Turn off the computer, and turn it over and remove the battery. Locate the component bay cover and remove screws Figure 6 - 3 Component Bay Cover Screws 6 - 6 Removing the Component Bay Cover...

  • Page 123: Removing The Component Bay Cover

    Upgrading The Computer Lift the cover up at point and remove the cover the direction of arrow Figure 6 - 4 Component Bay Cover Removal  Removal Warning When removing any cover(s) and screw(s) for the purposes of device upgrade, remember to replace the cover(s) and screw(s) before turning restoring power to the system.

  • Page 124: Replacing The Component Bay Cover

    Upgrading The Computer Replacing the Component Bay Cover Reinsert the component bay cover by placing it on the bottom case assembly and aligning the three pins with the slots in the case. Angle the cover up to make sure that the cover pins fit in the slots, and then place the cover down onto the computer and ensure that the fit is tight before replacing the screws (Figure 6 - 3 on page 6 -...

  • Page 125: Upgrading The Hard Disk Drive(S)

    Upgrading The Computer Upgrading the Hard Disk Drive(s)  The hard disk Drive(s) can be taken out to accommodate up to one other 2.5" serial HDD System Warning (SATA) hard disk drives with a height of 9.5mm (h) / 7mm (h) (see “Storage”...
  • Page 126 Upgrading The Computer Removing the Hard Disk Turn off the computer, and turn it over and remove the battery and component bay covers (see pages 6 - 4 & Slide the HDD cover in the direction of arrow , and lift it out of the bay Remove screws &...
  • Page 127 Upgrading The Computer Reinserting the Hard Disk Reverse the process to install a new disk and do not forget to reinstall the cover and screws (see Figure 6 - 6 on page 6 - 10). Place the hard disk assembly into the bay and slide it in the direction of arrow Replace the component bay cover (see page Figure 6 - 7 Inserting the Hard...

  • Page 128: Upgrading The System Memory (Ram)

    Upgrading The Computer Upgrading the System Memory (RAM) The computer has two memory sockets for 204 pin Small Outline Dual In-line (SO- DIMM) DDR3L type memory modules (see “Memory” on page D - 2). The total memory size is automatically detected by the POST routine once you turn on your computer.
  • Page 129 Upgrading The Computer Turn off the computer, and turn it over and remove the battery and component bay covers (see pages 6 - 4 & The memory sockets will be visible at point on the mainboard. Figure 6 - 8 RAM Module Location ...
  • Page 130 Upgrading The Computer The RAM module will pop-up, and you can remove it.  Figure 6 - 10 Single Memory Module RAM Module Installation Removal If your computer has a single memory module, then insert the module into the Channel 0 (JDIMM1) socket. In this ...

  • Page 131: Modules Overview

    Modules Chapter 7: Modules Overview This chapter contains the information on the various modules (some of which are optional) which may come with your computer, depending on the configuration purchased. If you are unsure please contact your service representative. The chapter includes information on the following: •...

  • Page 132: Setting Up Sata Raid Or Ahci Mode

    Modules Setting Up SATA RAID or AHCI Mode  AHCI Mode RAID Solid State Advanced Host Controller Interface (AHCI) is an interface specification that allows Drives (SSDs) the storage driver to enable advanced serial ATA features such as Native Command All mSATA SSDs in a Queuing (for maximum hard disk efficiency and performance).
  • Page 133 Modules RAID Level Description Table 7 - 1 RAID Levels Identical drives reading and writing data in parallel to increase performance. RAID 0 RAID 0 implements a striped disk array and the data is broken into blocks and each block is written to a separate disk drive.

  • Page 134: Sata Raid Setup Procedure (Windows 8.1)

    Modules SATA RAID Setup Procedure (Windows 8.1) To configure your RAID (Redundant Array of Independent Disks) system in Strip- ing (RAID 0) or Mirroring (RAID 1) modes (see Table 7 - 1, on page 7 - 3) you will require at least two identical (see sidebar) mSATA solid state drives (SSDs) in- stalled.
  • Page 135 Modules Go to the operable computer and insert a USB Flash drive or external USB hard disk. Insert the Device Drivers & Utilities + User’s Manual disc into the CD/DVD drive of the operable computer. Copy the f6flpy-x86 or f6flpy-x64 folder from the location below (D: denotes your DVD drive) on the Device Drivers &...
  • Page 136 Modules 13. You can now setup your RAID volume using any installed SSDs. 14. Go to Name: and press <Enter>. 15. Type a name of your choice for your RAID volume and press <Enter>. Figure 7 - 2 Name the RAID Volume (Advanced >...
  • Page 137 Modules 16. Go to RAID Level: and press <Enter>. 17. Choose the RAID Level required (see Table 7 - 1, on page 7 - 3 for details) and press <Enter>. • RAID0 (Stripe) • RAID1 (Mirror) • Recovery 18. Go to any of the disks listed under Select Disks: and select a drive name and press <Enter>.
  • Page 138 Modules 20. You should select two identical mSATA SSDs to form your RAID volume. 21. If you have selected RAID0 (Stripe) then you can adjust the “Strip Size” to your requirements. 22. If you have selected Recovery then you can adjust the Synchronization to “On Request”...
  • Page 139 Modules 25. Press <Esc> to exit the menu. 26. Go to the Boot menu and make sure your attached DVD drive is set as Boot Option #1 in Boot Option Priorities. Figure 7 - 5 Boot Option Priorities (Set Attached DVD Drive as Option #1) 27.

  • Page 140: Irst Driver Installation

    Modules 33. Click Browse and browse to the location you copied the files to on your USB Flash drive or external USB hard disk (X: denotes your USB Flash drive or external USB hard disk): • X:\f6flpy-x64 (for Windows 8.1 64-bit) 34.

  • Page 141: Deleting A Raid (Windows 8.1)

    Modules Deleting a RAID (Windows 8.1) If you wish to delete an existing RAID then follow the procedure below to do so. How- ever backup up any necessary files and data before deleting a RAID, as doing so will result in the loss of all data on the RAID volumes. Start-up your notebook computer and press <F2>...

  • Page 142: Pc Camera Module

    Modules PC Camera Module When the PC Camera application is run the LED indicator to the left of the camera will be illuminated in (see Figure 1 - 2 on page 1 - 6). Note that you need to use the Camera app in Windows to take pictures and capture video. Use the Fn + F10 key combination (see “Function Keys &...

  • Page 143: Pc Camera Audio Setup

    Modules PC Camera Audio Setup If you want to capture video & audio with your camera, it is necessary to setup the audio recording options in Windows. Go to the Control Panel. Click Sound (Hardware and Sound) and click Recording (tab). Right-click hold and release Microphone (VIA High Definition Audio) and make sure the item is not disabled.

  • Page 144: Camera App

    Modules Camera App Run the Camera app from the Start screen by clicking on the Camera app icon The camera interface will display two buttons on the right side of the screen. Figure 7 - 8 Camera App Buttons  Exposure Use the slider to adjust the Exposure level.

  • Page 145: Camera Options

    Modules Camera Options The Camera Options settings may be accessed as follows: Run the Camera app from the Start screen by clicking on the Camera app icon While the camera app is running access the Charms Bar (e.g. click Use the Windows logo key + C key combination).

  • Page 146: Taking Pictures/Capturing Video

    Modules Taking Pictures/Capturing Video Run the Camera app from the Start screen by clicking on the Camera app icon Right-click the screen and select the timer if you require a countdown before capture. Click the appropriate icon to take a picture or start video capture (if video capture begins a timer will appear in the bottom corner of the screen).

  • Page 147: Camera Roll

    Modules Camera Roll Run the Camera app from the Start screen by clicking on the Camera app icon Right-click on the screen to bring up menu buttons at the bottom of the screen. Click Camera Roll. Click the arrows (on either side of the screen) to browse through the captured photos/video, and back to the Camera app.
  • Page 148 Modules photo with the edited changes), Update original (which changes the original picture permanently) or Undo any changes. Click the Edit button to bring up a full suite of tools to edit the photo. 10. Click on the menu headings on the left, and then click on the tool on the right to edit the photo as required.
  • Page 149 Modules Editing Videos Clicking on a captured video will bring up an app bar with a series of buttons. Figure 7 - 14 Edit Buttons (for Video Files) Click Delete to remove any video from the camera roll (you will be asked to click Delete again to confirm the deletion).
  • Page 150 Modules Video File Size Note that capturing high resolution video files requires a substantial amount of disk space for each file. After recording video, check the video file size (right-click the file and select Properties) and the remaining free space on your hard disk (go to My Computer, right-click the hard disk, and select Properties).

  • Page 151: Wireless Lan Module

    Modules Wireless LAN Module  If you have included an Intel® or 3rd Party WLAN module in your purchase option Wireless Device make sure that the module is on (i.e. the system is not in Airplane Mode) before in- Operation Aboard stalling the driver.

  • Page 152: 3Rd Party 802.11B/G/N Driver Installation

    Modules 3rd Party 802.11b/g/n Driver Installation 1. Make sure the system is not in Airplane Mode, and then insert the Device Drivers & Utilities + User’s Manual disc into an attached DVD drive. 2. Click Option Drivers (button). 3. Click 1.Install WLAN Driver > Yes. 4.

  • Page 153: Wlan Configuration In Windows

    Modules WLAN Configuration in Windows You can configure a wireless connection using one of the following options, how- ever make sure the Wireless LAN module is turned on (and not in Airplane Mode) before configuration begins. Charms Bar Go to the Charms Bar. Select Settings and then click the WiFi icon (it should read Available under the icon and Airplane mode should be Off).
  • Page 154 Modules Double-click an access point to connect to it (or click it and click Connect). Enter a network security key (password) if required, and click Next. You can choose to find other devices or not. When you are connected to the network access point it will display Connected Select any connected network and click Disconnect to disconnect from a connected access point.
  • Page 155 Modules Desktop Mode Switch to the Windows Desktop (click the app or use the Windows logo key D key combination). Click the wireless icon in the notification area of the taskbar. A list of available access points will appear. Double-click an access point to connect to it (or click it and click Connect). Enter a network security key (password) if required, and click Next.

  • Page 156: Bluetooth & Wlan Combo Module

    Modules Bluetooth & WLAN Combo Module If your purchase option includes the Combination Wireless LAN & Bluetooth module (either Intel® or 3rd Party) then install the driver as instructed overleaf. Make sure that the module is on (i.e. the system is not in Airplane Mode) before in- stalling the driver.

  • Page 157: 3Rd Party Bluetooth (V4.0) Combo Driver Installation

    Modules 3rd Party Bluetooth (V4.0) Combo Driver Installation  1. Make sure the system is not in Airplane Mode, and then insert the Device Drivers & Utilities + User’s Manual disc into an attached DVD drive. High Speed Bluetooth Data Transfer 2.

  • Page 158: Bluetooth Configuration In Windows

    Modules Bluetooth Configuration in Windows You can configure a Bluetooth connection as below, however make sure the Blue- tooth module is on (or the system is not in Airplane Mode) before configuration. Desktop Mode Switch to the Windows Desktop (click the App or use the Windows logo key D key combination).
  • Page 159 Modules Make sure that Bluetooth is turned on and a list of discovered devices will appear. Double-click the device you want to pair with the computer and click Pair. Figure 7 - 20 PC and Devices - Bluetooth On first connection the computer will provide you with a pairing code to be entered onto the device.
  • Page 160 Modules To Make your Computer Discoverable to Bluetooth Devices Switch to the Windows Desktop (click the app or use the Windows logo key D key combination). Click the notification area of the taskbar, click the Bluetooth icon and click Open Settings. Click Options, and make sure that Allow Bluetooth devices to find this computer check box (Discovery) has a tick inside it.

  • Page 161: Intel® Rapid Storage Technology

    Modules Intel Rapid Storage Technology ® The Intel Rapid Storage Technology application provides high-performance SATA and SATA RAID capabilities. Install the Intel Rapid Storage Technology application (after installing all necessary drivers in the correct order) to support your RAID (if you have two mSATA SSDs installed) system or SATA drive if set up in AHCI mode in the BIOS (see “SATA Mode (Advanced Menu)”...

  • Page 162: Intel® Rapid Storage Technology For Raid Systems

    Modules Intel® Rapid Storage Technology for RAID Systems Intel® Rapid Storage Technology application displays status information on your RAID configuration. Run the Intel® Rapid Storage Technology application from the item in the Start menu. When the Intel® Rapid Storage Technology application is launched the system will open the Status window.
  • Page 163 Modules Intel® Rapid Storage Technology Help  If a hard drive member of a RAID volume is reported as “Degraded” or “Failed” it may be possible to recover the volume. If the volume cannot be restored then you Help will need to recreate the RAID volume and restore the data from a back up. Click the Help menu (or press F1) for instructions on how to recover or recreate RAID Vol- Click the Help (or press F1) menu button at the...

  • Page 164: Raid Volume Data Verification And Repair

    Modules RAID Volume Data Verification and Repair The RAID volume data verification process identifies any inconsistencies or bad data on a RAID 0 or RAID 1 volume. The table outlines what occurs for each RAID level: RAID Verify Verify & Repair Level Table 7 - 2 RAID 0...
  • Page 165 Modules Verifying and Repairing RAID Volume Data Run the Intel® Rapid Storage Technology application. Click to select the RAID in the pane on the right side of the window. Click Manage and click Advanced. Click Verify, then click Verify (button) to begin the process. The completion percentage will be listed under Status (Verifying) Click Close to complete the process.

  • Page 166: Intel® Smart Response Technology

    Modules Intel® Smart Response Technology Intel® Smart Response Technology is an Intel® Rapid Storage Technology (RST) caching feature that accelerates computer system performance by using the SSD as cache memory between the hard disk drive and system memory. System Requirements to support Intel® Smart Response Technology: •...

  • Page 167: Enabling Intel Smart Response Technology

    Modules Enabling Intel Smart Response Technology Run the Intel® Rapid Storage Technology application. Click Enable acceleration under Performance > Smart Response Technology (note that you will at least 5MB of free unpartitioned and unallocated space on the SSD otherwise the Smart Response Technology item will not appear). Figure 7 - 27 Intel®...
  • Page 168 Modules Select the HDD (or RAID volume) to be accelerated (it is highly recommended that you accelerate the system volume or system disk for maximum performance). Select the acceleration mode, and then click OK (Enhanced mode is selected by default). Note: Enhanced mode (default): Acceleration optimized for data protection.
  • Page 169 Modules The page will refresh and report the new configuration in under Performance > Smart Response Technology. Figure 7 - 29 Intel® Rapid Storage Technology - Performance (Smart Response Technology) Intel® Rapid Storage Technology 7 - 39...

  • Page 170: Intel® Rapid Start Technology Driver

    Modules Intel Rapid Start Technology Driver ® Intel(R) Rapid Start Technology can resume power from Hibernation within 5 to 6 seconds and can remember your computer's previous state with zero power. System Requirements to support Intel® Rapid Start Technology: • Rapid Start Technology should be enabled in the BIOS (see ““Intel(R) Rapid Start Technology (Advanced Menu)”...

  • Page 171: Intel® Rapid Start Technology Configuration

    Modules Intel® Rapid Start Technology Configuration Enable/disable Intel(R) Rapid Start Technology from the BIOS (see “Intel(R) Rapid Start Technology (Advanced Menu)” on page 5 - Go the Windows control panel and double-click Administrative Tools (System and Security)> Computer Management > Storage > Disk Management Right-click the SSD and select Shrink Volume from the menu.
  • Page 172 Modules Enter the figure, which should be equal to amount of system memory (RAM) in your computer, in “Enter the amount of space to shrink in MB”. Figure 7 - 31 Shrink Volume Size Click Shrink (any unallocated file space may be formatted for storage use). ...
  • Page 173 Modules Run the Desktop app and right-click the lower left hot corner (or use the Windows Logo Key + X key combination) and select Command Prompt (Admin). Figure 7 - 32 Search for CMD Prompt Type “DISKPART”. At the DISKPART command type “list disk”. Figure 7 - 33 Diskpart - List Disk Intel®...
  • Page 174 Modules Type “select disk #” (# is disk number where you want to create the store partition, so refer to the results obtained from "list disk" for exact disk number). 10. The message “Disk # is now the selected disk.” will appear. Figure 7 - 34 Diskpart - Select Disk #...
  • Page 175 Modules 13. Type “detail disk”. Figure 7 - 36 Diskpart - Detail Disk 14. Type “select Volume #” (# is volume of your storage partition so refer to results obtained from "detail disk" for the exact volume number). 15. The message “Volume # is now the selected volume.” will appear. Figure 7 - 37 Diskpart - Select Volume #...
  • Page 176 Modules 16. Type the following, depending on the format of the SSD. • For MBR formatted SSDs: “set id=84 override” (the id must be set to 84). • For GPT formatted SSDs: “set id=D3BFE2DE-3DAF-11DF-BA40-E3A556D89593”. Figure 7 - 38 Diskpart - Set id= 17.

  • Page 177: Intel® Rapid Start Technology Driver Installation

    Modules 19. Go the Windows control panel and double-click Administrative Tools (System and Security)> Computer Management > Storage > Disk Management. 20. The disk partition should read Healthy Hibernation Partition. Figure 7 - 39 Computer Management (Healthy Hibernation Healthy (Hibernation Partition) Partition) 21.

  • Page 178: Sound Blaster Cinema Eq

    Modules Sound Blaster Cinema EQ  Install the Sound Blaster Cinema EQ to allow you to configure the audio settings Creative Software to your requirements for the best performance in games, music and movies. AutoUpdate Sound Blaster Cinema EQ Installation Run the application from 1.

  • Page 179: Sound Blaster Cinema Application

    Modules Sound Blaster Cinema Application  Run the Sound Blaster Cinema control panel from the notification area of the task- bar (or from the item in the Apps menu). Click on the tabs to access the any of the Sound Blaster Cinema &...
  • Page 180 Modules Sound Blaster Cinema Settings Sound Blaster Cinema selects the built-in speakers by default and this setting may cause some sound quality issues when using headphones. To adjust the settings for headphones do the following: Run the Sound Blaster Cinema application. Select Settings from the menu.

  • Page 181: Sound Blaster Cinema Controls

    Modules Sound Blaster Cinema Controls  Each control has an On/Off button to allow you to enable/disable the control, and most controls feature a slider to adjust the levels. Settings You can use the drop down menu to use pre- sets for Music, Movie or Menu Games.
  • Page 182 Modules Sound Blaster Cinema & HDMI When you connect an HDMI display to the HDMI-Out port, the Sound Blaster Cin- ema controls will be disabled. A warning box will pop-up and will prompt “...Do you want to select another audio device now?”. Click No to continue using the HDMI audio output from your external display (do not attempt to select another audio device when connected to the external HDMI display).

  • Page 183: Trusted Platform Module

    Modules Trusted Platform Module (Factory Option Onlyl) \The TPM security chip allows you to create and manage digital certificates for user and platform authentication. This type of security is usually administered with- in large enterprises and organizations, and therefore requires implementation by a system administrator before users can access security features.

  • Page 184: Enabling & Activating Tpm

    Modules Enabling & Activating TPM Restart the computer. Enter the Aptio Setup Utility pressing F2 during the POST/startup. Use the arrow keys to select the Security menu. Select TPM Configuration and press Enter to access the sub-menu. Press Enter to access the TPM Support menu and select Enable to display the full TPM configuration menu.
  • Page 185 Modules Select Pending operation, press Enter and select the option you require (if you are initializing TPM you should select Enable Take Ownership and press Enter). You will then need to press F4 to save the changes and restart the computer. Figure 7 - 45 Pending TPM operation...

  • Page 186: Trusted Platform Module (Tpm) Driver Installation

    Modules Trusted Platform Module (TPM) Driver Installation 1. Make sure you have enabled and activated the TPM in the BIOS before installing the driver. 2. Insert the Device Drivers & Utilities + User’s Manual disc into the DVD drive. 3. Click Option Drivers (button). 4.

  • Page 187: Initializing Tpm

    Modules Initializing TPM Switch to the Desktop app and click the TPM icon right-click the icon in the notification area of the taskbar, and select Security Platform Initialization (or click the Security Platform State taskbar bubble). Click User Settings (tab) and click Yes, or right-click the icon in the notification area of the taskbar, and select Security Platform Initialization (or click the Security Platform State taskbar bubble).
  • Page 188 Modules Choose the Security Platform Features you want to use by clicking the  appropriate tickbox. Enter a Basic User Password (and re-type to confirm it) and click Next. Help Right-click the icon the notification area of the taskbar to bring up the menu to select Help or How to use the Security Platform Fea- tures.

  • Page 189: Infineon Security Platform Settings Tool

    Modules Infineon Security Platform Settings Tool  The Infineon Security Platform Settings Tool allows you to manage and check the TPM state, manage your password information, and to backup and restore the TPM Menus data. As TPM is usually administered within large enterprises and organizations, Note that not all the your system administrator will need to assist you in managing the information here.
  • Page 190 Modules User Settings This page allows the settings to be configured for the currently logged in Infineon Security Platform user including the ability to change the password, configure se- cure e-mail, file and folder encryption and Enhanced Authentication. You can also import or delete certificates protected by the security platform.
  • Page 191 Modules Backup Here you can configure backup and restore operations. Backup files contain the computer identification and user identification information which is used to match the machine name and user name with the current machine and user during restora- tion. Figure 7 - 50 Infineon Security Platform Settings...
  • Page 192 Modules Migration The Migration tab is used to help securely transfer keys and certificates from one platform to another. Figure 7 - 51 Infineon Security Platform Settings Tool (Migration) 7 - 62 Trusted Platform Module...
  • Page 193 Modules Password Reset Use Password Reset to reset basic user passwords when required. Figure 7 - 52 Infineon Security Platform Settings Tool (Password Reset) Trusted Platform Module 7 - 63...
  • Page 194 Modules BitLocker BitLocker Drive Encryption can be used in conjunction with the TPM to encrypt data on the disk and is done via the Microsoft BitLocker Control Panel Applet. Click Configure and select a drive to be encrypted and then follow the Wizard to begin the encryption process.
  • Page 195 Modules Access the Microsoft BitLocker Drive Encryption control panel applet from the Windows control panel (System and Security). Figure 7 - 54 BitLocker Drive Encryption Trusted Platform Module 7 - 65...
  • Page 196 Modules Advanced Configure all the Security Platform owner and policy settings from the Advanced tab. The settings that can be changed are for the local computer only. Figure 7 - 55 Infineon Security Platform Settings Tool (Advanced) 7 - 66 Trusted Platform Module...

  • Page 197: Wireless Display

    Modules Wireless Display  Wireless Display uses your Wireless LAN module/WLAN Bluetooth Combo mod- Compatible (you need to make sure that your video adapter/display device is compatible with Adapters your particular WLAN/Combo module) in conjunction with a compatible video adapter/display device (purchased separately) to allow you to display the contents of For a list of compatible the notebook display on another display (e.g.

  • Page 198: Wireless Display Configuration

    Modules Wireless Display Configuration Note that no driver or application is required for wireless display in Windows 8.1. Go the Charms Bar, select Devices. Click Project. Click Add a wireless display. Figure 7 - 56 Add a Wireless Display 7 - 68 Wireless Display...
  • Page 199 Modules The system will then search for compatible display devices (this may take up to 60 seconds so allow time for this to complete). Figure 7 - 57 Searching For Devices Double-click any detected display device in the list. You may then need to input a pin number for the device to which you are connecting.
  • Page 200 Modules The display will then connect (for specific settings for your display see the documentation supplied with your compatible adapter/display for full details). 10. To disconnect from the display you can select it in PC and Devices > Devices and click Remove Device >...

  • Page 201: 3G Module

    Modules 3G Module If you have included an optional UMTS/HSPDA+ based 3G Module (Universal Mobile Telecommunications System or High Speed Packet Access) module (see “Communication” on page D - 3 for specification details) in your purchase option, you do not require a driver/application installation for Windows 8.1. Follow the instructions overleaf to install the USIM card (which will be provided by your ser- vice provider), and then use the Charms Bar Wireless icon to access the 3G net- work in the same manner as the WLAN (see page...
  • Page 202 Modules 3G Module USIM Card Installation  Follow the instructions below to install the USIM card (which will be provided by your service provider). Power Safety Warning Turn off the computer, and turn it over. Before you undertake any Remove the battery (see “Removing the Battery”...

  • Page 203: 3G Configuration In Windows

    Modules 3G Configuration in Windows You can configure a 3G connection as below, however make sure the system is not in Airplane Mode before configuration begins. Charms Bar Go to the Charms Bar. Select Settings and then click the WiFi icon (it should read Available under the icon and Airplane mode should be Off).
  • Page 204 Modules Any 3G service provider (connection information is usually stored on the USIM card) will appear under Mobile Broadband. Double-click any connection icon under Mobile Broadband (or click and then click Connect). Figure 7 - 62 Mobile Broadband (Connect) The system will connect to your network. A Connected will appear alongside the 3G connection (click the connection to view the timer which indicates your connected time for the current session).
  • Page 205 Modules You can then access the internet, download e-mail etc. as per any internet  connection. To disconnect you can select the connection and click Disconnect Wireless Device Operation Aboard Aircraft The use of any portable electronic transmission devices aboard aircraft is usually prohibited.

  • Page 206: Em820W 3G Module Pin Code & Power-Saving

    Modules EM820W 3G Module PIN Code & Power-Saving Note that there may be some issues when a PIN Code is set for the EM820W 3G module (if you are unsure of your module version contact your distributor/supplier) in Windows, if Mobile Broadband has been turned off, and the system has resumed from a power-saving state.
  • Page 207 Modules Click Network. Click the broadband connection under Mobile Broadband. Scroll down to Security and click Remove PIN. Enter the current PIN number and click OK. It is recommended that you do not Enable a PIN for the EM820W 3G module. Figure 7 - 65 Disable PIN EM820W 3G Module PIN Code &...
  • Page 208 Modules 7 - 78...

  • Page 209: Troubleshooting Overview

    Troubleshooting Chapter 8: Troubleshooting Overview Should you have any problems with your computer, before consulting your service representative, you may want to try to solve the problem yourself. This chapter lists some common problems and their possible solutions. This can’t anticipate every problem, but you should check here before you panic. If you don’t find the answer in these pages, make sure you have followed the instructions carefully and observed the safety precautions in the preface.

  • Page 210: Basic Hints And Tips

    Troubleshooting Basic Hints and Tips Many of the following may seem obvious but they are often the solution to a problem when your computer ap- pears not to be working. • Power - Is the computer actually plugged into a working electrical outlet? If plugged into a power strip, make sure it is actually working.

  • Page 211: Backup And General Maintenance

    Troubleshooting Backup and General Maintenance • Always backup your important data, and keep copies of your OS and programs safe, but close to hand. Don’t forget to note the serial numbers if you are storing them out of their original cases, e.g. in a CD wal- let.

  • Page 212: Viruses

    Troubleshooting Viruses • Install an Anti-Virus program and keep the definitions file (the file which tells your program which viruses to look for) up to date. New computer viruses are discovered daily, and some of them may seriously harm your computer and cause you to lose data. Anti-Virus programs are commercially available and the defini- tions file updates are usually downloadable directly from the internet.

  • Page 213: Upgrading And Adding New Hardware/Software

    Troubleshooting Upgrading and Adding New Hardware/Software • Do not be tempted to make changes to your Windows Registry unless you are very sure of what you are doing, otherwise you will risk severely damaging your system. • Don’t open your computer or undertake any repair or upgrade work if you are not comfortable with what you are doing.
  • Page 214 Troubleshooting • Don’t over complicate things. The less you have to deal with then the easier the source of the problem may be found; Example - if your computer has many devices plugged into its ports, and a number of programs running, then it will be difficult to determine the cause of a problem.

  • Page 215: Problems And Possible Solutions

    Troubleshooting Problems and Possible Solutions Problem Possible Cause - Solution You turned on the power but it doesn’t Battery missing / incorrectly installed. Check the battery bay, make sure the work. battery is present and seated properly (the design of the battery only allows it to go in one way).
  • Page 216 Troubleshooting Problem Possible Cause - Solution The computer feels too hot. Make sure the computer is properly ventilated and the Vent/Fan intakes are not blocked. If this doesn’t cool it down, put the system into Hibernate mode or turn it off for an hour. Make sure the computer isn’t sitting on a thermal surface (see “Overheating”...
  • Page 217 Troubleshooting Problem Possible Cause - Solution You forget the boot password. If you forget the password, you may have to discharge the battery of the CMOS. Contact your service representative for help.  Password Warning If you choose to set a boot password, NEVER forget your password. The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.
  • Page 218 Troubleshooting Problem Possible Cause - Solution The system freezes or the screen goes The system’s power saving features have timed-out. Use the AC/DC adapter, dark. press the sleep (Fn + F4) key combination, or press the power button if no LEDs are lit.
  • Page 219 Troubleshooting Problem Possible Cause - Solution I cannot obtain high speed Bluetooth data To obtain high speed Bluetooth data transfer take into account the following: transfer. • To achieve high speed transfer speeds, both devices must support high speed data transfer (i.e both the computer and the Bluetooth compati- ble device you are connecting to).
  • Page 220 Troubleshooting Problem Possible Cause - Solution I have connected a Bluetooth Mouse but This is an issue with this mouse model and the Intel Wireless 7260 WLAN and it loses the Bluetooth connection and Bluetooth combo module series. To resolve this issue do the following: no longer responds after a short period of Go to the Device Manager control panel in Windows.
  • Page 221 Troubleshooting Problem Possible Cause - Solution I have used Update Driver in Device It is very important that the drivers are installed in the order indicated in Chapter Manager (Unknown device > Other 4 (which is the numbered installation order on the Device Drivers & Utilities + Devices) to try and install the Airplane User’s Manual disc).
  • Page 222 Troubleshooting Problem Possible Cause - Solution When using a Bluetooth headset the This is a common issue with Bluetooth headsets. To resolve this issue do the audio appears to be mono and not following (you will need to repeat this procedure after every boot up, restart, stereo.

  • Page 223: Em820W 3G Module Pin Code & Power-Saving

    Troubleshooting EM820W 3G Module PIN Code & Power-Saving Note that there may be some issues when a PIN Code is set for the EM820W 3G module (if you are unsure of your module version contact your distributor/supplier) in Windows, if Mobile Broadband has been turned off, and the system has resumed from a power-saving state.
  • Page 224 Troubleshooting Click Network. Click the broadband connection under Mobile Broadband. Scroll down to Security and click Remove PIN. Enter the current PIN number and click OK. It is recommended that you do not Enable a PIN for the EM820W 3G module. Figure 8 - 3 - Disable PIN 8 - 16 EM820W 3G Module PIN Code &...

  • Page 225: Resolving The "Insert A Sim" Issue With The 3G Module (Windows 8.1)

    Troubleshooting Resolving the “Insert a SIM” issue with the 3G Module (Windows 8.1) If a PIN was set for the EM820W 3G module, you have then switched Mobile broadband off (or put the system in Airplane Mode) in Networks, and the system has just resumed from a power-saving state the following error may occur.
  • Page 226 Troubleshooting 8 - 18...

  • Page 227: Interface (Ports & Jacks) Overview

    Interface (Ports & Jacks) Appendix A: Interface (Ports & Jacks) Overview The following chapter will give a quick description of the ports & jacks which allow your computer to commu- nicate with external devices, connect to the internet etc. Interface (Ports & Jacks) A - 1...

  • Page 228: Ports And Jacks

    Interface (Ports & Jacks) Ports and Jacks Item Description Card Reader The card reader allows you to use the following digital storage cards: MMC (MultiMedia Card) / RSMMC SD (Secure Digital) / Mini SD / SDHC / SDXC Push the card into the slot and it will appear as a removable device. DC-In Jack Plug the supplied AC/DC adapter into this jack to power your computer.
  • Page 229 Interface (Ports & Jacks) Item Description RJ-45 LAN Jack This port supports LAN (Network) functions. Note: Broadband (e.g. ADSL) modems usually connect to the LAN port. Security Lock Slot To prevent possible theft, a Kensington-type lock can be attached to this slot. Locks can be purchased at any computer store.
  • Page 230 Interface (Ports & Jacks) A - 4...

  • Page 231: Control Center Overview

    Control Center Appendix B: Control Center Overview The following chapter will give a quick description of the functions of the Control Center. The Control Center gives quick access to frequently used controls, power management features and enables you to quickly turn mod- ules on/off.
  • Page 232 Control Center Power Modes You can set a Power Mode by clicking the appropriate icon at the top of the Control Center. Each power mode will affect the Power Conservation Mode, Airplane Mode, Power Plan and PC camera power etc. You can click a Control Center icon to set an overall power mode and then click individual icons in the Control Center to power on/off the Touchpad and PC camera.
  • Page 233 Control Center Control Center Menus The Control Center contains 3 menu headings (System Program, Device and Gaming) under the Power Modes. Click the menu headings and then click any of the buttons outlined on the following pages. Figure B - 2 - Control Center Menus Control Center B - 3...
  • Page 234 Control Center Power Status (System Program) The Power Status icon will show whether you are currently powered by the battery, or by the AC/DC adapter plugged in to a working power outlet. The power status bar will show the current battery charge state. Brightness (System Program) The Brightness icon will show the current screen brightness level.
  • Page 235 Control Center Sleep Button (System Program) Click either the Hibernate or Sleep buttons to have the computer enter the selected power-saving mode when the Fn + F4 key combination is pressed (see “Power-Saving States” on page 3 - Display Switch (System Program) Click the Display Switch button to access the menu (or use the + P key combination) and select the appro- priate attached display mode.
  • Page 236 Control Center Left Windows Key (Gaming) Click Disable to disable the Windows Key on the left side of the keyboard. This may be useful if you are using the keyboard for gaming and wish to avoid accidentally triggering menus with the Windows Key. Fan Speed (Gaming) The fan speed will adjust itself automatically to control the heat of the CPU.

  • Page 237: Video Driver Controls

    Video Driver Controls Appendix C: Video Driver Controls The basic settings for configuring the LCD are outlined in “Video Features” on  page 1 - Video Driver Installation Video Card Options Note that card types, Make sure you install the drivers in the order indicated in Table 4 - 1, on page 4 - specifications and driv- Insert the Device Drivers &...

  • Page 238: Microsoft Hybrid Graphics

    Video Driver Controls Microsoft Hybrid Graphics Most notebook computers come with either a discrete or integrated graphics solu- tion. Discrete graphics solutions feature a dedicated Graphics Processing Unit (GPU) which are capable of playing games, watching HD video or running GPU-based ap- plications.
  • Page 239 Video Driver Controls How the Technology works  When the system is powered up and is displaying just the desktop, the dGPU will be powered off. In this case the system is running in the same way as a system without Customization a discrete graphics solution.

  • Page 240: Intel® Dynamic Video Memory Technology

    Video Driver Controls Intel® Dynamic Video Memory Technology ® Intel DVMT automatically and dynamically allocates as much (up to 1748MB) system memory (RAM) as needed to the integrated video system (the video driver must be installed). DVMT returns whatever memory is no longer needed to the op- erating system.

  • Page 241: Intel® Hd Graphics Control Panel

    Video Driver Controls Intel HD Graphics Control Panel ® Advanced video configuration options are provided by the Intel HD Control Pan- ® el. To access the control panel see below and overleaf: Click the Intel® HD Graphics Control Panel icon in the Apps screen. Figure C - 1 Apps Screen Intel ®...
  • Page 242 Video Driver Controls Right-click the Desktop and select Graphics Properties from the menu. Click Advanced settings in the Screen Resolution control panel in Windows. Click the Intel(R) HD Graphics Control Panel tab and click Graphics Properties (button). Double-click the Intel(R) HD Graphics control panel in the Windows Control Panel.
  • Page 243 Video Driver Controls You may make changes to any of the graphics properties by clicking the appropriate menu panel and adjusting the settings on the right. Figure C - 3 Intel ® HD Graphics Control Panel Intel® HD Graphics Control Panel C - 7...
  • Page 244 Video Driver Controls Sub-Menus Some of the menu panels will also have sub-menus (in the top left corner of the menu alongside the icon ) to display further configuration options. Figure C - 4 Intel ® HD Graphics Control Panel Sub-Menus C - 8 Intel®...
  • Page 245 Video Driver Controls Display  Click either Display Settings or Color to make display adjustments, including con- figuration for any attached external displays. Multiple Display At least one other dis- play must be attached in order to view multiple display selection tions.
  • Page 246 Video Driver Controls Click the Display menu at the top of the screen to display the sub-menus. The Mul-  tiple Displays menu allows you to configure the display mode of any attached dis- plays (see “Attaching Other Displays” on page C - 20).
  • Page 247 Video Driver Controls This menu allows you to choose how 3D images are displayed. Quality displays the most detail, Balanced provides better computer performance with good quality and Custom allows you to configure the Anisotropic Filtering, Vertical Sync and Anti-Aliasing features to your preferences. Click Apply to save changes. Figure C - 7 Intel ®...
  • Page 248 Video Driver Controls Options Options allows you to Customize Hot Keys (for opening the application, rotating the display, scaling etc.,) to your preferences. Click Apply to save changes. Figure C - 8 Intel ® HD Graphics Control Panel Options C - 12 Intel® HD Graphics Control Panel...
  • Page 249 Video Driver Controls Click the Options menu at the top of the screen to display the sub-menus. The In-  formation Center provides details on System Information, the Built-In Display and any attached displays. Preferences Go to the Preferences sub-menu in Options to configure the preferenc- es for the Intel®...
  • Page 250 Video Driver Controls Video The Video Profiles menu allows you to brighten or darken movies, or to switch to vivid colors. Click Basic or Advanced to adjust the video settings based on the Ap- plication Settings or Driver Settings. The Preview image will display a sample im- age using the current settings.
  • Page 251 Video Driver Controls Click the Video menu at the top of the screen to display the sub-menus.The Image Enhancement menu allows you to adjust the Sharpness, Skin Tone Enhance- ment, Noise Reduction etc. Click Apply to save changes. Figure C - 11 Intel ®...
  • Page 252 Video Driver Controls The Image Scaling and Gamut Mapping menus allow you to adjust these items. Figure C - 12 Intel ® HD Graphics Control Panel Video Image Scaling & Gamut Mapping C - 16 Intel® HD Graphics Control Panel...
  • Page 253 Video Driver Controls Power Choose a Power Plan for when the computer is Plugged in or On battery. When turned on, the Display Power Saving Technology (which adjusts the backlight in- tensity) battery settings may be adjusted by means of the slider towards Maximum Quality or Maximum Battery.
  • Page 254 Video Driver Controls Support Click Support and select an item from the menus to bring up the help and support topics. You will need to be connected to the Internet to access the key resource links. Figure C - 14 Intel ®...

  • Page 255: Display Devices & Options

    Video Driver Controls Display Devices & Options Note that you can use external displays connected to the HDMI-Out port and/or ex- ternal monitor port. See your display device manual to see which formats are sup- ported.  Attaching Displays When you first attach an external display you may find that the desktop does not occupy the full screen area.

  • Page 256: Attaching Other Displays

    Video Driver Controls Attaching Other Displays  To Clone Displays: Multiple Display Attach your external display to the display port/mini display port/HDMI-Out port, and turn it on. At least one other dis- Go to the Intel(R) HD Graphics Control Panel control panel and click Display > play must be attached in Multiple Displays (sub-menu).
  • Page 257 Video Driver Controls To Enable Extended Mode:  Attach your external display to the display port/mini display port/HDMI-Out port, and turn it on. Display Settings Go to the Intel(R) HD Graphics Control Panel control panel and click Display > Extended Desktop Multiple Displays (sub-menu).
  • Page 258 Video Driver Controls To Enable Collage Mode:  Attach your external displays to the external monitor port and HDMI-Out port, and turn them on. Collage Mode Go to the Intel(R) HD Graphics Control Panel control panel and click Display > Multiple Displays (sub-menu).

  • Page 259: Attaching Other Displays - Devices (Charms Bar

    Video Driver Controls Attaching Other Displays - Devices (Charms Bar)  You can configure attached displays from Devices (in the Charms Bar) Windows Logo Key + P Key Attach your external display to the external monitor port/HDMI-Out port, and turn it on. Combination Go the Charms Bar, select Devices.

  • Page 260: Configuring An External Display In Windows

    Video Driver Controls Configuring an External Display In Windows Attach your external display to the external monitor port/HDMI-Out port, and turn it on. Go to the Screen resolution control panel (see page 27) in the Desktop app. Click the Detect button. The computer will then detect any attached displays.
  • Page 261 Video Driver Controls You can configure the displays from the Multiple Displays menu. Figure C - 20 Screen Resolution Multiple Display Options • Duplicate these displays - Shows an exact copy of the main display desktop on the other display(s) •...

  • Page 262: Nvidia Control Panel

    Video Driver Controls NVIDIA Control Panel  More advanced video configuration options are provided in the NVIDIA Control NVIDIA Control Panel tab. Panel Go to the Control Panel. To access the Ge- Double-click NVIDIA Control Panel (click to view the control panel in either Large Force..
  • Page 263 Video Driver Controls The NVIDIA Control Panel provides additional video configuration controls and  tools which allow quick access to features such as image settings, 3D Settings and video configuration. Navigating the Control Panel Navigate through the control panels in much the same way as you would a web page.

  • Page 264: Optimus™ Customization Options

    Video Driver Controls Optimus Customization Options ™  One of the most important aspects of Nvidia Optimus technology is that it will ® ™ switch between the integrated GPU and discrete GPU seamlessly and automatically, Display GPU Activity Icon and does not require any input from the user. However customization options are of- fered for users who prefer to set their own parameters for GPU usage.
  • Page 265 Video Driver Controls Close the NVIDIA Control Panel.  Find the executable file icon of the application you want to run. Right-click the icon and select Run with graphics processor from the context iGPU or dGPU menu. Select either High-performance NVIDIA processor (dGPU) or Integrated Note the NVIDIA con- graphics (iGPU) to run the program with the selected GPU.
  • Page 266 Video Driver Controls Global Settings Global settings allows you to set the preferred graphics processor for overall use. Ideally this would be the iGPU for battery life, but this can be set to the dGPU if pre- ferred. Go to the NVIDIA Control Panel (see page 26).
  • Page 267 Video Driver Controls Program Settings Program settings allows you to make specific adjustments for installed applications. Go to the NVIDIA Control Panel (see page 26). Click Manage 3D Settings (3D Settings) and select Program Settings (tab). Select a program to customize from the drop-down menu, or click Add to add any program that does not appear in the menu.

  • Page 268: Set Physx Configuration

    Video Driver Controls Set PhysX Configuration ® NVIDIA PhysX is a physics engine that can use the GPU to accelerate game and ® ® 3D application performance. You can select the GeForce video card or CPU as a PhysX processor, or configure the computer to auto-select a PhysX processor ®...

  • Page 269: Hdmi Audio Configuration

    Video Driver Controls HDMI Audio Configuration  HDMI (High-Definition Multimedia Interface) carries both audio and video signals. Volume Adjustment In some cases it will be necessary to go to the Sound control panel and manually The sound volume level configure the HDMI audio output as per the instructions below. can be set using the vol- ume control in the Set- Go to the Control Panel.
  • Page 270 Video Driver Controls Adjust the HDMI settings from the control panel tabs. Click OK to close the Sound control panel. Figure C - 29 HDMI Device Properties C - 34 HDMI Audio Configuration...
  • Page 271 Video Driver Controls HDMI Notes  • Connect a device with HDMI support to the HDMI-Out port BEFORE attempt- ing to play audio/video sources through the device. Other Applications • To play audio sources through your external display’s (TV or LCD) speakers If you are using a third you will need to go to the audio configuration control panel on the display and party application to play...
  • Page 272 Video Driver Controls C - 36...

  • Page 273: Specifications

    Specifications Appendix D: Specifications  Latest Specification Information The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/ speeds and CD/DVD device types) may be changed, updated or delayed due to the manufacturer's release schedule. Check with your distributor/supplier for details.

  • Page 274: Processors

    Specifications Processors Intel® Core™ i5-4200M (2.5GHz) Display Mobile Processor Intel® Core™ i7-4900MQ (2.8GHz) 13.3" (33.78cm) FHD (1920 * 1080), 3M L3 Cache, 22nm (22 Nanometer), 16:9, 2.6mm - 2.8mm Thick Backlit Panel Mobile Processor DDR3L-1600MHz, TDP 37W 8M L3 Cache, 22nm (22 Nanometer), Video Adapter Options Intel®...

  • Page 275: Storage

    Specifications Storage One External Monitor Port Slot 3 for Full Size Mini-Card mSATA SSD (Solid State Drive) with SATA One Microphone-In Jack One Changeable 2.5", 9.5 mm (h) / 7 mm Interface) OR Full Size Mini-Card 3G One Headphone/Speaker-Out Jack (h) SATA (Serial) Hard Disk Module with USB Interface (Factory One RJ-45 LAN Jack...

  • Page 276: Bios

    Specifications (802.11b/g/n) Half Mini-Card PCIe WLAN Operating System Environmental Spec + Bluetooth V4.0+LE Combo Module Windows® 8.1 Temperature (Factory Option) ° ° Operating: C - 35 Features (802.11b/g/n) Half Mini-Card PCIe WLAN Non-Operating: -20°C - 60°C Module (Factory Option) Painted Style for some designs Relative Humidity Intel®...

Table of Contents
