Removing The Modem - EUROCOM M770CU Service Manual

Disassembly

Removing the Modem

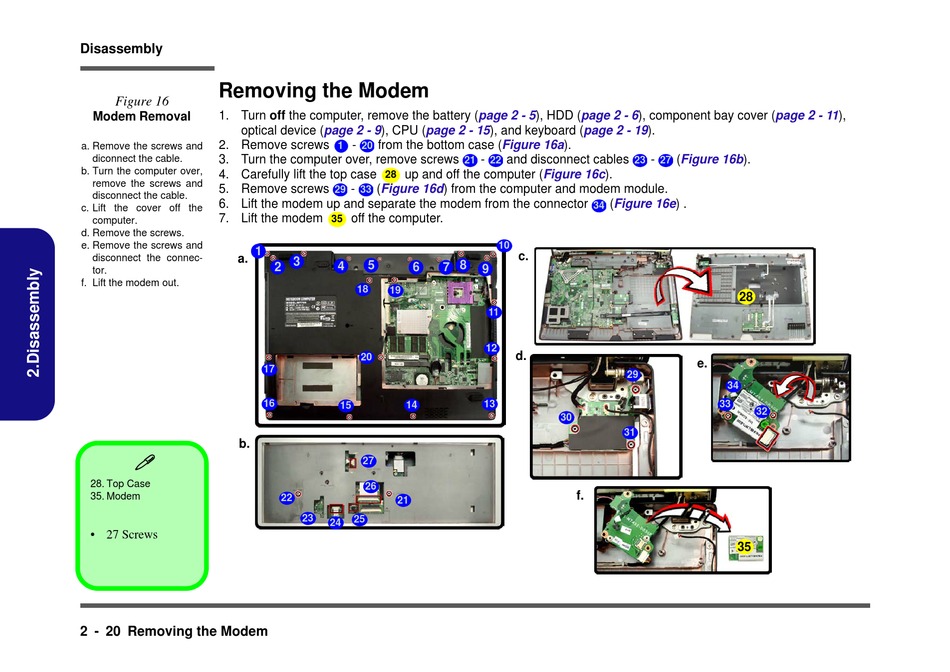

Figure 16
1. Turn off the computer, remove the battery
Modem Removal
optical device
2. Remove screws
a. Remove the screws and
diconnect the cable. 3. Turn the computer over, remove screws
b. Turn the computer over,
4. Carefully lift the top case
remove the screws and
5. Remove screws
disconnect the cable.
6. Lift the modem up and separate the modem from the connector
c. Lift the cover off the
7. Lift the modem
computer.
d. Remove the screws.
e. Remove the screws and
1
disconnect the connec- a.
tor.
f. Lift the modem out.
b.

28. Top Case
35. Modem
