EUROCOM M770CU Service Manual page 32

Disassembly
For W760CU/W765CU computers:

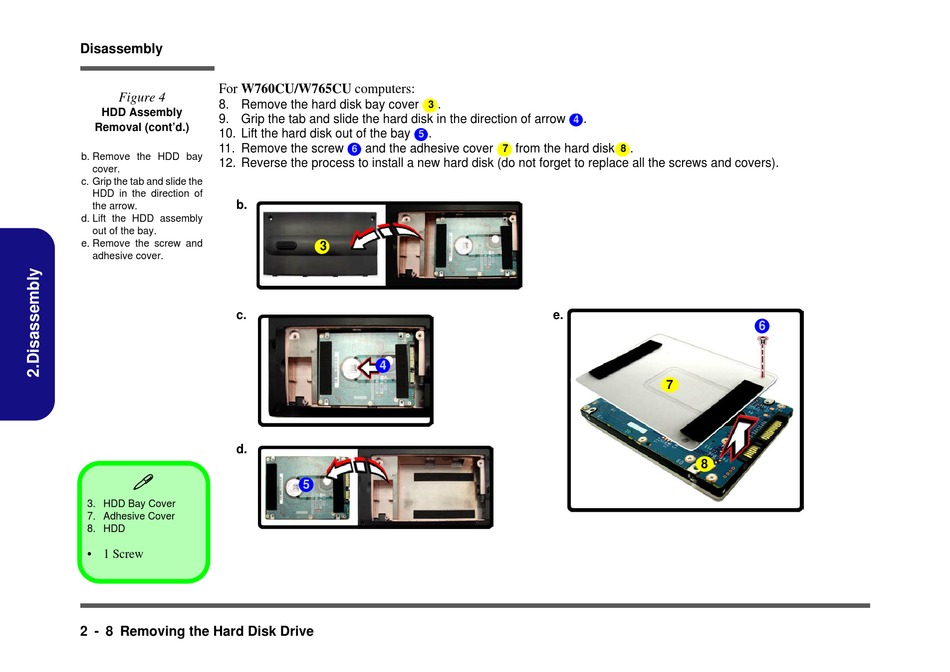

Figure 4
8. Remove the hard disk bay cover
HDD Assembly
9. Grip the tab and slide the hard disk in the direction of arrow
Removal (cont'd.)
10. Lift the hard disk out of the bay
11. Remove the screw
b. Remove the HDD bay
12. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
cover.
c. Grip the tab and slide the
HDD in the direction of
b.
the arrow.
d. Lift the HDD assembly
out of the bay.
e. Remove the screw and
adhesive cover.
c.
d.

3. HDD Bay Cover
7. Adhesive Cover
8. HDD
• 1 Screw
2 - 8 Removing the Hard Disk Drive
.
6 3
.
5
and the adhesive cover
6
3
4
5
.
4
from the hard disk .
7 6 8 6
e.
7
6
8
