EUROCOM M770CU Service Manual page 40

Disassembly

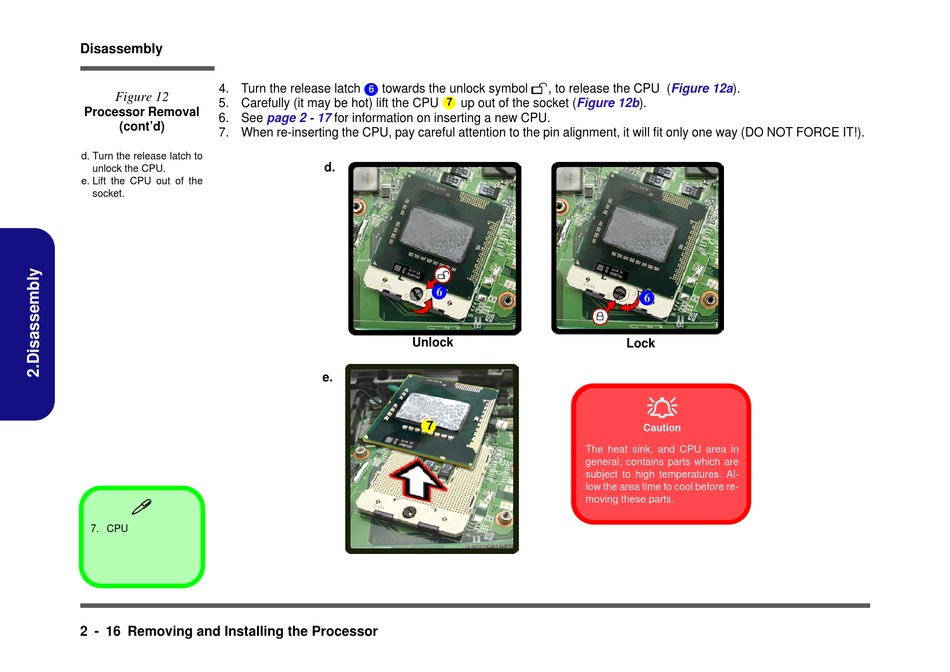

4. Turn the release latch
Figure 12
5. Carefully (it may be hot) lift the CPU
Processor Removal
6. See
(cont'd)
7. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
d. Turn the release latch to
unlock the CPU.
e. Lift the CPU out of the
socket.

7. CPU
2 - 16 Removing and Installing the Processor
towards the unlock symbol
6
page 2 - 17 for information on inserting a new CPU.
d.
6
Unlock
e.
7
, to release the CPU
7 up out of the socket (Figure 12b).
The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Al-
low the area time to cool before re-
moving these parts.
(Figure 12a).
6
Lock

Caution
