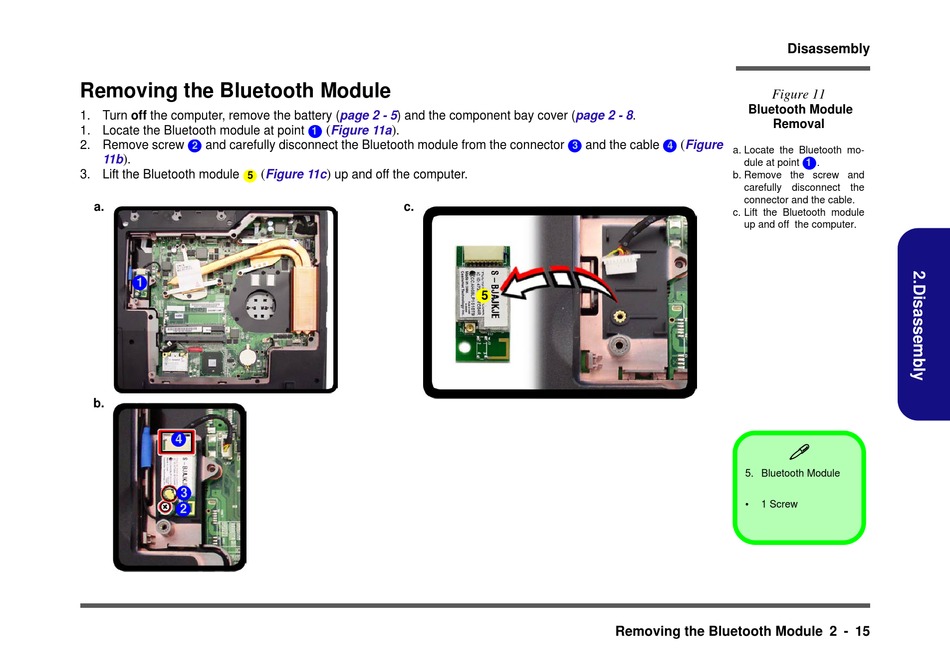

Removing the Bluetooth Module

1. Turn off the computer, remove the battery
1. Locate the Bluetooth module at point
2. Remove screw and carefully disconnect the Bluetooth module from the connector
2
11b ) .
3. Lift the Bluetooth module
5
a.
1
b.
4
3
2
(page 2 - 5) and the component bay cover
( )
Figure 11a .
1
( )
Figure 11c up and off the computer.
c.
(page 2 - 8.
and the cable
3
5
Removing the Bluetooth Module 2 - 15
Disassembly
Figure 11
Bluetooth Module
Removal
( Figure
4
a. Locate the Bluetooth mo-
dule at point 1 .
b. Remove the screw and
carefully disconnect the
connector and the cable.
c. Lift the Bluetooth module
up and off the computer.

5. Bluetooth Module
• 1 Screw
