Mainboard Overview - Bottom (Key Parts)

7
6
1
4
5
2
8
3
Mainboard Overview - Bottom (Key Parts) 1 - 9
Introduction

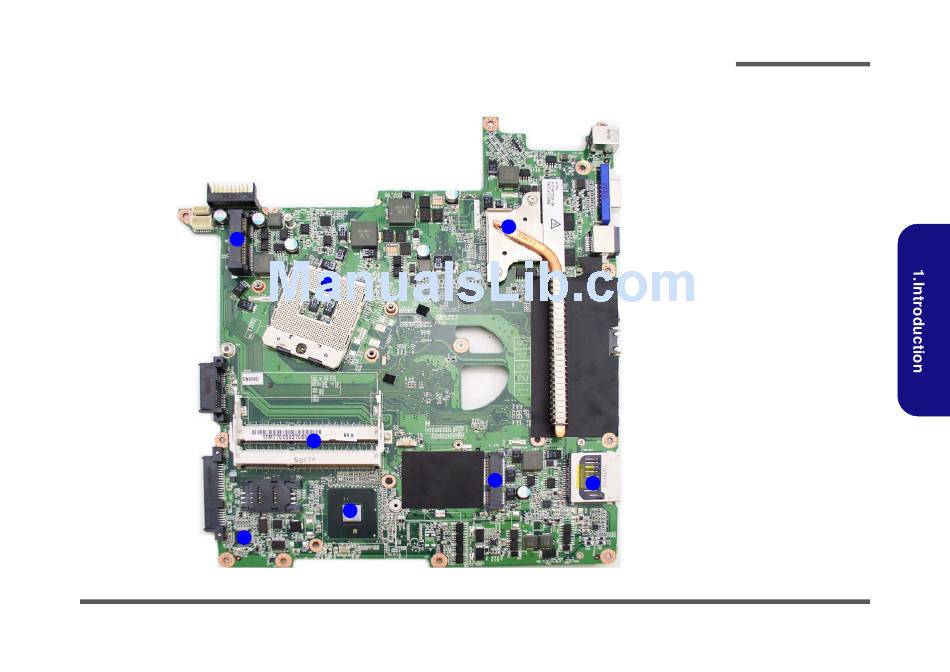

Figure 8
Mainboard Bottom
Key Parts
1. CPU Socket (no
CPU installed)
2. GPU ATI 4570
3. Card Reader
Socket
4. Memory Slots
DDR3 SO-DIMM
5. Intel PM55
6. Audio Codec
7. Mini-Card
Connector (WLAN
Module)
8. Mini-Card
Connector (3G
Module)
