Introduction

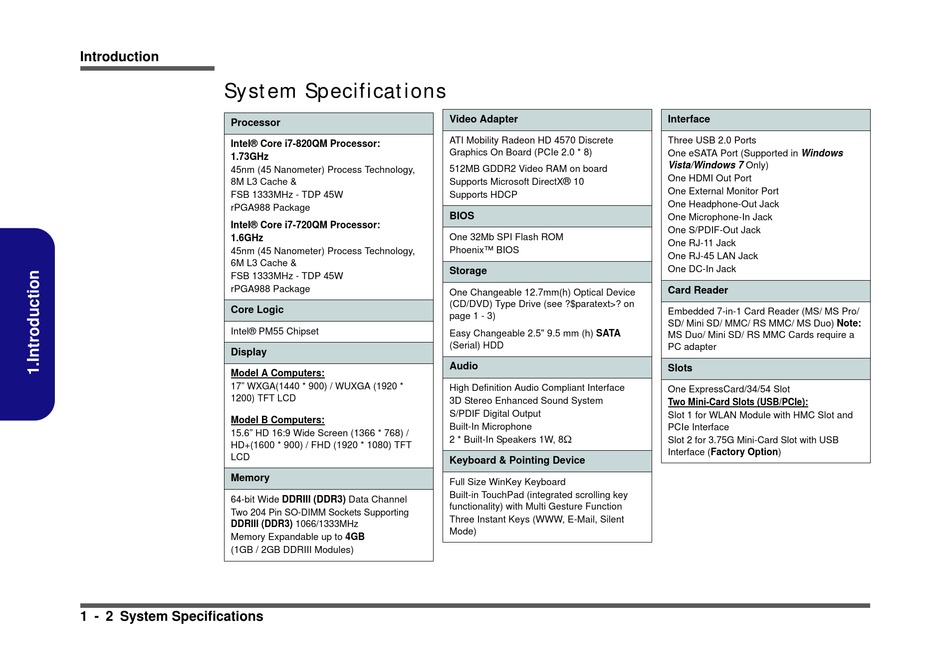

System Specifications

Processor
Intel® Core i7-820QM Processor:
1.73GHz
45nm (45 Nanometer) Process Technology,
8M L3 Cache &
FSB 1333MHz - TDP 45W
rPGA988 Package
Intel® Core i7-720QM Processor:
1.6GHz
45nm (45 Nanometer) Process Technology,
6M L3 Cache &
FSB 1333MHz - TDP 45W
rPGA988 Package
Core Logic
Intel® PM55 Chipset
Display
Model A Computers:
17" WXGA(1440 * 900) / WUXGA (1920 *
1200) TFT LCD
Model B Computers:
15.6" HD 16:9 Wide Screen (1366 * 768) /
HD+(1600 * 900) / FHD (1920 * 1080) TFT
LCD
Memory
64-bit Wide DDRIII (DDR3) Data Channel
Two 204 Pin SO-DIMM Sockets Supporting
DDRIII (DDR3) 1066/1333MHz
Memory Expandable up to 4GB
(1GB / 2GB DDRIII Modules)
1 - 2 System Specifications
Video Adapter
ATI Mobility Radeon HD 4570 Discrete
Graphics On Board (PCIe 2.0 * 8)
512MB GDDR2 Video RAM on board
Supports Microsoft DirectX ® 10
Supports HDCP
BIOS
One 32Mb SPI Flash ROM
Phoenix™ BIOS
Storage
One Changeable 12.7mm(h) Optical Device
(CD/DVD) Type Drive (see ?$paratext>? on
page 1 - 3)
Easy Changeable 2.5" 9.5 mm (h) SATA
(Serial) HDD
Audio
High Definition Audio Compliant Interface
3D Stereo Enhanced Sound System
S/PDIF Digital Output
Built-In Microphone

2 * Built-In Speakers 1W, 8
Keyboard & Pointing Device
Full Size WinKey Keyboard
Built-in TouchPad (integrated scrolling key
functionality) with Multi Gesture Function
Three Instant Keys (WWW, E-Mail, Silent
Mode)
Interface
Three USB 2.0 Ports
One eSATA Port (Supported in Windows
Vista/Windows 7 Only)
One HDMI Out Port
One External Monitor Port
One Headphone-Out Jack
One Microphone-In Jack
One S/PDIF-Out Jack
One RJ-11 Jack
One RJ-45 LAN Jack
One DC-In Jack
Card Reader
Embedded 7-in-1 Card Reader (MS/ MS Pro/
SD/ Mini SD/ MMC/ RS MMC/ MS Duo) Note:
MS Duo/ Mini SD/ RS MMC Cards require a
PC adapter
Slots
One ExpressCard/34/54 Slot
Two Mini-Card Slots (USB/PCIe):
Slot 1 for WLAN Module with HMC Slot and
PCIe Interface
Slot 2 for 3.75G Mini-Card Slot with USB
Interface (Factory Option)
