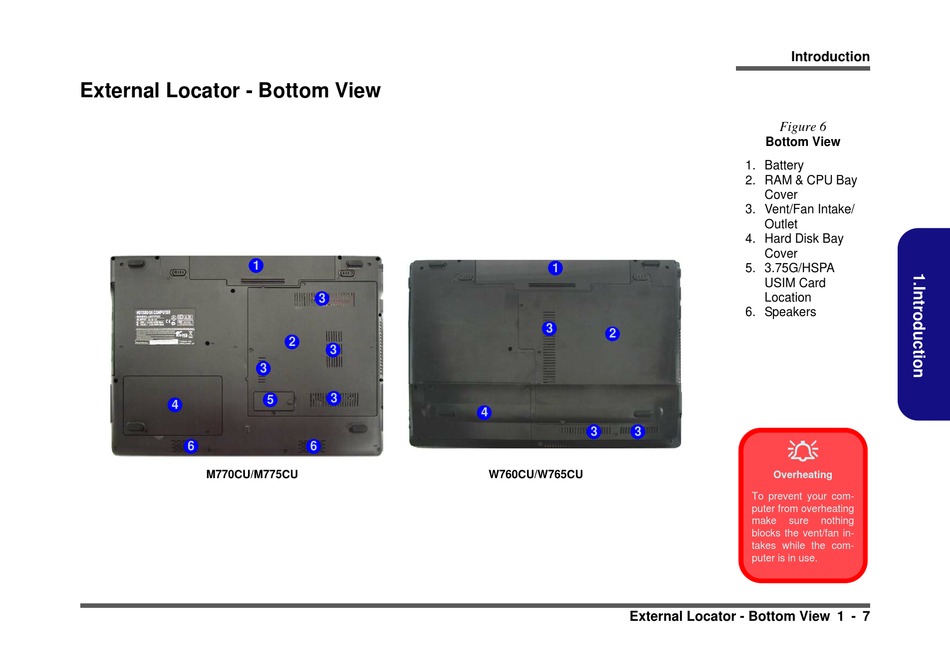

External Locator - Bottom View
1
4
6
M770CU/M775CU
3
2
3
3
3
5
6
1
3
2
4
3
3
W760CU/W765CU
External Locator - Bottom View 1 - 7
Introduction
Figure 6
Bottom View
1. Battery
2. RAM & CPU Bay
Cover
3. Vent/Fan Intake/
Outlet
4. Hard Disk Bay
Cover
5. 3.75G/HSPA
USIM Card
Location
6. Speakers
Overheating
To prevent your com-
puter from overheating
make
sure
nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
