Removing the Bluetooth Module

1. Turn off the computer, remove the battery
2. Locate the Bluetooth module at point
3. Carefully separate the Bluetooth module from the connector
4. Lift the Bluetooth module
5
a.
1
(page 2 - 5), and component bay cover
(Figure 9a), and remove the screw
1
3
up and off the computer ( Figure 9c
b.
4
3
2
(page 2 - 10).
(Figure 9b).
2
and disconnect the cable (Figure
4
) .
c.
Removing the Bluetooth Module 2 - 13
Disassembly

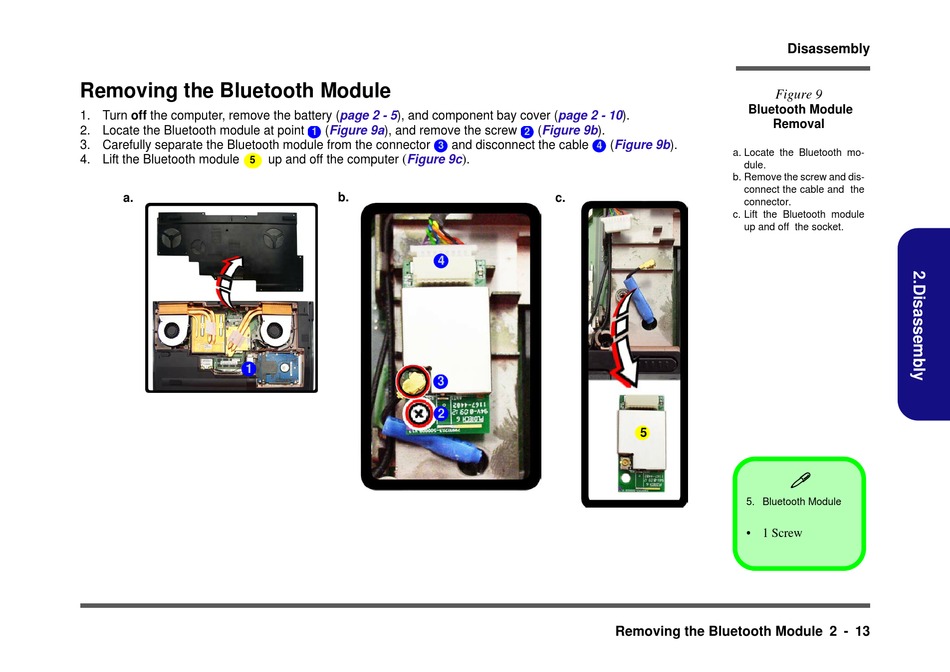

Figure 9
Bluetooth Module
Removal
9b).
a. Locate the Bluetooth mo-
dule.
b. Remove the screw and dis-
connect the cable and the
connector.
c. Lift the Bluetooth module
up and off the socket.
5

5. Bluetooth Module
• 1 Screw
