Removing and Installing the Processor

Processor Removal Procedure
1. Turn off the computer, remove the battery
module (page 2 - 14).
2. Loosen the CPU heat sink screws in the order
3. Carefully lift up the heat sink
a.
b.
3
2
1
(page 2 - 5), the component bay cover
, & (the reverse order as indicated on the label).
3 2 1
(Figure 11c) off the computer.
4
c.
Note: Loosen the screws in the reverse order
3, 2, 1 as indicated on the label.
(page 2 - 11) and the WLAN
4
Removing and Installing the Processor 2 - 15
Disassembly

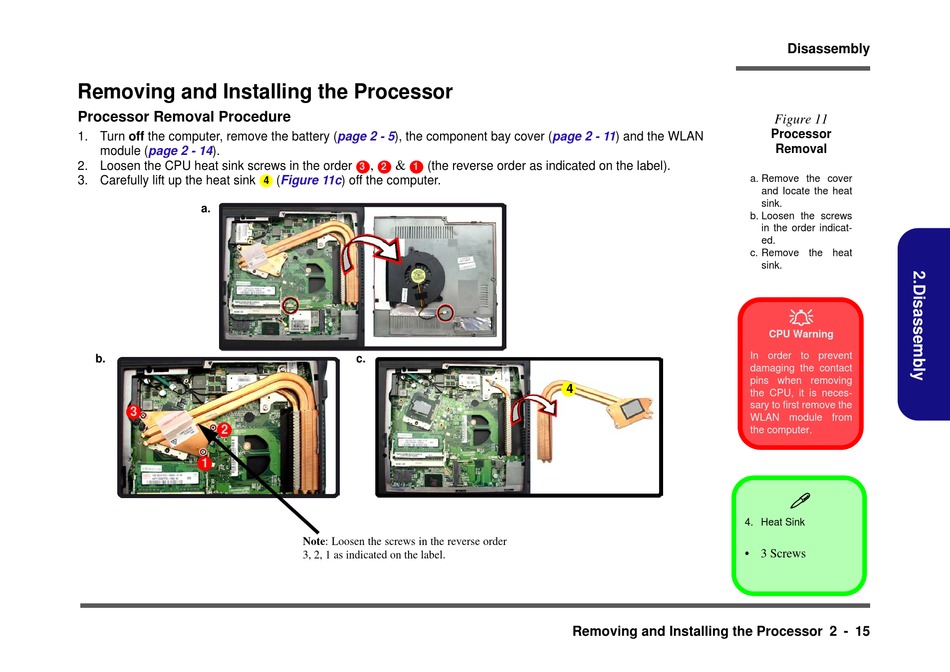

Figure 11
Processor
Removal
a. Remove the cover
and Iocate the heat
sink.
b. Loosen the screws
in the order indicat-
ed.
c. Remove the heat
sink.

CPU Warning
In order to prevent
damaging the contact
pins when removing
the CPU, it is neces-
sary to first remove the
WLAN module from
the computer.

4. Heat Sink
• 3 Screws
