Removing the Bluetooth Module

1. Turn off the computer, and turn it over, remove the battery
2. Remove the screw .
1
3. Carefully disconnect cables
4. Lift the Bluetooth module
4
a.
1
b.
3
2
(page 2 -
& .
3
2
off the computer.
c.
5), and hard disk (page 2 - 6).
4
Removing the Bluetooth Module 2 - 13
Disassembly

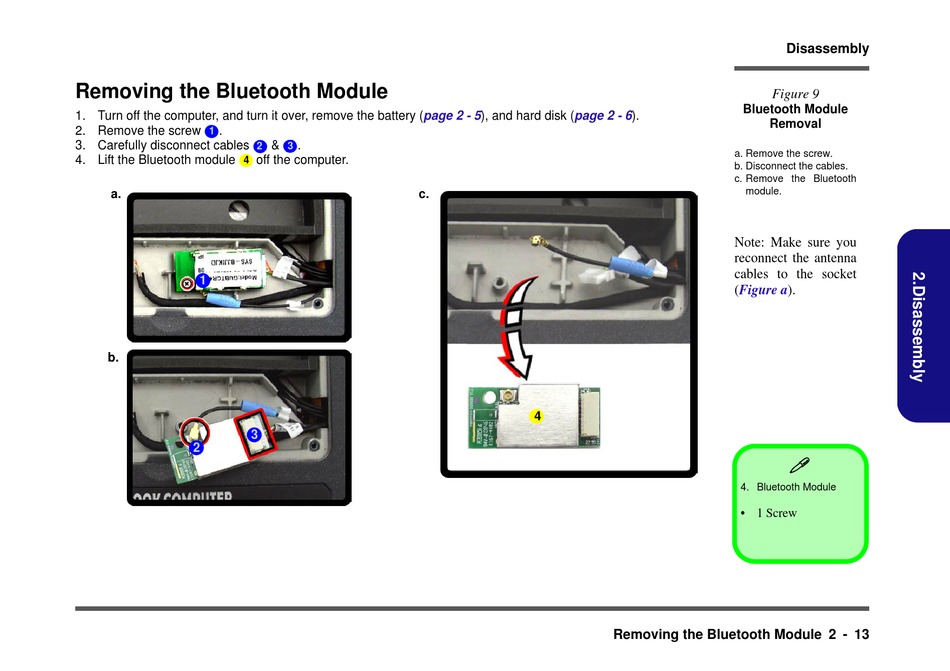

Figure 9
Bluetooth Module
Removal
a. Remove the screw.
b. Disconnect the cables.
c. Remove the Bluetooth
module.
Note: Make sure you
reconnect the antenna
cables to the socket
(Figure a).

4. Bluetooth Module
• 1 Screw
