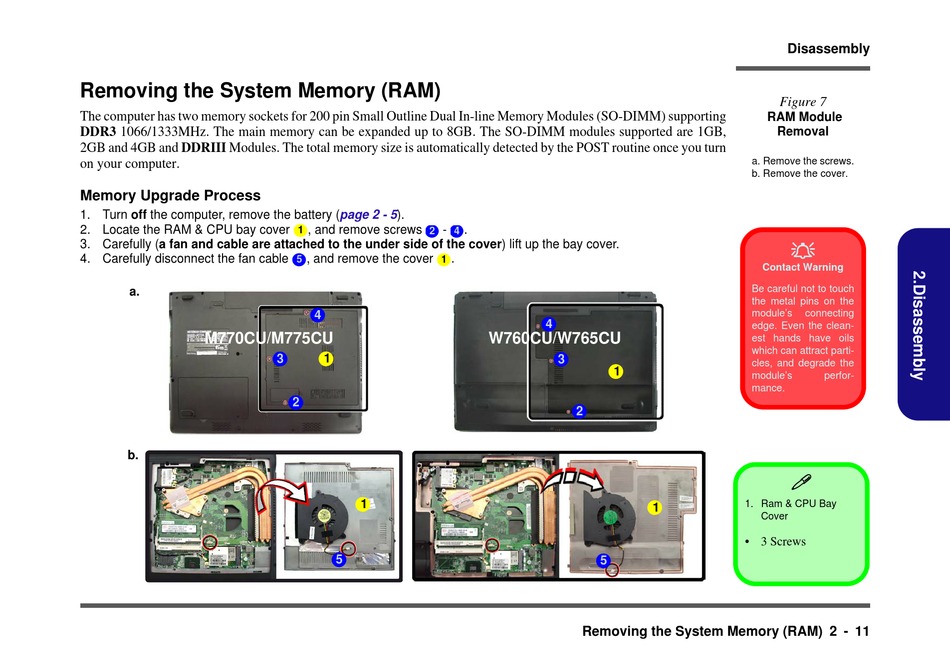

Removing the System Memory (RAM)

The computer has two memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDR3 1066/1333MHz. The main memory can be expanded up to 8GB. The SO-DIMM modules supported are 1GB,
2GB and 4GB and DDRIII Modules. The total memory size is automatically detected by the POST routine once you turn
on your computer.
Memory Upgrade Process
1. Turn off the computer, remove the battery
2. Locate the RAM & CPU bay cover
3. Carefully (a fan and cable are attached to the under side of the cover) lift up the bay cover.
4. Carefully disconnect the fan cable
a.
M770CU/M775CU
b.
(page 2 - 5).
, and remove screws -
1 2 4
, and remove the cover .
5 1
4
3 1
2
1
5
.
4
W760CU/W765CU
3
1
2
5
Removing the System Memory (RAM) 2 - 11
Disassembly
Figure 7
RAM Module
Removal
a. Remove the screws.
b. Remove the cover.

Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module's perfor-
mance.

1. Ram & CPU Bay
1
Cover
• 3 Screws
