Removing the Battery

1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow.
1
3. Slide the latch in the direction of the arrow, and hold it in place.
2
4. Slide the battery in the direction of the arrow
3
6
a.
b.
.
4
2
3
4
1
Disassembly

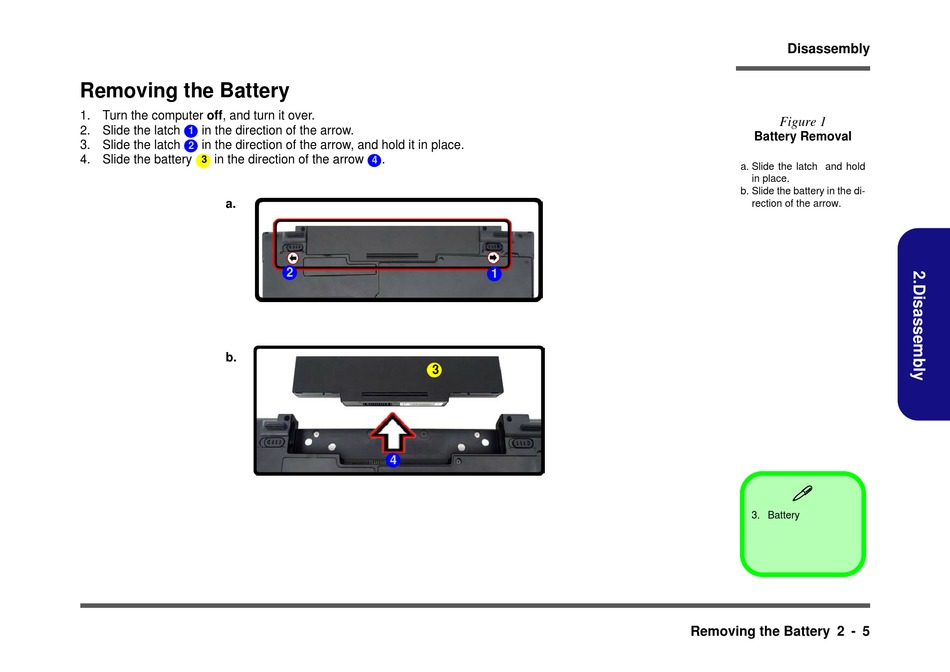

Figure 1
Battery Removal
a. Slide the latch and hold
in place.
b. Slide the battery in the di-
rection of the arrow.

3. Battery
Removing the Battery 2 - 5
