EUROCOM M770CU Service Manual page 31

For M770CU/M775CU computers:
3. Remove the hard disk bay cover
4. Grip the tab and slide the hard disk in the direction of arrow
5. Lift the hard disk out of the bay
6. Remove the adhesive cover
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
b.
3
c.
4
.
6 3
4
.
5
from the hard disk .
6 6 6 7
d.
5
.
e.
6
7

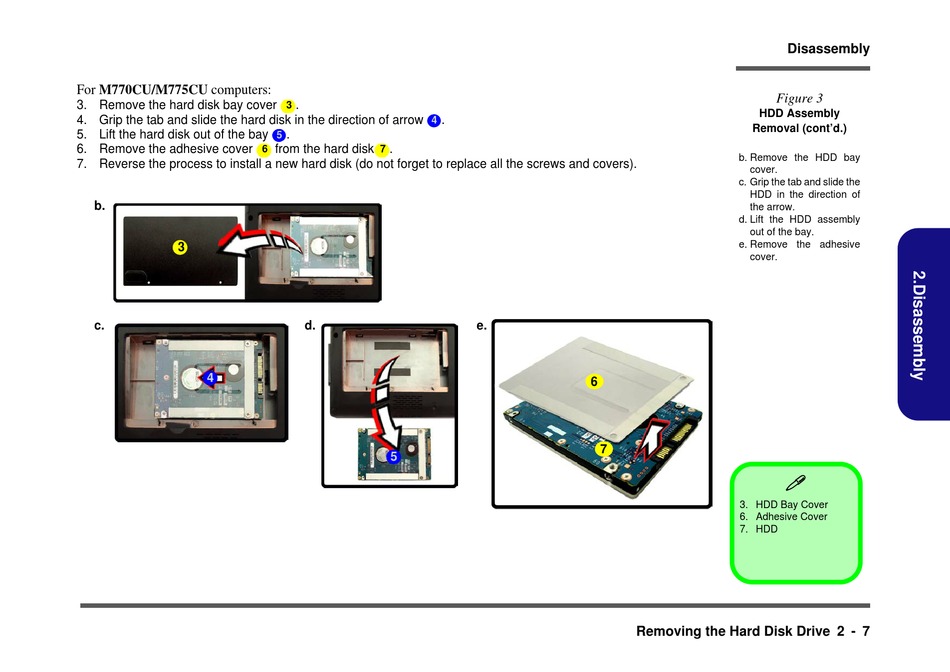

Disassembly
Figure 3
HDD Assembly
Removal (cont'd.)
b. Remove the HDD bay
cover.
c. Grip the tab and slide the
HDD in the direction of
the arrow.
d. Lift the HDD assembly
out of the bay.
e. Remove the adhesive
cover.

3. HDD Bay Cover
6. Adhesive Cover
7. HDD
Removing the Hard Disk Drive 2 - 7
