Rackmounting the Library

Chapter 1
Before you begin, lower the rack's leveler feet with the open-
WARNING
ended wrench, and extend the rack's anti-tip foot. Failure to
extend the anti-tip foot could result in personal injury or damage
to the tape library if the rack tips over.
Note
For easiest access to the display panel and to the tape drawers,
mount the top of the library in the middle of the rack or 120 cm
(48 in) above the floor.

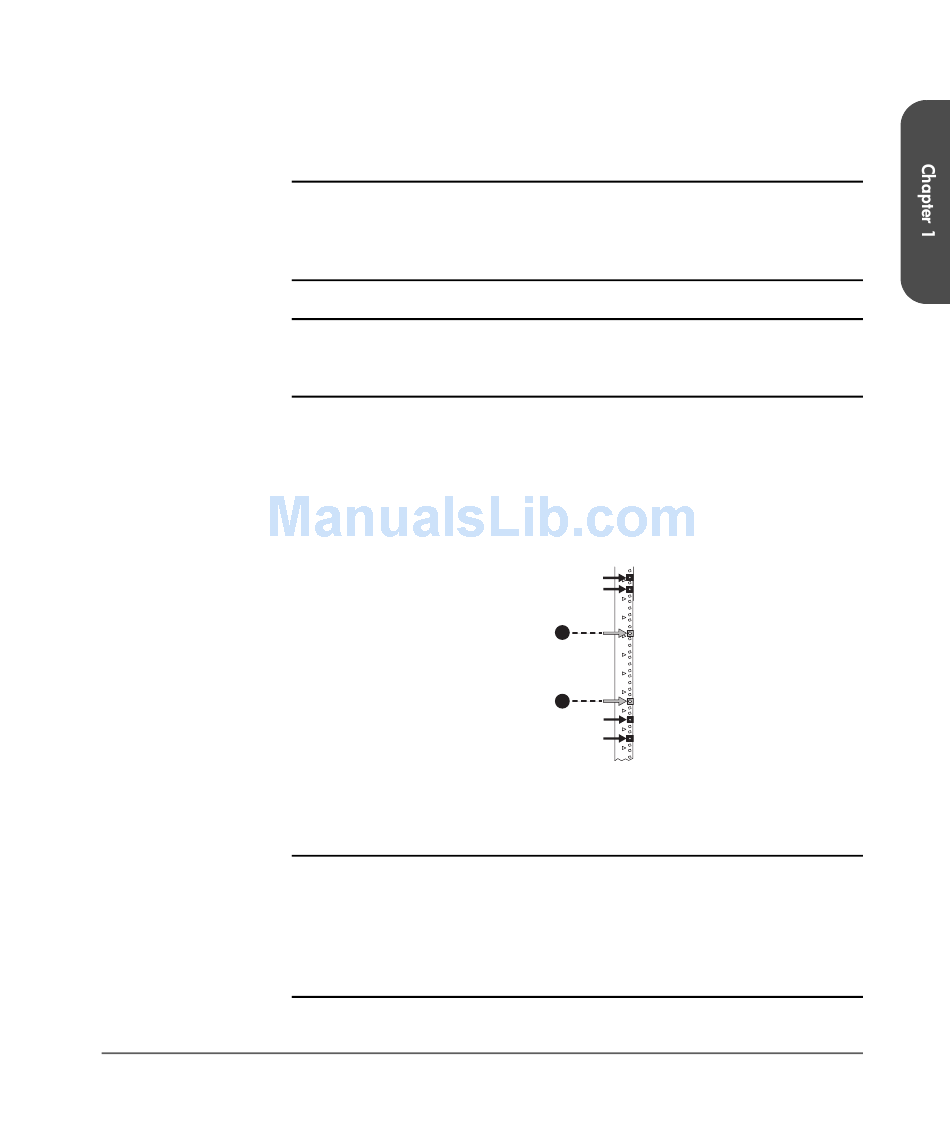

1. Use the template for your model library as a guide, and install five clip
nuts into each front column of the rack
page 20, or
Figure 5
upper grey clip nuts (item "a" below) are used for older HP racks (55-mm
bezel depth). The lower grey clip nuts (item "b" below) are used for flush-
mount racks.
Use the template as a guide, and install four clip nuts into each back
column of the rack.
Note
Use the EIA markers as a reference point to ensure that the holes
on the rack correspond to the holes on the template. The EIA
markers on the template are represented by #>. Your rack might
look different from the illustration. If the holes in the rack do not
align with the template, move the template up one or two holes
to create proper alignment.
Installing the 2/20, 4/40 & 6/60 Series Libraries into a Rack
(Figure 3
on page 21, depending on your library model). The
#
#
#
a
#
#
#
#
b
#
#
#
on page 20,
Figure 4
on
19
