Removing the Library Cover and Feet (2/20 & 4/40 Series
Only)

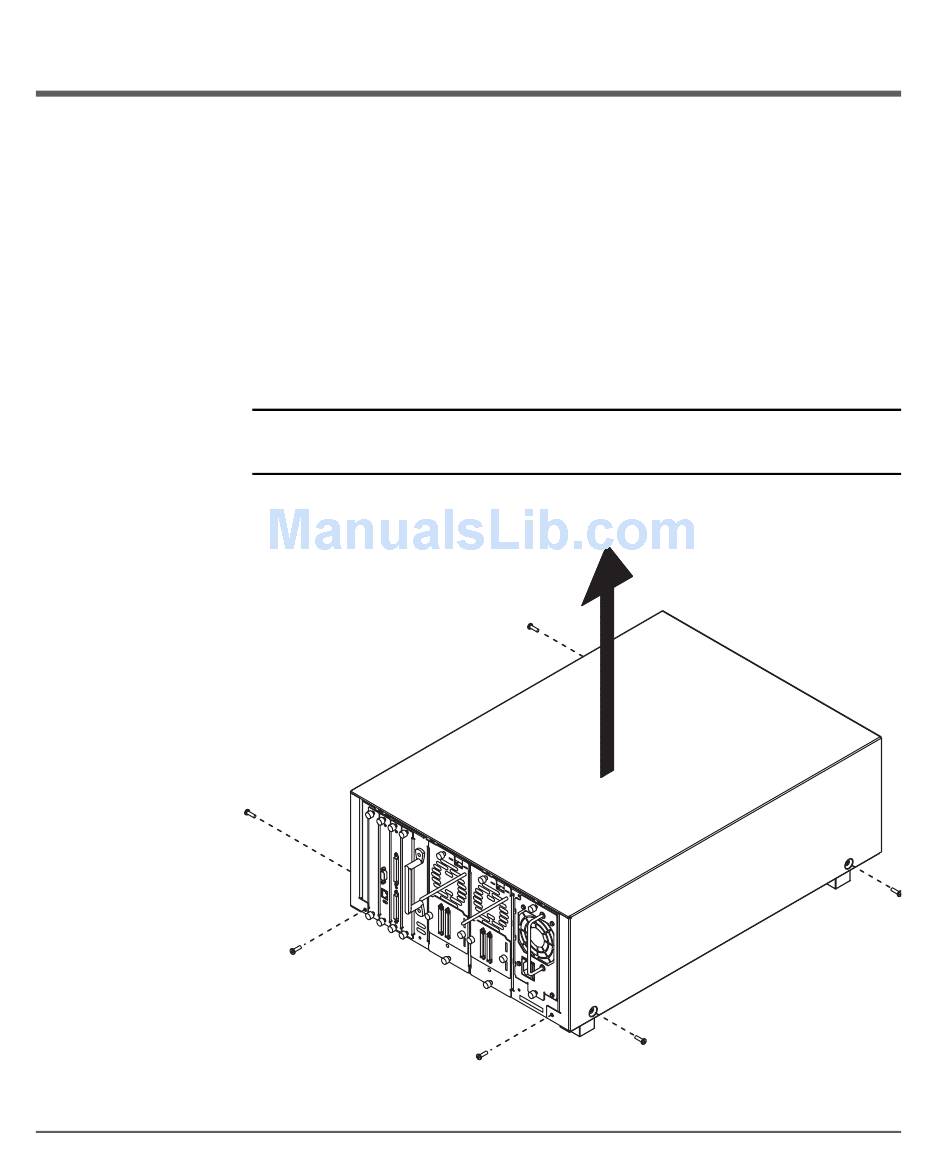

Figure 57
172 Removing the Library Cover and Feet (2/20 & 4/40 Series Only)
To install a stand-alone library in a rack, remove the cover and feet by
following these steps:
1. Remove the following six screws
a. Four screws, one located at each of the four feet
b. Two screws near the bottom of the library and in the back
2. Lift the cover off the library.
Note
The cover may fit tightly. If you cannot remove it easily, ease the
sides out while lifting up on the cover.
Removing the Cover
(Figure
57):
Chapter 5
