Peripheral Cables

This section provides information on peripheral cables and associated connections. See the
section, "Cable Routing and Pinouts," in Chapter 5, "System Board," for additional details.
Cable illustrations are not to scale. You can identify the cables and connectors using their
spacing as reference. Connectors for SCSI devices are spaced approximately 8 inches
(20 cm) apart.
CAUTION You must disable termination on any SCSI device you install internally. If you do not disable
termination, the system may fail to start or may behave erratically.
See "Device Locations" in Chapter 3, "Upgrading the System," for details on standard
peripheral locations.

Internal Wide Ultra SCSI Cable (MCBL348A)

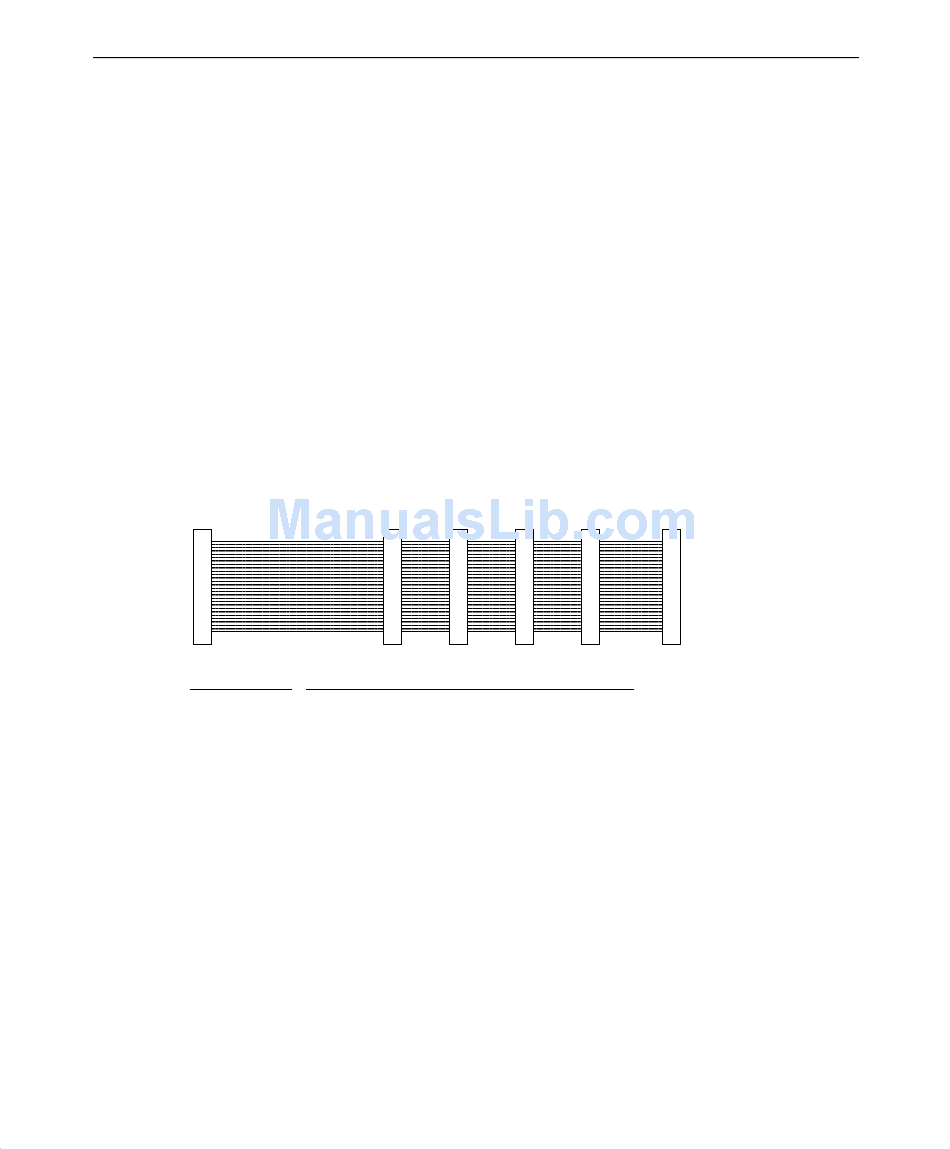

The following illustration and table show the cable connectors and the locations to which
they attach. This optional cable is approximately 57 inches (144 cm) long.
1
Connector
1
2
3
4
5
6
2 3
Connects To
J35, System Board
JBOD Disk at Location 1 (internal bay)
JBOD Disk at Location 2 (internal bay)
JBOD Disk at Location 3 (internal bay)
JBOD Disk at Location 4 (internal bay)
Active Terminator
4 5 6
