Cable Routing and Pinouts

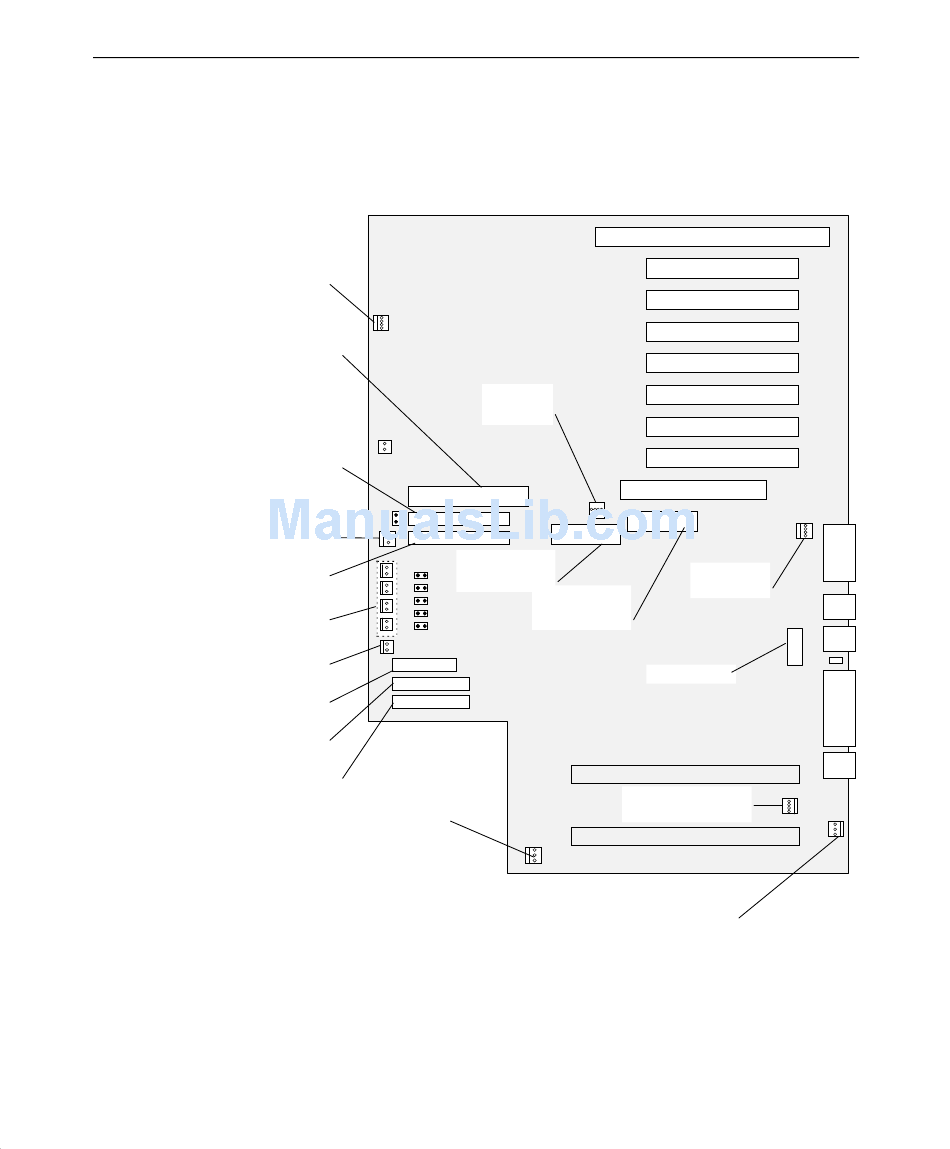

The following figure shows the cable connectors and other components on the system board.
Chassis Fan
SCSI - J44
External Ultra
Internal Wide Ultra
Chassis Intrusion - J36
Ultra SCSI - J35
nternal Wide (Optional
external on RAID
LED Connectors
Power Switch - J22
Floppy Drive - J18
Primary IDE - J16
Secondary IDE - J15
Secondary CPU Fan (optional) - J1
2 - J54
SCSI-J40
Fan - J39
Not Used
P1 - J34
Power Supply
P2 - J38
Power Supply
Chassis Fan 1 - J5
Not Used
Primary CPU Fan (optional) - J4
J37
CD Audio
Serial 2 - T1
67
