Iomega Jaz 1 GB SCSI Internal Drive (CDSK168)

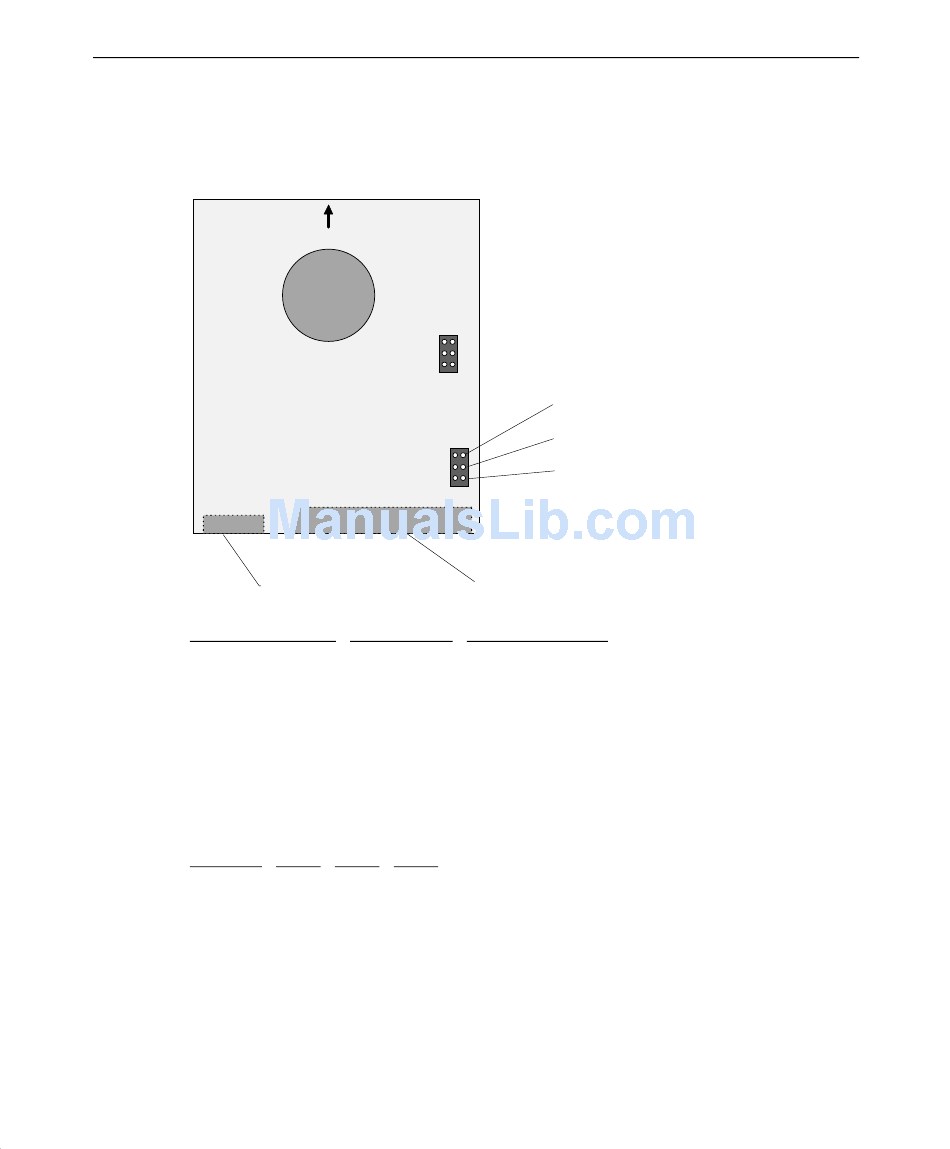

The following figure shows the jumpers on the bottom of the drive.
Power Connector
Device Connector
Power
SCSI
The drive is not terminated and requires external termination only if installed as the last
device on the SCSI chain.
Use jumpers as defined in the following table to set the SCSI ID. The factory default address
is SCSI ID 5.
SCSI ID
0
1
2
3
4
5
6
Front
Cable
MCBL145A
MCBL338A
ID1
ID2
ID4
OFF
OFF
OFF
ON
OFF
OFF
OFF
ON
OFF
ON
ON
OFF
OFF
OFF
ON
ON
OFF
ON
OFF
ON
ON
ID4
ID2
ID1
SCSI Connector
Connects to
Power Supply
J44, System Board
