Peripheral Cables

This section informs you of peripheral cable connectors and the system bay locations to
which they attach. Cable illustrations are not to scale. You can identify the cables and
connectors using their spacing as reference. See "Device Bays" in Chapter 3, for details on
standard peripheral locations.

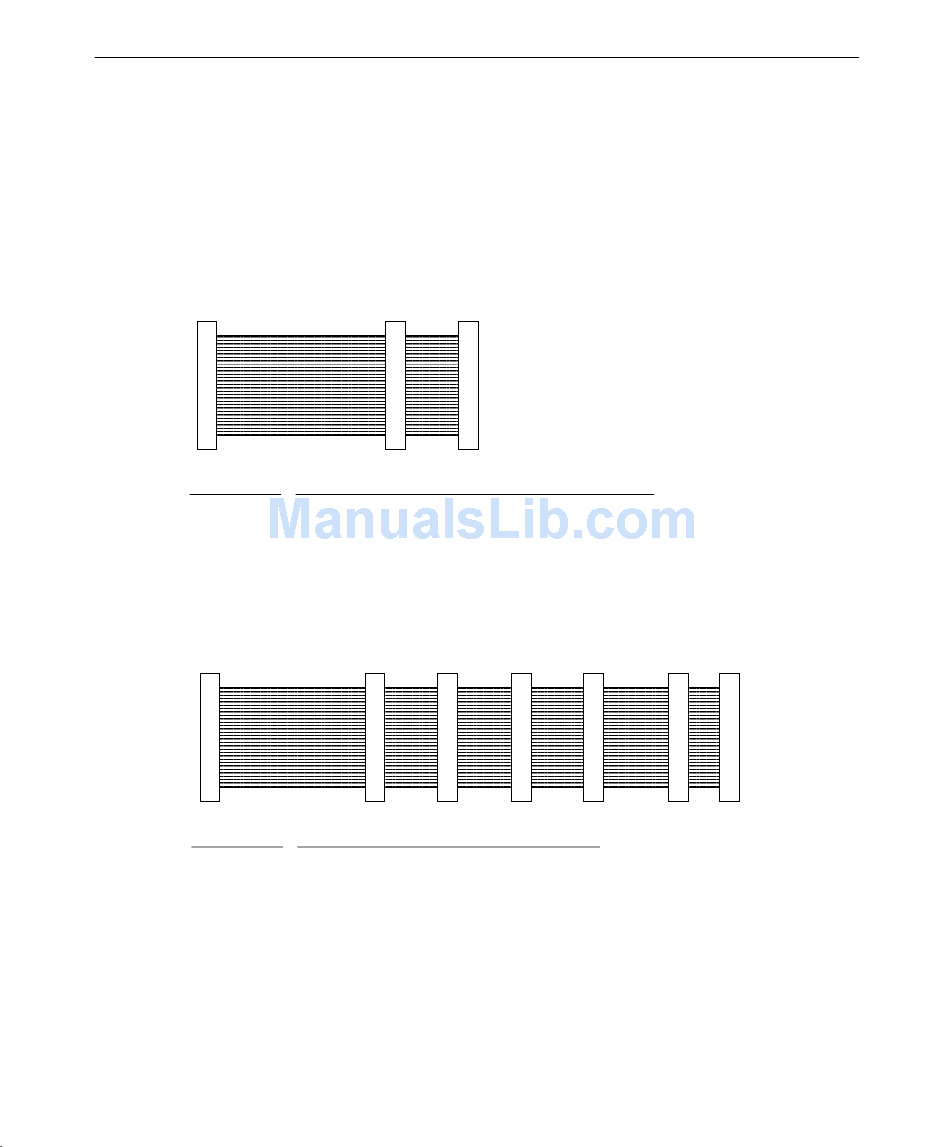

EIDE Cable (MCBL252A)

1
Connector
1
2
3

Internal Wide Ultra SCSI Cable (MCBL316A)

1
Connector
1
2
3
4
5
6
7
2 3
Connects To
J7 (Primary); J8 (Secondary), System Board
Device at Bay 5 (external bay)
Device in internal/external bay (primary)
EIDE CD-ROM CDSK177 at Bay 7 (secondary)
2 3
Connects To
SCSI controller
System Disk at Location 1 (internal bay)
Disk at Bay 2 (internal bay)
Disk at Bay 3 (internal bay)
Device at Bay 4 (external bay)
Device at Bay 5 (external bay)
Active Terminator
4 5 6 7
