2. Disconnect the floppy cable and power cable from the drive. If the combo drive is
installed (not shown), also disconnect the two ISA bus cables (not shown). Note the
position of the red stripe on the floppy cable and ISA bus cables. The cables must be
installed on the new drive in the same orientation.

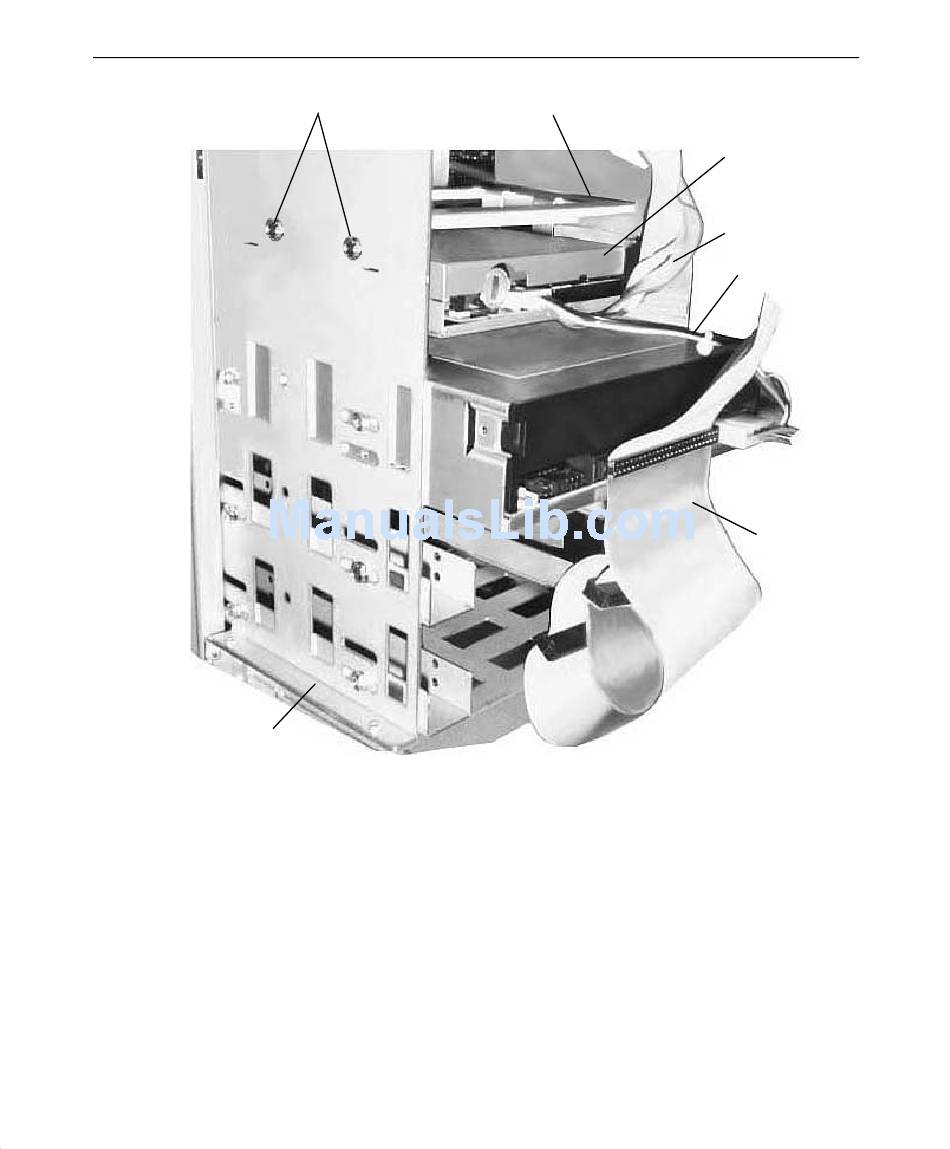

3. The drive is secured to the system using a bracket that extends to the sides of the
peripheral cage. Using a quarter-inch nutdriver, remove and retain the screws (two each
side) from the peripheral cage as shown above.
4. Disconnect the EIDE cable attached to the CD-ROM drive.
5. Lift up the floppy disk drive and slide it back, then out the side of the system.
6. Remove and retain the four screws (two each side) from the bracket.
Bracket
9
Floppy Disk
Drive
Floppy Cable
Power Cable
EIDE Cable
