7. Slowly pull the RAID disk drive section out of the base unit.
8. Verify that the jumper settings on the back of the replacement RAID disk drive section
match the one being replaced.
NOTE If the system uses the AMI RAID controller, the jumper connectors JP2 and JP3 must not
have any jumpers installed.
9. Insert the new RAID disk drive section and secure it with the screws removed earlier.
10. Reattach the LED cable and the LCD cable to the RAID disk drive section.
11. Reattach the SCSI and power cables to the backplane.
CH 0 on the RAID controller or Ultra Wide SCSI controller must be attached to the
CH 0 connector on the disk section, and same for CH 1.
The order of the power cables is not critical.

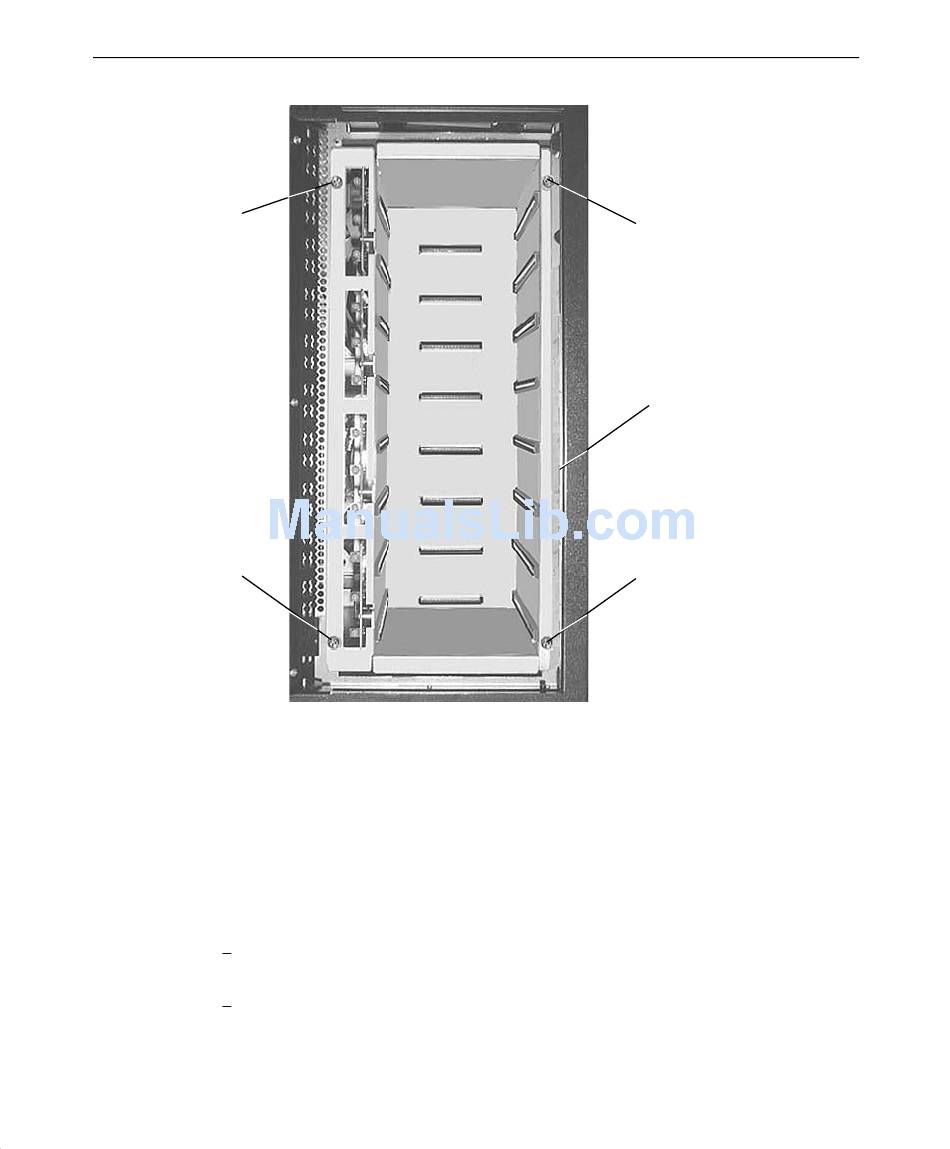

Screw
