External Ports

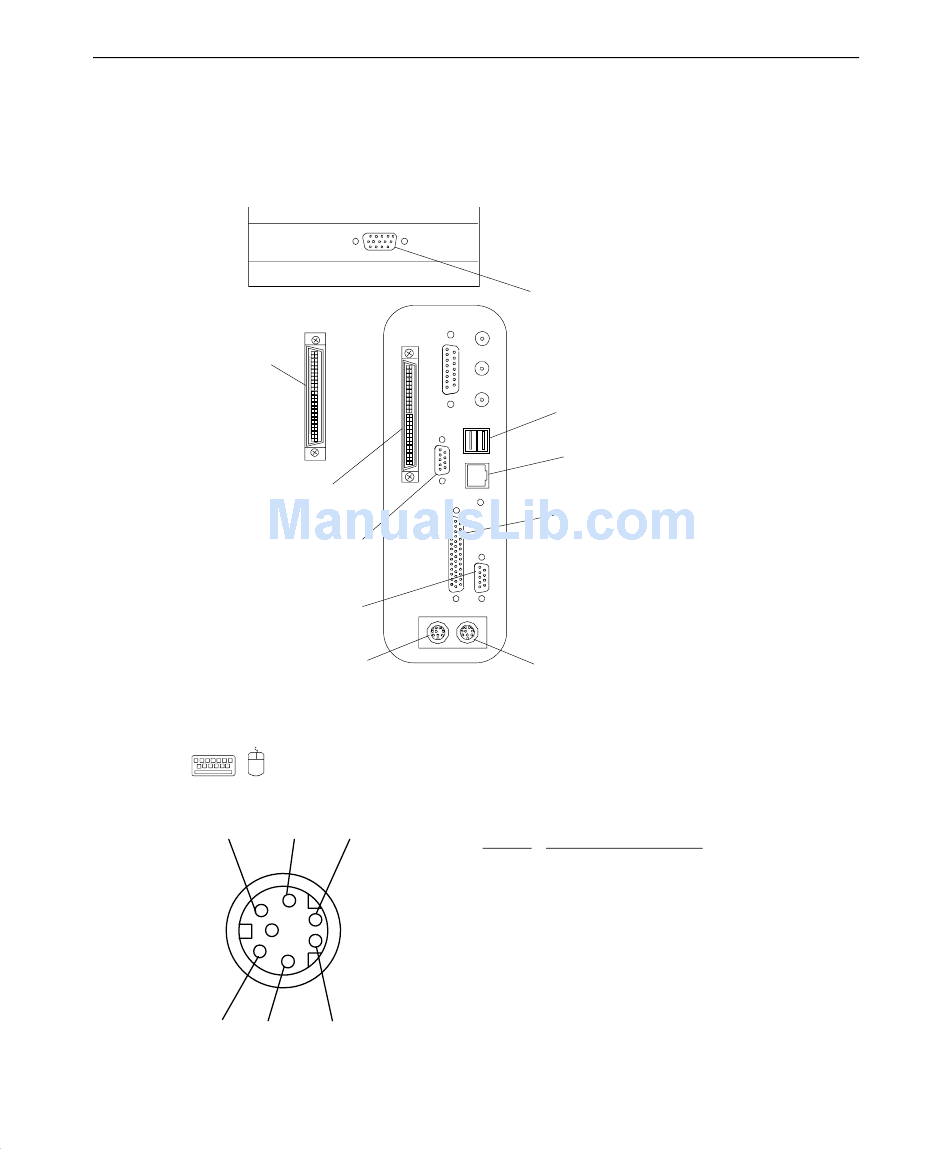

The following figure shows the external ports on the back of the unit.
Ultra SCSI
Wide Ultra SCSI
(optional)
Keyboard, Mouse
The Keyboard and Mouse ports are PS/2 style, 6-pin ports. They are not
interchangeable.
2
1
3
Serial
(COM 2)
Serial
(COM 1)
Mouse
4
6
5
Video Out
USB 1 & 2
Ethernet
Parallel
Keyboard
Pin
Signal
1
KDATA (keyboard)
MDATA (mouse)
2
Spare
3
Ground
4
VCC
5
KCLK
6
Spare
73
