76

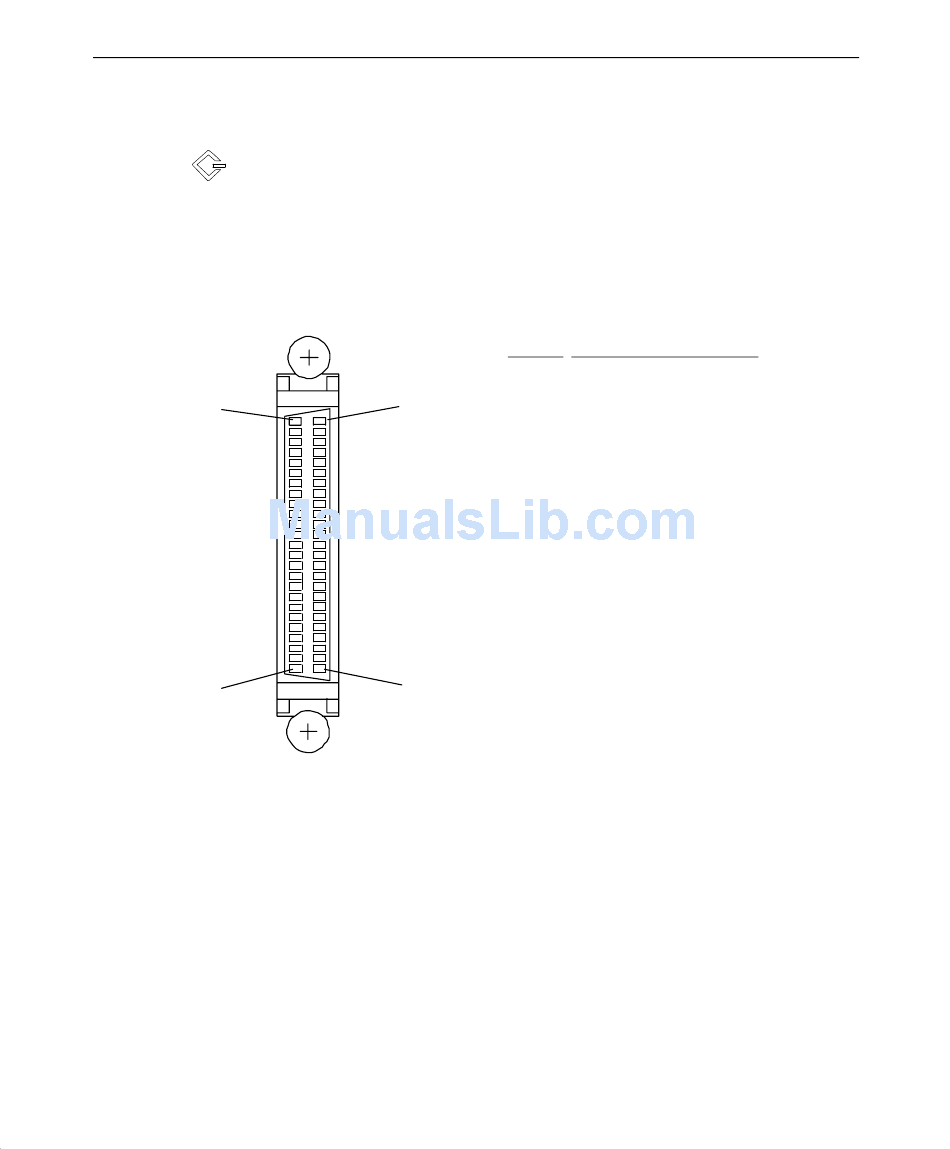

External Wide Ultra SCSI
The External Wide Ultra SCSI port (standard) connects external SCSI devices, such as
tape drives or hard disks, to the computer. The maximum sustainable data transfer rate is 20
MB per second.
NOTE
On JBOD systems, this port is not used. It is optional only on RAID systems
50
26
NOTE
Pins 12, 13, 14, 37, and 39 are not connected; other pins not listed are connected to ground.
Pin
Signal
26
Command Data-0
27
Command Data-1
25
28
Command Data-2
29
Command Data-3
30
Command Data-4
31
Command Data-5
32
Command Data-6
33
Command Data-7
34
Command Data Parity
38
Terminator Power
41
Attention
43
Busy
1
44
Acknowledge
45
Reset
46
Message
47
Select
48
Command
49
Request
50
Input/Output
