Floppy Disk Drive (CDSK146)

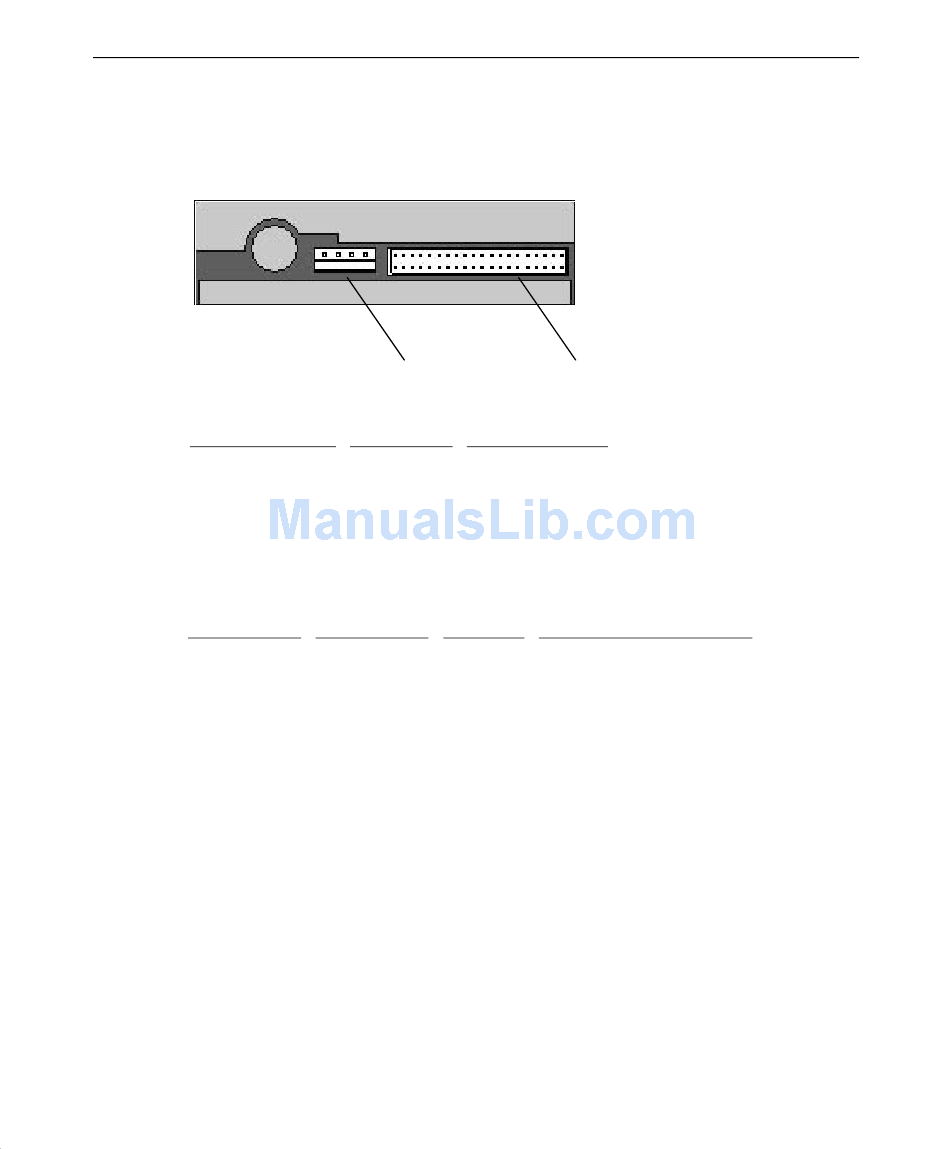

The following figure shows the cable connectors on the back of the floppy disk drive.
Device Connector
Power
Data

Disk Drives

You can use any of the following SCSI disk drives in the system:
Part Number
FDSK538
FDSK571
FDSK539
FDSK570
The following figure shows the jumper connectors J2 and J6 on the 7,200 RPM 4.3 GB disk
drive. Remove the drive from its bracket to access J2. The RAID disk drives use one
connector that carries power, data, and SCSI ID signals. This connector plugs into the
connectors in the backplane of the RAID subsystem
Power
Connector
Cable
Connects to
MCBL206A
Power Supply
MCBL106A
J18, System Board
Part Number
RPM
CDSK153
7,200
CDSK124
7,200
CDSK154
7,200
CDSK470
7,200
Floppy Data
Connector
Capacity
4.3 GB
4.3 GB with SCA connector
9.1 GB
9.1 GB with SCA connector
