Before you install memory, do the following:
u
Inspect DIMM keying. The finger contacts on the DIMM must match the socket
configuration. This ensures that you have the correct voltage and type of DIMM.
u
Inspect DIMM contacts. The DIMM must have gold-plated fingers that match the gold-
plated socket contacts.
The following table shows possible memory configurations. Each bank contains one socket.
NP designates the bank is not populated.
Memory Bank 0
32 MB 32 MB
64 MB 64 MB
128 MB 64 MB
128 MB
256 MB 64 MB
64 MB
128 MB
512 MB 128 MB
To install the memory upgrade:
1. Remove the left side panel. See Chapter 1, "Accessing the Components," for details.

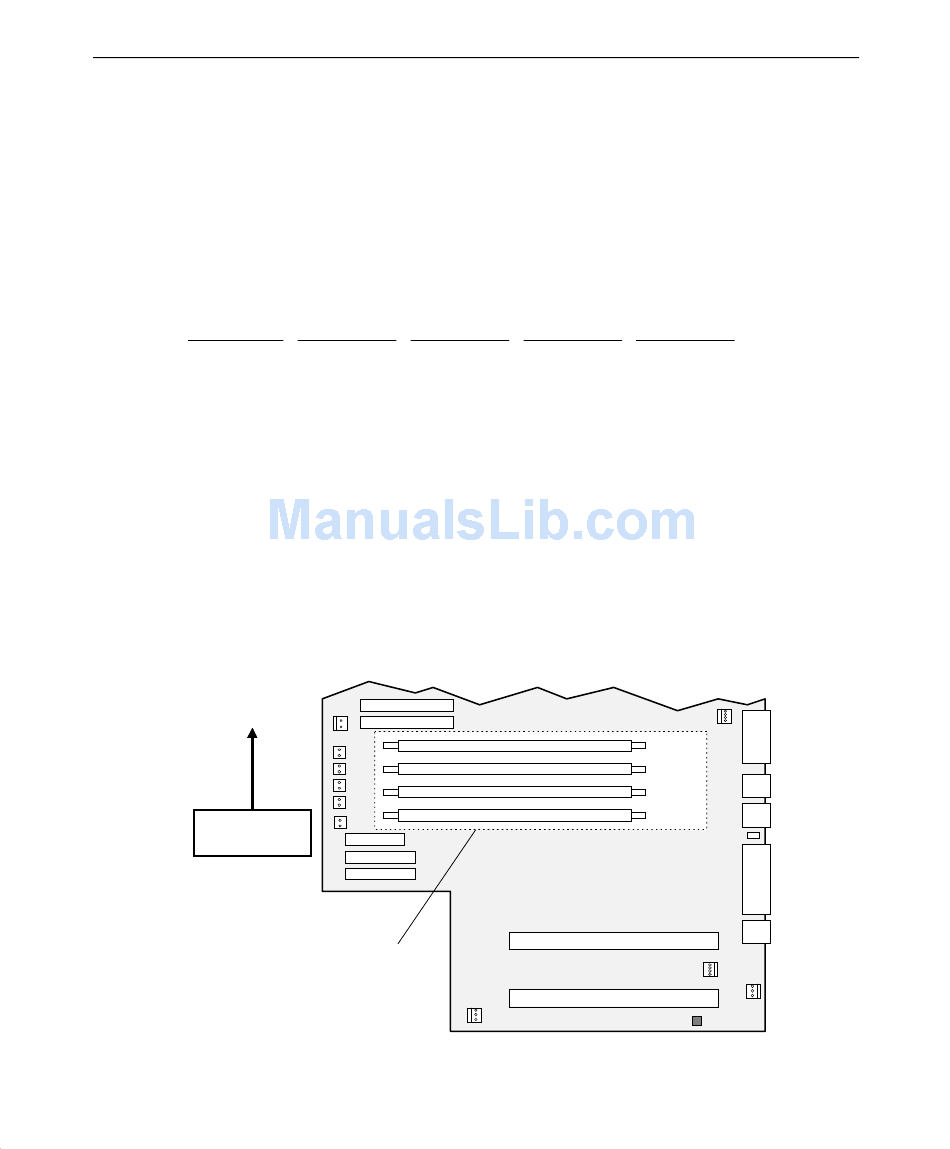

2. Locate the memory sockets (SDRAM DIMM slots) on the system board.
Population
Sequence
Memory Sockets
(SDRAM DIMM Slots)
Bank 1 Bank 2
NP NP
NP NP
64 MB NP
NP NP
64 MB 64 MB
64 MB 128 MB
128 MB NP
128 MB 128 MB
Bank 3
NP
NP
NP
NP
64 MB
NP
NP
128 MB
Bank 3
Bank 2
Bank 1
Bank 0
