Jumper Connectors
The following table shows the jumper settings for CPU frequency. The jumpers are located
to the right of the DIMM slots. See the system board diagram earlier in this chapter for
details.
NOTE
The system must be running BIOS version 8870F or higher to support a 333 MHz Pentium II
processor. Earlier BIOS versions do not support frequencies higher than 300 MHz.
Jumper
J21
J27
J28
J31

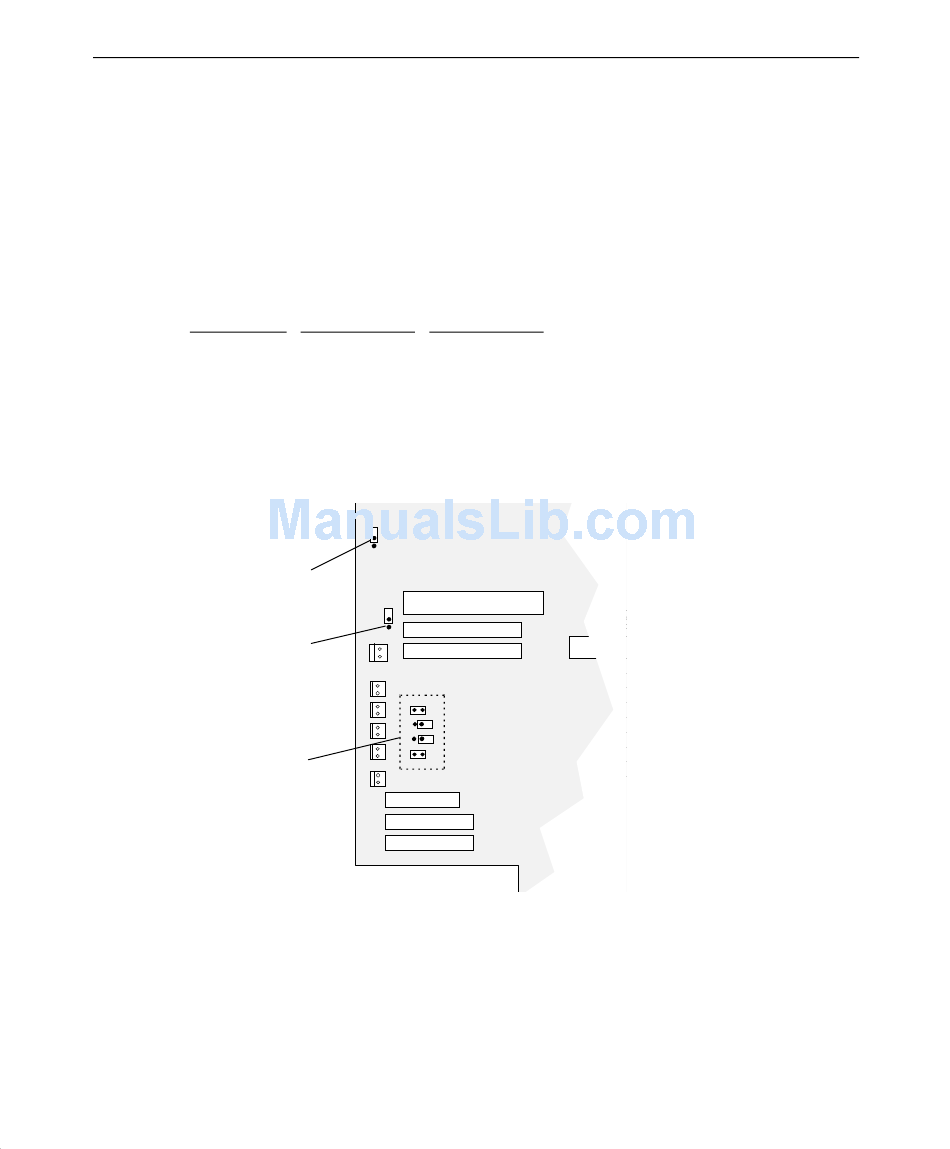

The following figure shows the jumper locations on the system board.
Password
Clear
SCSI Term
CPU Frequency
300 MHz
333 MHz
On
Off
Off
Off
Off
On
On
On
71
