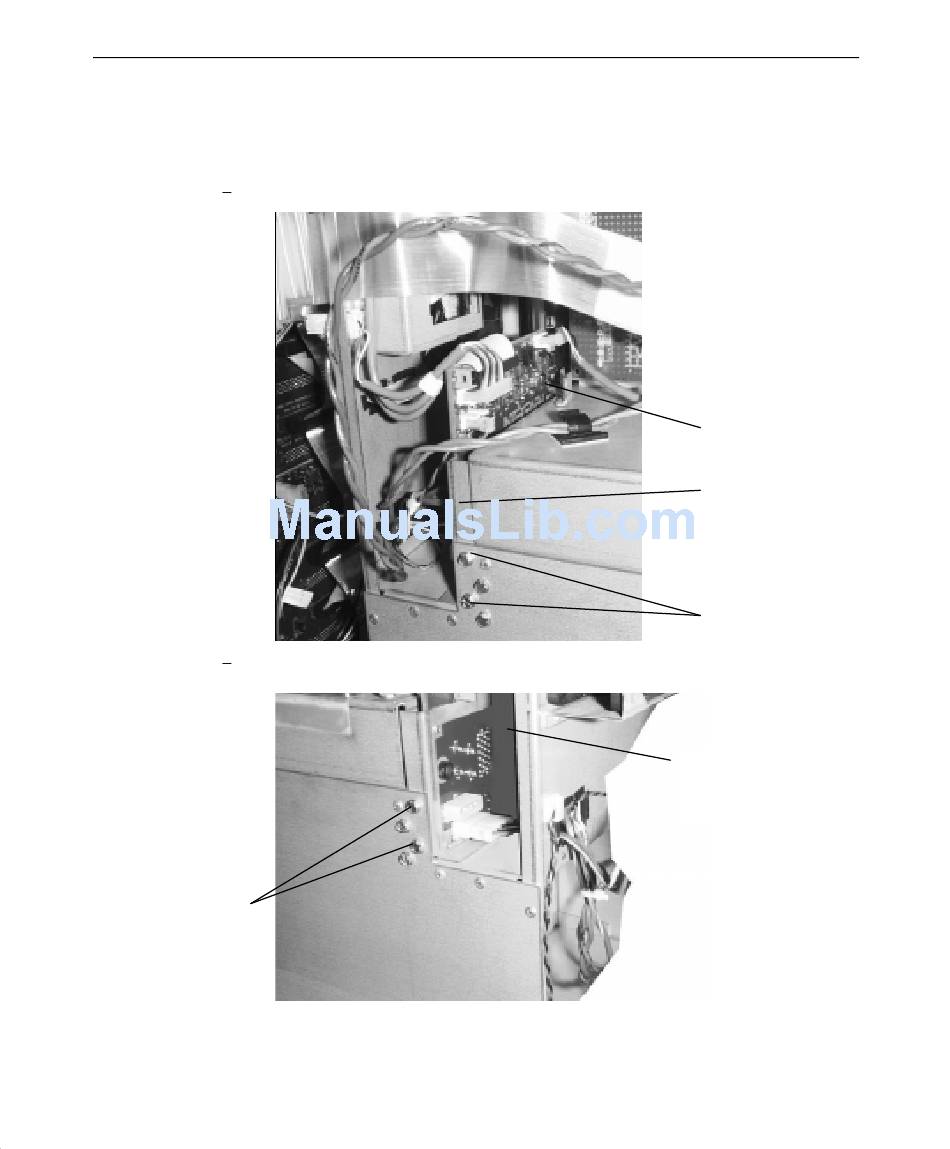

2. Remove the cables and screws attached to the power distribution board as shown in the
following figures. Four screws (two on each side) secure the power distribution board to
the chassis.
Right side
Left side
Screws
3. If replacing one of the hot swap power supplies (MSMT498), disconnect the AC ground
wires from the ground lug as shown in the following figure.
19
Power Distribution
Board
Bracket
Screws
Power
Distribution
Board
