40 GB 8 MM Tape Drive (CMTP169)

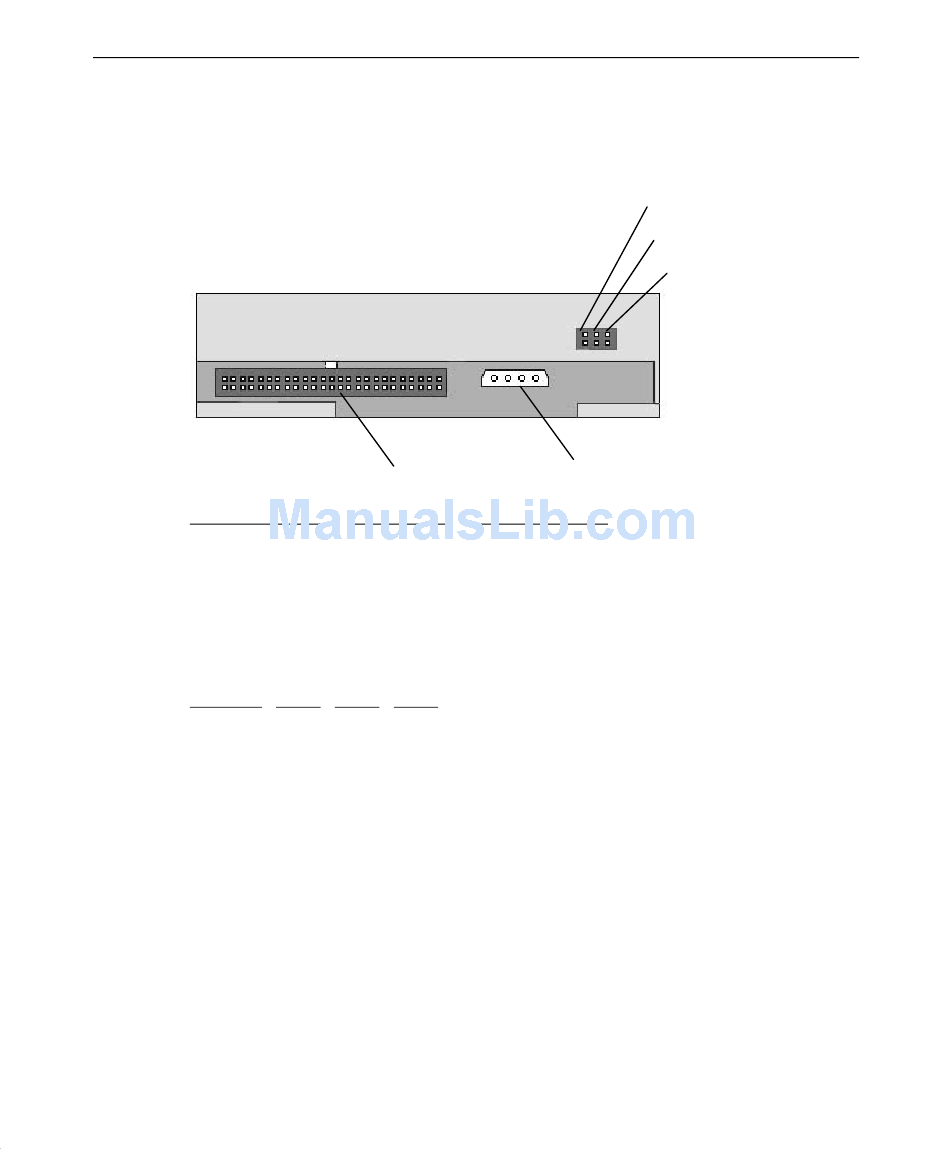

The following figure shows the back of the tape drive.
Device Connector
Power
SCSI
SCSI termination is permanently disabled.
Use jumpers as defined in the following table to set the SCSI ID.
SCSI ID
0
1
2
3
4
5
6
SCSI Connector
Cable
MCBL145A
MCBL338A
ID0
ID1
ID2
OFF
OFF
OFF
ON
OFF
OFF
OFF
ON
OFF
ON
ON
OFF
OFF
OFF
ON
ON
OFF
ON
OFF
ON
ON
Power Connector
Connects to
Power Supply
J44, System Board
ID2
ID1
ID0
87
