Ac Section (Mesan590) - Intergraph InterServe 800 System Reference Manual

14
12. Insert the disk drives into the system. The drives should be installed in the same slots
from which they were removed.
13. Replace the side panels.
14. Restart the system and ensure the LED for each drive lights and remains steady green.
If not, refer to the System Setup for status LED information.

AC Section (MESAN590)

The AC section is used only in systems with dual 550 Watt power supplies.
To replace the AC section:
1. Turn OFF the circuit breaker and disconnect the power cord.
2. If the system is in a rack, slide it out of the rack.
3. Remove the left side panel.
4. Disconnect the AC input wires.
5. Remove the screw securing the AC box (located adjacent to the AC input wire plug.
6. Slide the AC section out toward the front of the system. After moving only an inch or so
the AC section will be released from the chassis.

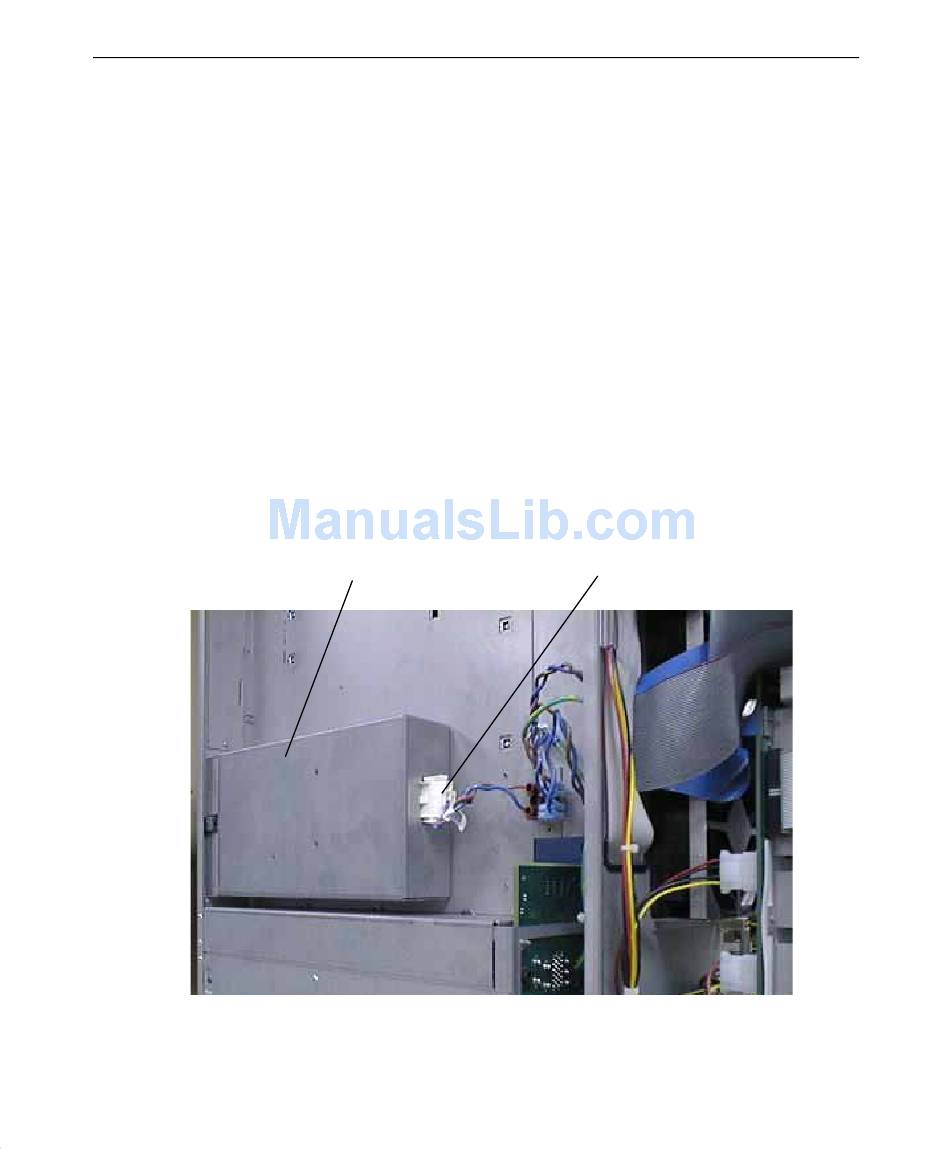

AC Section
AC Input
Wires
