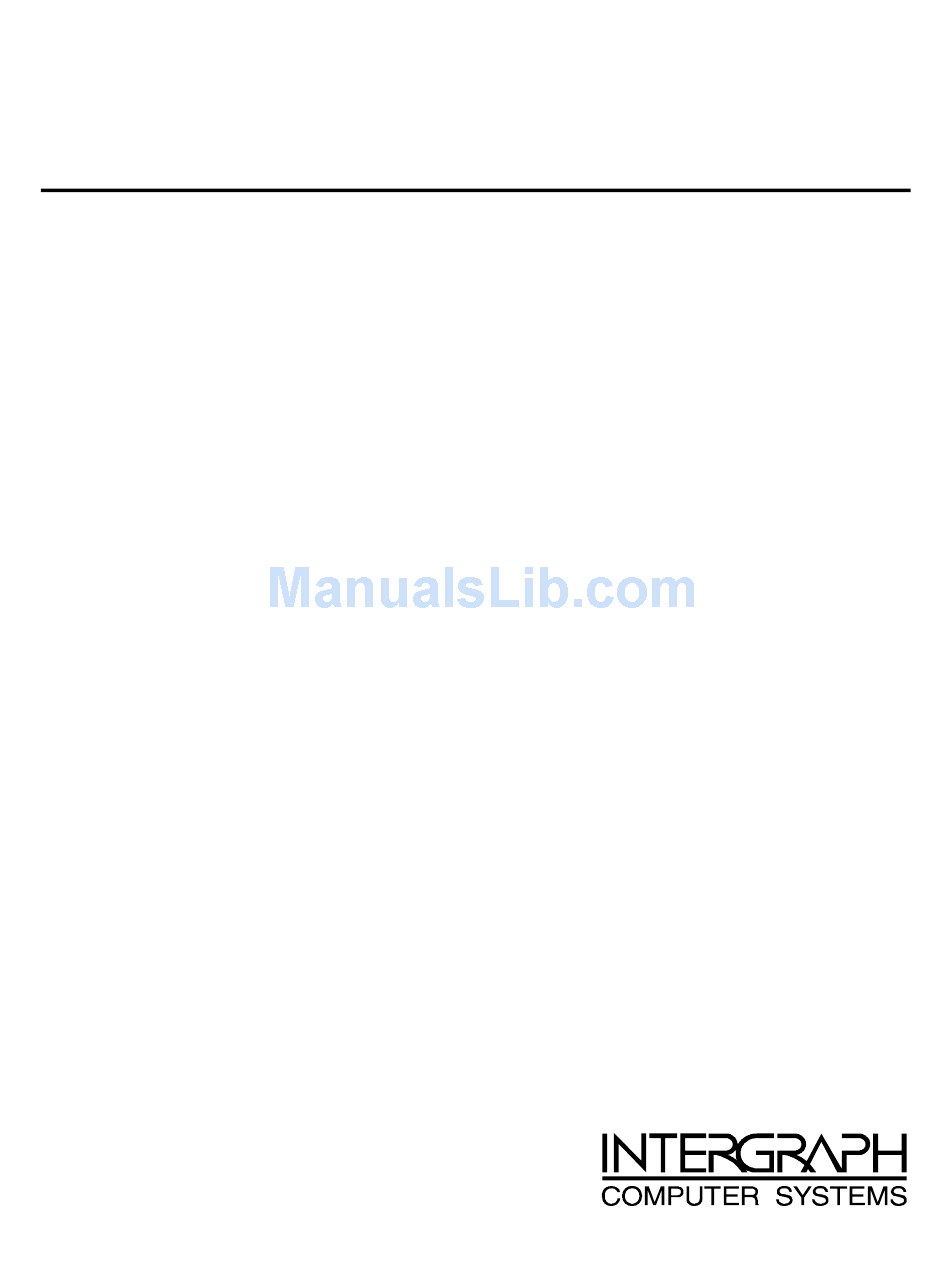

Page 1 InterServe 8400 System Reference November 1997 DHAF02240...
Page 2 The software discussed in this document is furnished under a license and may be used or copied only in accordance with the terms of the license. No responsibility is assumed by Intergraph for the use or reliability of software on equipment that is not supplied by Intergraph or its affiliated companies.
Page 3 The service and upgrade instructions should be performed by qualified personnel only. Qualified personnel do not have to be Intergraph service personnel, but those who are familiar with servicing computers, can follow instructions in a manual to service equipment, and do so without harm to themselves or damage to the equipment.
Page 5: Table Of Contents
Power Requirements...........................2 Domestic AC Distribution Box .....................2 Non-Domestic AC Distribution Box ..................3 Equipment Power Loads.......................4 Placing the System ..........................4 2 Installing the InterServe 8400 ......................5 Uninterruptible Power Supply ......................6 InterRAID-8e Cabinets........................7 InterServe Base Unit ........................10 Keyboard and Mouse........................13 Concentrator ............................14 Installing Disk Drives ........................14...
Page 6 DMA Channels ........................47 Board Layout........................47 Component Descriptions.....................50 I/O Connector Board (MSMT328)....................53 Board Layout........................53 Flash EPROM ........................55 LCD Board (MPCBD20)........................56 Power Distribution Board (MSMT385) ....................56 Side 1 ..........................57 Side 2 ..........................57 AC Input Wiring ..........................60 Disk Drive Section (MESAN520).....................61 Assembly Layout........................61 Cable Routing and Pinouts ....................61 Channel Module .........................63 SAF-TE Card ........................63...
Page 7: Introduction
Introduction This System Reference provides the information necessary to service InterServe 8400 systems. Restrictions This document is restricted for use by qualified personnel. In the opening, upgrading, and servicing instructions, heed all warnings and cautions. Personal injury and damage to equipment can occur if documented procedures are not followed.
Page 8 viii...
Page 9: Before You Begin
Retain all packaging materials. To return equipment for repair, the customer must return it in the original packaging to obtain warranty service (if provided by their contract agreement). WARNING If using non-Intergraph cables with the system, ensure that they are shielded and terminated on both ends.
Page 10: Power Requirements
This section provides information about the power requirements of the AC distribution box supplied by Intergraph with some systems. Intergraph provides separate AC distribution boxes for domestic and non-domestic use. This section describes the specifications and functionality of both types.
Page 11: Non-Domestic Ac Distribution Box
The power load should be balanced between the phases of the 110 VAC receptacles. For example, do not plug four 110 VAC 2 Amp devices into phase I; instead, plug two of the devices into the phase I and two into phase II. WARNING The wall outlet to which the AC distribution box is connected must be a NEMA L14-20R type outlet on a properly grounded branch circuit.
Page 12: Equipment Power Loads
13 VA The VA load of Intergraph rack-mount options is printed on the back of the device. Add the VA load for each device to determine if the AC distribution box can handle the load. If it cannot, add an additional AC distribution box.
Page 13: Installing The Interserve 8400
2 Installing the InterServe 8400 This chapter describes how to install an InterServe 8400 and additional equipment into an Intergraph rack. The equipment is secured in the rack along the side mounting posts, which have industry standard 7.1 mm diameter mounting holes along the edge. The mounting posts have small round markers to designate each vertical unit, or U.
Page 14: Uninterruptible Power Supply
NOTE The door hinges for the rack must be installed before installing the UPS in the bottom of the rack. For instructions, refer to Intergraph Rack Installation and Use . To install the UPS into the rack: 1. Insert tinnerman nuts at hole 3 and hole 10 in the front edge of the mounting post.
Page 15: Interraid-8E Cabinets
3. Attach the UPS to the rack using a screw at each corner. Mounting Post Front Edge of Post Hole 10 Hole 3 InterRAID-8e Cabinets Unpack the InterRAID-8e from the carton and verify you have the following items. Disk array cabinet Mounting hardware Handle brackets and screws Tinnerman nuts and screws...
Page 16 To install the InterRAID-8e cabinet into the rack: 1. Attach the handle brackets to both sides of the InterRAID-8e cabinet. Use the eight panhead screws (four for each bracket) supplied with the InterRAID-8e. Handle Bracket NOTE The sides of the InterRAID-8e have different hole patterns to match the pattern in each handle bracket. 2.
Page 17 3. Attach the mounting shelves to the rack. Place tinnerman nuts for the shelves on the interior face of all four mounting posts. Refer to the following figure. Interior Face of Mounting Post Mounting Shelves 4. Place tinnerman nuts for the InterRAID-8e faceplate on the exterior face of both front mounting posts, in holes 15 and 22.
Page 18: Interserve Base Unit
5. Remove and discard the flat head screws from both sides of the InterRAID-8e cabinet as shown. Flat Head Screws 6. Attach the mounting brackets to the InterRAID-8e and slide it into the rack as shown. Hole 22 Hole 15 InterRAID-8e Cabinet Mounting Bracket...
Page 19 Power cord Windows NT Server kit (software and documentation) Intergraph system software and online documentation (diskettes) WARNING The server base unit is very heavy and bulky. Two people must lift the base unit when removing it from the pallet and installing it into the rack.
Page 20 5. With a person on either side, lift the base unit and align the base unit rails in the rack with the rail guides mounted on the side of the base unit. Base Unit Rails Rail Guide (Each Side) 6. Slide the base unit into the rails and push the base until it stops. The metal rail button in the rail guides hits against the base unit rail.
Page 21: Keyboard And Mouse
Keyboard and Mouse This section describes installing the keyboard and mouse into the rack. The keyboard and mouse are installed into a sliding keyboard drawer. NOTE Refer to DHAF027 x 0, Rack-Mounted Monitor Installation , delivered with the monitor, for instructions to install the monitor.
Page 22: Concentrator
5. To retract the keyboard drawer, press the rail tabs on both sides of the drawer, then push it into the rack. Push in to retract the drawer. Concentrator A keyboard, mouse, and monitor concentrator is included with the remote interface kit. The concentrator comes with a 25-foot-long cable set that connects between the base unit and the concentrator.
Page 23 The disk drive boxes can hold up to six disk drives. Depending on the configuration, the system is RAID or non-RAID system. The RAID system uses a 2-channel AMI RAID controller to provide RAID capabilities such as disk striping, mirroring, and redundancy. The non-RAID system use a 2- channel Ultra Wide SCSI controller that does not feature any RAID capabilities.
Page 24: Install And Label The Disk Drives
Install and Label the Disk Drives To install the disk drives: 1. Open the disk section door on the front of the base unit. Slot 1 Drive Latching Clips 2. Remove the disk drives from the drive boxes. 3. Do the following when inserting drives into the slots: Extend the latching clips on the drive and align the rails on the side of the drive with the slot guides.
Page 25 4. Locate and install the boot drives (those with the completed labels). Install the RAID boot drives into slots 1, 2, and 3 of the disk section, as shown in the following figure. x GB x GB x GB Slot 8 Slot 7 Slot 6 Slot 5 Slot 4 Slot 3 Slot 2 Slot 1 Install the non-RAID boot drive into slot 1 of the disk section, as shown in the following...
Page 26 6. Label the remaining disk drives as follows. A drive labeling sheet is included in the parts box. Note carefully how the drives should be labeled for each slot. Label RAID disk drives with ADP, CH, and ID numbers as shown in the following figure. x GB x GB x GB...
Page 27: Additional Information
Slot 3 Slot 2 Additional Information The RAID system boot drives are configured at Intergraph using the MegaRAID utilities. Additional disk drives supplied with the system are not formatted or configured. You must configure these drives after configuring system software to make them usable to the system. Refer to Chapter 3, “Configuring the System,”...
Page 28: System Cables
System Cables All cable ports on the base unit and other Intergraph equipment are keyed or molded to ensure proper cable attachment. If a cable is not attaching easily, ensure that you are aligning the cable connector correctly with the port.
Page 29: Interraid-8E
InterRAID-8e To connect InterRAID-8e cables: 1. Connect the RAID SCSI cable to the InterRAID-8e SCSI port and to a RAID controller SCSI port in the base unit. Refer to the following figure. NOTE On the RAID controller, the top port is channel 0, and the bottom port is channel 1. Keep track of the InterRAID-8e attached to each channel, for drive labeling purposes.
Page 30: Intruder Alert
The server base unit contains the circuitry for the intruder alert, which must be connected to the alert switches in the top of the rack. If installing two Intergraph racks, where one contains only option equipment (disk array cabinets, networking devices, etc.) then the expansion rack can be connected to an adjacent rack containing the base unit.
Page 31 Intruder Alert Cable Loopback Connector To connect the intruder alert cable for adjacent racks: 1. For the system rack containing the base unit, connect the intruder alert cable as for an individual rack. 2. Remove the loopback connector from the system rack, as shown in the following diagrams. 3.
Page 32 System Rack on the Right: Attach cable to Link Remove open socket Cable loopback connector Base Unit Expansion Rack System Rack Front of Racks System Rack on the Left: Move loopback connector Remove Link to open socket this jumper Cable Base Unit Expansion Rack System Rack...
Page 33: Expansion Board Cables
Expansion Board Cables The InterServe 8400 base unit includes the following expansion boards as standard equipment: Standard Board Slot Disk Controller (RAID MSMT489 or UW SCSI CINFD80) PCI 4 100 Base-T Fast Ethernet Network Adapter (CINF920) PCI 2 InterSite Server Monitor (FINF029) ISA 4 The following figure shows the slots on the back of the base unit.
Page 34: Ups Serial Cable
UPS Serial Cable Connect the serial cable to the UPS serial port and to a base unit serial port as shown in the following figure. Serial Ports Serial Port...
Page 35: System Power Cord
System Power Cord To connect the system power cord: 1. Ensure the base unit circuit breaker switch is in the Off (down) position before attaching the power cord to the system and wall outlet. 2. Connect the system power cord to the base unit AC receptacle and to the proper receptacle of the AC distribution box or UPS.
Page 36: Cable Handlers
Cable Handlers To install cable handlers: 1. Extend the base unit to provide room in the back of the rack for installing the cable handlers. 2. On a rear mounting post, count 5 holes above the top of the base unit rail and attach a tinnerman nut.
Page 37 These ends to the devices These ends to the base unit To route cables: NOTE The base unit must be extended to insert cables into the cable handler. 1. Connect all the system power cords and data cables to the base unit and to the AC distribution box or UPS.
Page 38: Additional Rack-Mount Equipment
4. Connect the cables to the equipment and to the appropriate ports on the back of the base unit. All cable ports on the base unit and other Intergraph equipment are keyed or molded to ensure proper cable attachment. If a cable is not attaching easily, ensure that you are aligning the cable connector correctly with the port.
Page 39: Hardware Overview
3 Hardware Overview This chapter shows front and rear views of an InterServe 8400 base unit, including major parts and assemblies. Under each figure is a table that states the Intergraph part number of items called out in the figures. The Reference Page column in the table guides you to the page in this document for...
Page 40 Intergraph Reference Find No. Part No. Description Page CFAB371F Front top cover MMSA4010 5.25-inch peripheral bracket CDSK178 CD-ROM drive CFAB558F Disk drive tray CFAB364F Airflow baffle MESAN160 Hot swappable system fan MMSA4070 3.5-inch drive bracket MESAN480 Combo drive...
Page 41 Detail A MMSA4070 MESAN480 Detail B MMSA401 CDSK187 CFAB253 (Optional Disk) CFAB558...
Page 42 Intergraph Reference Find No. Part No. Description Page CFAB357F Cross bar support MSMT329 Processor board CFAB374F LCD back plate MPCBD20 LCD board CFAB167G Disk drive section door MESAN520 Disk drive section...
Page 43 Intergraph Reference Find No. Part No. Description Page CFAB354F Back top cover MSMT328 I/O connector board MSMT451 I/O expansion board MSMT385 Power distribution board AC receptacle, circuit breaker switch, AC filter, enclosure MPWS139 550 W power supply, hot swappable, redundant...
Page 44 Detail A CFAB348 MSMT328...
Page 45: System Hardware Information
4 System Hardware Information This chapter contains technical information about the boards, and other hardware that comes standard with an InterServe 8400. The following hardware items are described. Processor board (MSMT329) I/O expansion board (MSMT451) I/O connector board (MSMT328) LCD board (MPCBD20)
Page 46: System Level Functional Diagram
System Level Functional Diagram AC Filter Terminal Block AC In and Switch Power Data Power and Data Power Supply Power Supply Power Supply I/O Expansion Processor Network Power Distribution Board Board Board Card Card Cooling Fan Speaker Intruder Alert Cooling Fan RAID or SCSI Cooling Fan...
Page 47: Processor Board (Msmt329)
Processor Board (MSMT329) This section provides a functional diagram, memory subsystem description, address resources, and board layout for the processor board. The MSMT329 provides the following functionality: Processors - two or four Pentium Pro 200 MHz, each with 1 MB L2 cache Intel Orion chipset - two PCI Bridge chips, Memory Controller, four Memory Interface chips.
Page 48: Memory Subsystem Description
Bank 1 to 3. All SIMMs in the memory subsystem must be the same size. InterServe 8400 supports three SIMM sizes: 8Mx36 (32 MB), 16Mx36 (64 MB), and 32Mx36 (128 MB). Base systems with 128 MB (four 8Mx36 SIMMs) can be expanded with 8Mx36 SIMMs, for a maximum memory support of 1 GB.
Page 49 Word 1 Word 0 Rows 6/7 Rows 4/5 Rows 2/3 Rows 0/1 Rows 0/1 Rows 2/3 Rows 4/5 Rows 6/7 Bank 0 = Rows 0/1 Bank 2 = Rows 4/5 Bank 1 = Rows 2/3 Bank 3 = Rows 6/7 The following table shows the correlation between interleaves, words, rows and the socket J numbers.
Page 50: Address Resources
Row 0 Row 1 Row 2 Row 3 Row 4 Row 5 Row 6 Row 7 NOTE Since the ECC Memory driver does not distinguish whether an error occurred in word 0 or word 1 of a given interleave, both words (i.e. both SIMMs) have to be changed to correct a single-bit problem. For example, correcting single-bit errors that are occuring in interleave 0, row 0, requires replacing SIMMs in J36 and J40.
Page 51: Board Layout
Board Layout PCI Connector 0 Sideband Connector PCI Connector 1 CPU 3 CPU 1 CPU 0 CPU 2 VRM 0 VRM 3 VRM 2 VRM 1 OPB 0 OPB 0 Lithium (Primary (Primary Battery Compatibility) Auxiliary) 82454 82454 Memory Sockets Memory Sockets PCI Bridge Two PCI bridge chips (Intel OPB 0 82454) provide high-bandwidth PCI compatibility for the system.
Page 52: I/O Expansion Board (Msmt451)
To replace the Lithium battery: 1. Remove the peripheral drives. It is not necessary to disconnect their attached cables. 2. Carefully remove the discharged battery by grasping it firmly and lifting upward. 3. Install the new battery in the same orientation as the discharged battery. 4.
Page 53: Functional Diagram
Functional Diagram I/O Connector Board MSMT328 I/O Interface Super I/O 82379AB Controller ISA Slot 1 PCI - ISA Bridge ISA Bus FDC37C932 ISA Bus PCMCIA Cable Buffers PCI Local Bus (Compatibility) Ultra SCSI PCI Slot 1 PCI Local Bus Controller (Compatibility) AIC-786- VGA Video...
Page 54: I/O Addresses
I/O Addresses The primary system I/O devices are: Adaptec AIC-7860 Ultra SCSI DEC 21050 PCI-to-PCI Bridge Intel 82093AA I/O Advanced Programmable Interrupt Controller (I/O APIC) Intel 82454 PCIset Orion PCI Bridge (OPB) Intel 82452, 82453 PCIset Orion Memory Controllers (OMC) Intel 82379AB System I/O-APIC PCI-to-ISA Bridge Matrox MGA-2064W G95 Graphics Standard Microsystems FDC37C932 Super I/O Controller...
Page 55: Dma Channels
PCMCIA J27, J28 Speaker J30 PCI 0 Connector Sideband Connector PCI 1 Connector Standard Board Placement InterServe 8400 Slot AMI RAID Controller (MSMT489) PCI 4 or Symbios UW SCSI (CINFD80) 100 Base-T Fast Ethernet (CINF920) PCI 2 InterSite Server Monitor (CINF029)
Page 56 Jumper Connectors Connector Jumper Result Clears Real Time Clock and CMOS data Default Clears the BIOS Password Default Disables VGA display mode Enables VGA display mode (default) Cable Routing and Pinouts From Cable J26, SCSI MCBL102A CD-ROM drive J27, ISA Bus (PCMCIA) MCBL084A Combo drive, J6 J28, ISA Bus (PCMCIA)
Page 57 Signal Signal Signal SD+(15) Ground D7BUFDIR PWR _ DWN SD+(11) SA+(3) SD+(10) J28, MCBL084A, PCMCIA ISA Bus Signal Signal Signal Spare SD+(2) Ground IRQ11 SD+(3) SA+(4) IRQ4 SD+(6) SA+(5) IRQ5 SD+(7) SA+(8) 0WS- SA+(19) SA+(9) Ground SA+(20) SA+(12) MEMCS16- SA+(23) SA+(13) Ground SBHE-...
Page 58: Component Descriptions
Component Descriptions The IO Expansion Board provides PCI and ISA expansion slots. It also has the graphics, non-RAID SCSI, mouse, keyboard, serial port, parallel port, and floppy controllers, as well as the PC compatibility hardware (BIOS PROM, NVRAM, RTC) and interrupt logic. I/O Controller Lithium Battery...
Page 59 Window RAM Window RAM (WRAM) is the video memory used by the MGA-2064W. The graphics frame buffer consists of two 256K x 32 WRAM components for 2 MB of video memory. WRAM is a dual-ported video memory specially designed to accommodate common drawing functions, offering higher graphics performance at a lower cost than standard Video RAM.
Page 60 SPP mode (or Byte or Bi-Dir mode) - compatible with IBM PS/2 hosts. SPP is an asynchronous, byte-wide reverse channel (peripheral to host) mode using the eight data lines of the interface for data, and the control/status lines for handshaking. Transfer direction is controlled by the host when the peripheral and the host both support bi-directional use of data lines.
Page 61: I/O Connector Board (Msmt328)
Lithium Battery The Lithium battery on the I/O expansion board provides power to the CMOS chip (which stores the BIOS and the AMIBIOS Setup program) and real time clock. If the battery fails or if the voltage is low, the message “Battery voltage low” displays during system startup, or the system date and time information will not display.
Page 62 Certain restrictions are applied for the number and type of SCSI devices, and cables lengths used for the devices. Refer to the Chapter 7 of the System Setup document delivered with the system for more information. Refer to page 48 for the SCSI pinout. See table “J26, MCBL102A, SCSI.” Keyboard Port, Mouse Port The keyboard and mouse ports are PS/2 style, 6-pin ports.
Page 63: Flash Eprom
Parallel Port The parallel port is used almost exclusively for printers, but is compatible with any peripheral device designed to interface with a standard Centronics-type parallel port. The FDC37C932 is the system’s parallel controller, among other things. The FDC37C932 supports a multi-mode bi- directional parallel port.
Page 64: Lcd Board (Mpcbd20)
LCD Board (MPCBD20) The LCD board consists of a four-line display screen, soft-touch buttons and status LEDs that allow users to monitor system and internal RAID status. The display screen reports various system status and events in a software-independent manner. A +5V (always on) output powers the textual display of the panel.
Page 65: Side 1
Side 1 Board Layout NOTE See page 66 for pinout of the power supply connectors (J4, J5, J6). Cable Routing and Pinout If an InterSite Server Monitor (ISM) card is installed, MCBL094A connects to J18 on side one of the power distribution board.
Page 66 Cable Routing and Pinouts From MSMT385 Cable MCBL097A LCD board, J1 MCBL086A Combo drive MCBL099A System keyswitch MCBL085A CD-ROM drive MCBL101A Intruder Alert Port MCBL095A Disk drive section, J2 MCBL096A Disk drive section, J3 J13, 14, 15 MCBL093A Fans (Left, Center, Right) MCBL087A Disk drive section, J19 MCBL087A...
Page 67 J8, MCBL085A, SCSI Drive Power Signal Wire Color Signal Wire Color +12V Yellow Ground Black Ground Black J9, MCBL101A, Intruder alert Signal Intruder Alert (chassis open) Ground J13/14/15, MCBL093A, Fan power Signal +12V Fan Tach Ground...
Page 68: Ac Input Wiring
AC Input Wiring The following diagram shows the AC input wiring, from AC receptacle (MCBL088) to the power distribution board. Blue Blue Blue Grn/Yell Grn/Yell Grn/Yell Brown Brown Brown Ground Lug GRAY BLUE Terminal Block CCON360 (Gray) CCON362 (Blue) Brown Blue CFIL070 AC LINE...
Page 69: Disk Drive Section (Mesan520)
Disk Drive Section (MESAN520) Assembly Layout SAF-TE Card (RAID Only) CH 0 Connector CH 1 Connector JP3 - SCSI ID Jumper Channel Module LED Board JP2 - Delay Jumper Cable Routing and Pinouts From MESAN520 Cable J2, LED Board MCBL096A Power distribution board, J10 J3, LED Board MCBL095A...
Page 70 J2: MCBL096A, LCD Cable Signal Signal Signal Ground Data 1 No Connect No Connect Data 2 Menu Ground Data 3 Escape DISPRS Data 4 Down DISPRW Data 5 Enter DISPENB Data 6 Data 0 Data 7 J3: MCBL095A, LED Cable Signal Signal Ground...
Page 71: Channel Module
Signal Signal SCSI Data Bit 4 SCSI Data Bit 5 SCSI Data Bit 8 SCSI Data Bit 6 SCSI Data Bit 9 SCSI Data Bit 7 SCSI Data Bit 10 SCSI Data Parity 0 SCSI Data Bit 11 SWAP (Ground) Channel Module The disk section uses the dual-channel module (MSMT456) to enable two channels for the disk section.
Page 72 Slot 8 (left) The following tables show the SCSI IDs for the slots and the jumper settings to set the IDs. The jumper settings are made by Intergraph and should only be changed by qualified service personnel when required. Slots 1 Through 4 (Right, Channel 0)
Page 73: Power Supplies (Mpws139)
All jumpers on JP2 and JP3 must be removed if the system is upgraded to a RAID configuration. Power Supplies (MPWS139) The InterServe 8400 uses three redundant 550 watt current-sharing power supplies. Each power supply has six outputs, is hot swappable, and is auto-ranging between 90 - 132 VAC and 180 - 264 VAC.
Page 74 3. The sum of the Initial Setting Tolerance and Line/Load Regulation does not exceed 3% for the +3.3 V, +5.1 V, and +5.0 V (always on) outputs, 5% for the +12.0 V output, and 10% for the negative output voltages. 4.
Page 75 Pinout Notes: 1. The AC OK signal is a TTL-compatible signal. It monotonically (without wavering) transitions to a high level to indicate that the AC input power is within 90 - 132 VAC or 180 - 264 VAC. The signal provides the 3 mA sink/source current as well as any current required for the LEDs. Provided that there is an AC input, this signal must be available to report whether or not the outputs are functional.
Page 76: Intruder Alert
Intruder Alert The 19-inch rack is wired to report intruder alerts to InterServe 8400 systems in the rack or in adjacent racks. The following diagram illustrates the wiring scheme: Front of System Rack Front Door Switch - This switch is closed when the door is closed.
Page 77 NOTE A link cable can be used to connect the system rack to an adjacent expansion rack, as shown in the following diagram. A loopback connector in each rack must be removed to install the link cable. Front of Expansion Rack Front of System Rack No connection to optional devices.
Page 78: Cd-Rom Drive (Cdsk178)
CD-ROM Drive (CDSK178) The following figure shows the back of the CD-ROM drive. Mode Select SCSI Power Header Connector Connector The following table shows the cable routing for the CD-ROM drive. From Cable SCSI connector MCBL102A I/O expansion board, J26 Power connector MCBL085A Power distribution board, J8...
Page 79: Combo Drive (Mesan480)
Combo Drive (MESAN480) The following figure shows the cable connectors on the combo drive. Converter Connector Floppy Connector Power Connector ISA Bus Connectors The following table shows the cable routing for the combo drive. From Cable Power connector J5 MCBL086A Power distribution board, J2 ISA bus connector J3 MCBL084A...
Page 80 The floppy connector also uses cable MCBLZ230 to connect to the converter connector J4 on the combo drive. The following table shows the converter connector pinout . Signal Signal Signal MTR1- Ground INDEX- No connect TRK0- Ground DRV1- No connect WRPRT- STEP- Ground...
Page 81: Accessing The System
5 Accessing the System This chapter describes servicing restrictions, opening the base unit, avoiding electrostatic discharge, and closing the base unit. Servicing Restrictions Upgrading and servicing the system is restricted to qualified personnel. Heed all warnings and cautions in servicing instructions. Personal injury and damage to equipment can occur if documented procedures are not followed.
Page 82: Avoiding Electrostatic Discharge
Back Cover Screws Top Cover Screws Avoiding Electrostatic Discharge Sensitive components inside the base unit can be damaged by static electricity. To protect against this possibility, take the following precautions when working with the system’s internal components. Touch the bare metal of the base unit to ensure the base unit and your body are at the same electric potential.
Page 83: Closing The Base Unit
Closing the Base Unit CAUTION After servicing or upgrading the system, always replace the covers that were removed. The covers ensure the system maintains proper air flow, so internal components do not overheat and fail. The covers also ensure that electromagnetic interference (EMI) emissions remain below the standard requirements.
Page 85: Upgrading The System
6 Upgrading the System This chapter describes how to add memory, option boards, internal SCSI devices, and external SCSI devices to an InterServe 8400. Configuration details for Intergraph options are provided, as well as instructions for using the System Configuration Utility.
Page 86 All SIMMs must be the same size and the banks must be filled sequentially. The following figure shows the bank layout. Individual sockets are labeled J21 through J52 from left to right. Base memory for an InterServe 8400 is installed in sockets J35, J36, J39 and J40 of Bank 0. Bank 2...
Page 87 For example, if your InterServe system has minimum memory, and you are adding three Intergraph memory kits (12 SIMMs total), install the first two SIMMs in sockets J29 and J44 of Bank 1, then work towards the center of the board.
Page 88: Adding Option Boards
BIOS automatically detects the installed board and assigns the necessary system resources. Since PnP boards are ISA-based boards, they must be installed in the ISA slots. The following table shows the required and recommended slots for installing Intergraph option boards.
Page 89: Assigning Resources For Option Boards
All PCI option boards sold by Intergraph fully comply with the Peripheral Component Interconnect NOTE Specification, 2.1. To install option boards: NOTE Assign system resources for ISA and non-compliant PCI boards before installation. Refer to the next section, “Assigning System Resources for Option Boards”.
Page 90 To configure option boards with a configuration file: 1. Shut down and power off the system. 2. Insert the SYSUTIL diskette into the floppy diskette slot of the combo drive; then restart the system. 3. When the MS-DOS Startup menu displays, select option 1 to run the SCU. 4.
Page 91 5. Enter the data specified in the manufacturer’s configuration instructions. NOTE Use the and arrow keys to move the cursor from field to field. Once inside the DMA, IRQ, and Ports fields, press to display the sub-fields for entering the information. ENTER 6.
Page 92: Adding Internal Scsi Devices
Adding Internal SCSI Devices You can install one single-ended internal SCSI device such as a tape drive in the empty slot beneath the CD-ROM drive. When installing a SCSI device, carefully follow the vendor’s instructions for setting the SCSI ID and disabling the SCSI termination before installing the devices. To install an internal SCSI device: 1.
Page 93 3. If installing a tape drive, remove the slide bracket from inside the peripheral bracket. Slide Bracket Peripheral Bracket 4. Disable the device’s SCSI termination, and set the device’s SCSI ID to an unused number. By default, the CD-ROM drive uses ID 4, and the SCSI bus uses ID 7. Tape drives should be set to ID 6.
Page 94: Adding External Scsi Devices
SCSI devices as well. Refer to the “Adding Option Boards” section to install new boards. Understanding Cable Lengths The InterServe 8400 is equipped with an Ultra SCSI controller (AIC 7860) for all internal and external SCSI devices. By default, the controller arbitrates with each device (that is, initiates sync negotiation) to determine the data rate the device will use to transfer data (5, 10, or 20 MHz).
Page 95: Connecting The Device
Connecting the Device To add an external SCSI device: 1. Connect the SCSI cable to the SCSI port on the base unit and to the device. 2. Set the device’s SCSI ID to an unused number (0, 1, 2, 3, 5, or 6). By default, the following devices use certain SCSI IDs: CD-ROM drive uses ID 4.
Page 97: Specifications
7 Specifications The following specifications apply to all InterServe 8400 systems. Base Unit Dimension (HxWxD) Without side flanges and handles With side flanges and handles Inches Centimeters Inches Centimeters Height 19.25 48.9 19.25 48.9 Width 16.875 42.86 18.625 47.3 Depth 76.2...
Page 99: Low-Level Software Procedures
8 Low-Level Software Procedures Follow the procedures in this appendix to install low-level software (flash code and firmware) on an InterServe 8400. Reset the default RAID parameters after installing the software. Installing RAID Controller Flash Code The following procedure may only be performed by Intergraph Field Service personnel.
Page 100: Setting The Default Raid Configuration
12. Enable the RAID BIOS and then exit the utilities. Setting the Default RAID Configuration To set the default RAID configuration: 1. Restart the system. 2. When prompted, press to enter the MegaRAID utilities. CTRL 3. Use Configuration/Easy Configuration to set up one array to RAID level 5, write through, and cache I/O.
Page 101: Index
Index Airflow baffle (CFAB364F) part view, 32 100 Base-T Fast Ethernet Network Assigning resources for option boards, Adapter (CINF920) slot location, 25 Audio connector (CD-ROM drive) pinout, 70 Avoiding electrostatic discharge, 74 3.5-inch drive bracket (MMSA4070) part view, 32 Bi-Dir mode parallel port, 52 5.25-inch peripheral bracket BIOS password clear...
Page 102 Cross bar support (CFAB357F) External SCSI devices part view, 34 adding, 86 DC OK signal Fan power cable (MCBL093A) MPWS139 power supplies, 67 pinout, 59 Default RAID configuration FDC37C932 (super I/O controller), 51 setting, 92 Firmware for disk section Disk drive section (MESAN520) installing, 91 assembly layout, 61 Flash code for RAID controller...
Page 103 Installing (Continued) Lithium battery (Continued) InterServe base unit, 10 processor board (MSMT329), 43 uninterruptible power supply, 6 replacing, 44 Internal SCSI devices adding, 84 InterRAID-8e cabinets. see also Memory address map, 42 InterRAID Setup Memory subsystem description installing, 7 processor board (MSMT329), 40 InterRAID-8e cables, 21 MESAN160 (system fans), 38 Interrupts...
Page 104 MSMT385 (power distribution board), Power distribution board (Continued) side 1 cable routing and pinouts, description, 56 part view, 35 side 1 layout, 57 side 1 cable routing and pinouts, side 2 board layout, 57 side 2 cable routing and pinouts, side 1 layout, 57 side 2 board layout, 57 Power distribution board assembly...
Page 105 SCSI System (Continued) adding devices, 86 safety precautions, 1 cable (MCBL102A) pinout, 48 specifications, 89 cable lengths, 86 upgrades, 77 CD-ROM drive termination, 70 System Configuration Utility controller (AIC-7860), 51 adding option boards, 81 port, 53 SCSI drive power cable (MCBL085A) pinout, 59 Terminal block (CCON360 and Serial port...
