Peripheral Cables

This section informs you of peripheral cable connectors and the system bay locations to
which they attach. Cable illustrations are not to scale. You can identify the cables and
connectors using their spacing as reference. See "Device Bays" in Chapter 3, for details on
standard peripheral locations.
CAUTION You must disable termination on any SCSI device you install internally. If you do not disable
termination, the system may fail to start or may behave erratically.

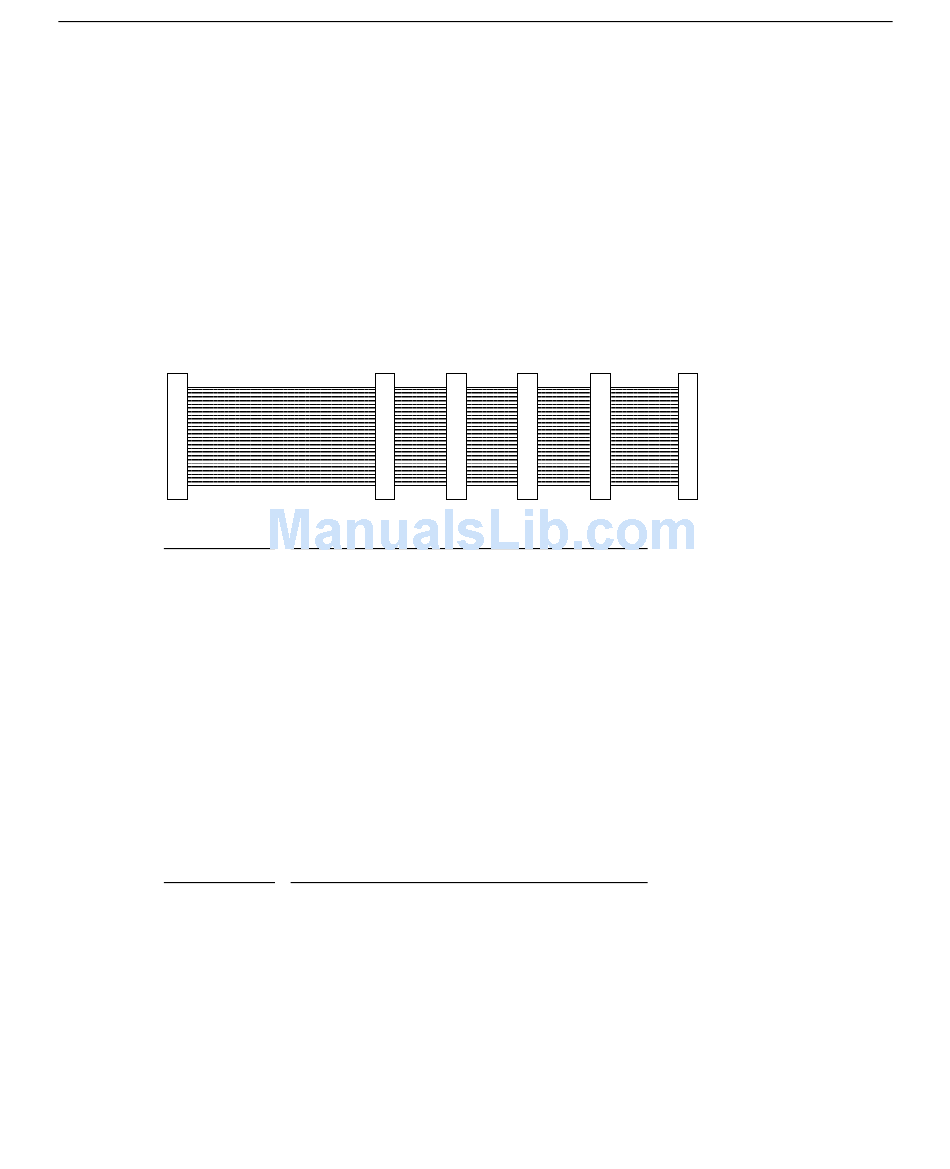

Internal Wide Ultra SCSI Cable (MCBL383A)

1
Connector
1
2
3
4
5
6
NOTE A slightly shorter cable, MCBL348A, may also be installed in your system if you ordered the
second JBOD option.
If a second cable is installed, the connections will be as follows:
Connector
1
2
3
4
5
6
2 3
Connects To
Channel 0, SCSI Controller
JBOD Disk at Bay 1 (internal bay)
JBOD Disk at Bay 2 (internal bay)
JBOD Disk at Bay 3 (internal bay)
JBOD Disk at Bay 4 (internal bay)
Active Terminator
Connects To
Channel 1, SCSI Controller CINFD800
JBOD Disk at Bay 5 (internal bay)
JBOD Disk at Bay 6 (internal bay)
JBOD Disk at Bay 7 (internal bay)
JBOD Disk at Bay 8 (internal bay)
Active Terminator
4 5 6
