PANEL DESCRIPTION

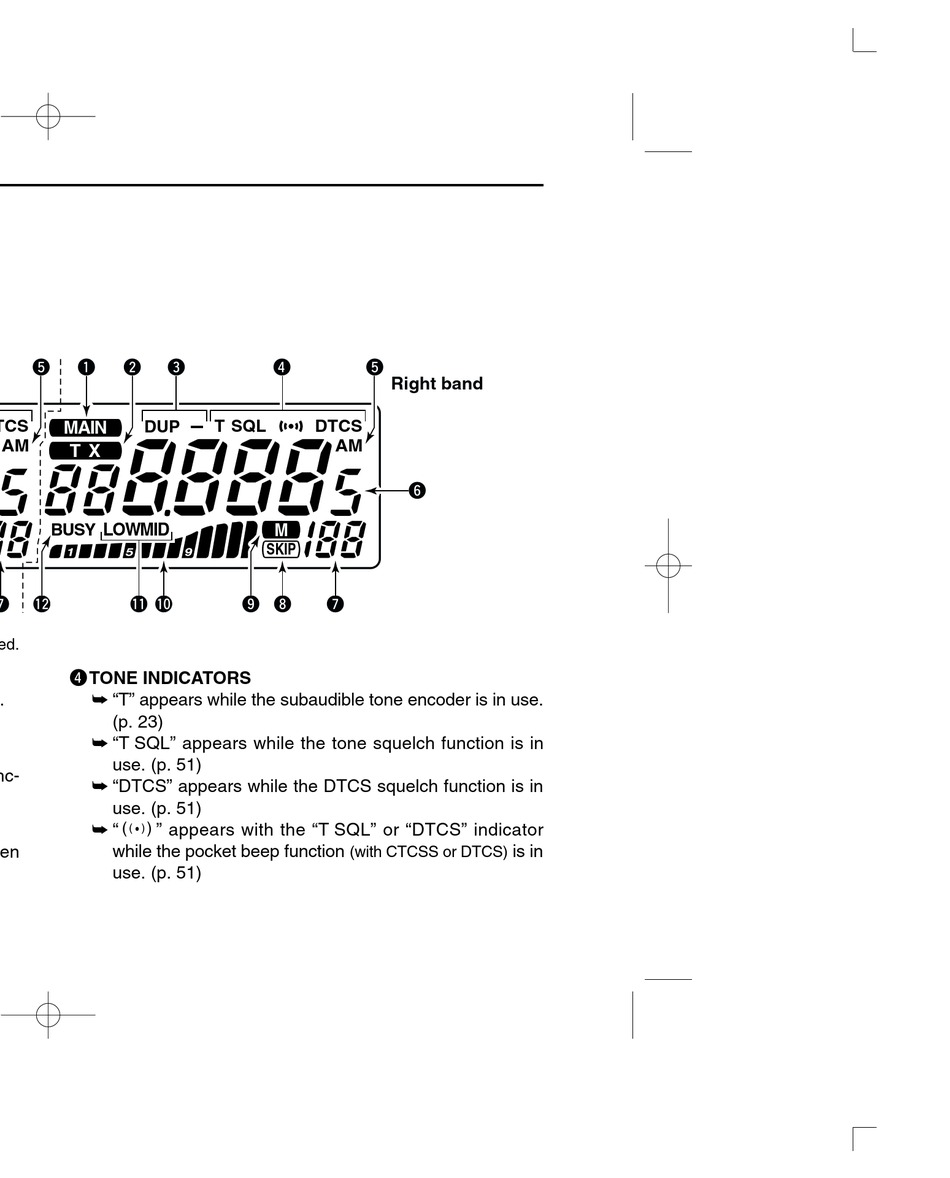

I Function display

Left band
y
!2
*The same indications for both the left and right bands are arranged.
q MAIN INDICATOR (p. 11)
Indicate the main band for transmit and function control.
w TRANSMIT INDICATOR
➥ Appears while transmitting. (p. 20)
➥ Blinks while transmitting with the one-touch PTT func-
tion. (p. 21)
e DUPLEX INDICATORS (p. 23)
"DUP" appears when plus duplex, "DUP –" appears when
minus duplex (repeater) operation is selected.
3
q w e
DUP T SQL
MAIN
T X
BUSY LOWMID
SKIP
!1 !0 o
r t q w
DTCS DUP
MAIN
AM
T X
M BUSY LOWMID
i u !2 !1 !0
r TONE INDICATORS
➥ "T" appears while the subaudible tone encoder is in use.
(p. 23)
➥ "T SQL" appears while the tone squelch function is in
use. (p. 51)
➥ "DTCS" appears while the DTCS squelch function is in
use. (p. 51)
➥ "S" appears with the "T SQL" or "DTCS" indicator
while the pocket beep function
use. (p. 51)
e r t
T SQL DTCS
AM
M
SKIP
o i u
(with CTCSS or DTCS)
Right band
y
is in
