POCKET BEEP AND TONE SQUELCH

I Pocket beep operation

This function uses subaudible tones for calling and can be
used as a "common pager" to inform you that someone has
called while you were away from the transceiver.
D Waiting for a call from a specific station
q Set the operating frequency.
w Push [SET•
] to enter set mode in the main band.
e Push [SET•
] or [LOW•PRIO] several times until "Ct" for
tone squelch or "dt" for DTCS squelch appears.
T SQL
MAIN
T X
M
Tone squelch frequency setting DTCS code setting
r Rotate the main band's [DIAL] to select the desired tone
squelch frequency.
t When operating the pocket beep function with DTCS
squelch, push [SET•
the DTCS polarity.
DTCS polarity setting
51
MAIN
T X
M
] once then rotate [DIAL] to select
MAIN DTCS
T X
M

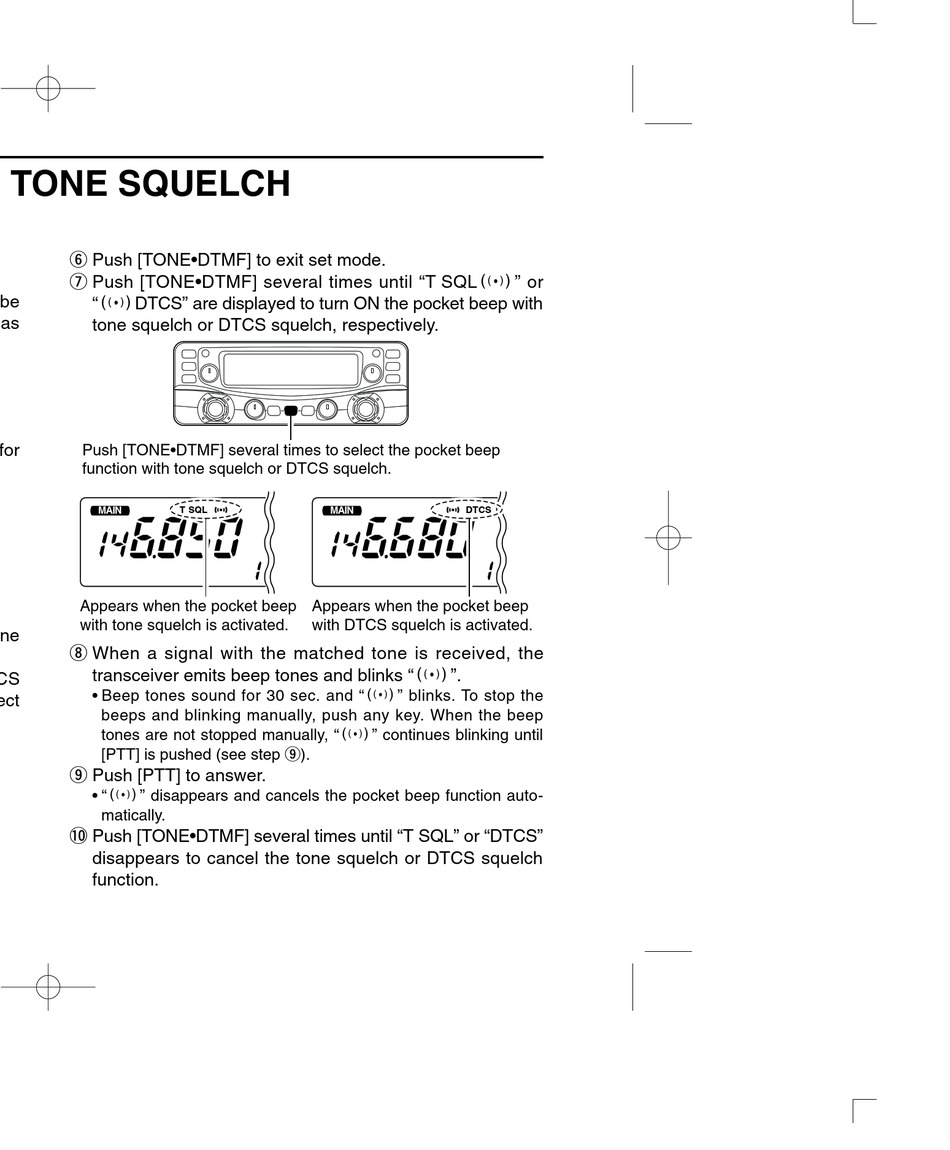

y Push [TONE•DTMF] to exit set mode.
u Push [TONE•DTMF] several times until "T SQLS" or
"SDTCS" are displayed to turn ON the pocket beep with
tone squelch or DTCS squelch, respectively.
Push [TONE•DTMF] several times to select the pocket beep
function with tone squelch or DTCS squelch.
DTCS
MAIN
T X
Appears when the pocket beep
with tone squelch is activated.
i When a signal with the matched tone is received, the
transceiver emits beep tones and blinks "S".
• Beep tones sound for 30 sec. and "S" blinks. To stop the
beeps and blinking manually, push any key. When the beep
tones are not stopped manually, "S" continues blinking until
[PTT] is pushed (see step o).
o Push [PTT] to answer.
• "S" disappears and cancels the pocket beep function auto-
matically.
!0 Push [TONE•DTMF] several times until "T SQL" or "DTCS"
disappears to cancel the tone squelch or DTCS squelch
function.
T SQL MAIN
T X
M
Appears when the pocket beep
with DTCS squelch is activated.
DTCS
M
