I Data Cloning - Icom IC-2725E Instruction Manual

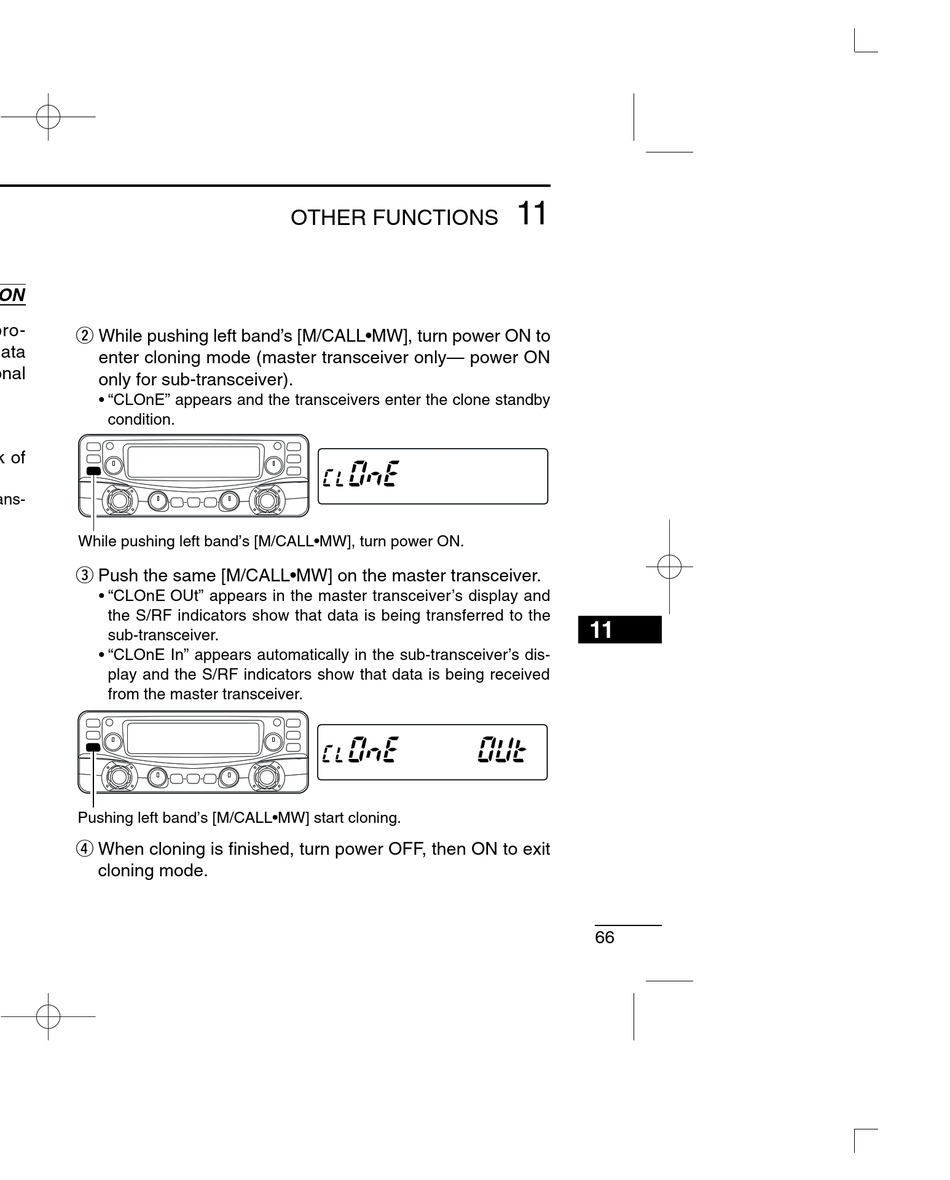

I Data cloning

Cloning allows you to quickly and easily transfer the pro-
grammed contents from one transceiver to another; or , data
from a personal computer to a transceiver using the optional
CS-2720
CLONING SOFTWARE
D Cloning between transceivers
q Connect the OPC-474 cloning cable to the [SP-2] jack of
the master and sub-transceivers.
• The master transceiver is used to send data to the sub-trans-
ceiver.
To [SP-2]
POWER ON
AT
.
To [SP-2]
OTHER FUNCTIONS
w While pushing left band's [M/CALL•MW], turn power ON to
enter cloning mode (master transceiver only— power ON
only for sub-transceiver).
• "CLOnE" appears and the transceivers enter the clone standby
condition.
While pushing left band's [M/CALL•MW], turn power ON.
e Push the same [M/CALL•MW] on the master transceiver.
• "CLOnE OUt" appears in the master transceiver's display and
the S/RF indicators show that data is being transferred to the
sub-transceiver.
• "CLOnE In" appears automatically in the sub-transceiver's dis-
play and the S/RF indicators show that data is being received
from the master transceiver.
Pushing left band's [M/CALL•MW] start cloning.
r When cloning is finished, turn power OFF, then ON to exit
cloning mode.
11
MAIN MAIN
T X T X
M M
MAIN MAIN
T X T X
M M
11
66
