I Microphone keys

The supplied HM-133's (optional for some versions) [F-1] and
[F-2] keys memorize the transceiver conditions.
The [UP]/[DN] keys of the standard or an optional microphone
(other than the HM-133) can be assigned functions like the
function keys on the transceiver's front panel.
D D [UP]/[DN] keys on a microphones
(other than HM-133)
The following functions are assigned to the [UP]/[DN] keys on
the other microphones (HM-118N/TN, etc.) when first apply-
ing power.
• Default setting
[UP] : channel up; push and hold to start scan, push again
to stop scan.
[DN] : channel down; push and hold to start scan, push
again to stop scan.
➥ Assigning a function
q Turn the power OFF.
w While pushing the desired switch on the transceiver and
one of either [UP]/[DN] keys on the microphone, turn the
power ON.
• The function is programmed into the key.
➥ Clearing an assignment
q Turn the power OFF.
w While pushing the desired [UP] or [DN] key on the micro-
phone, turn the power ON.

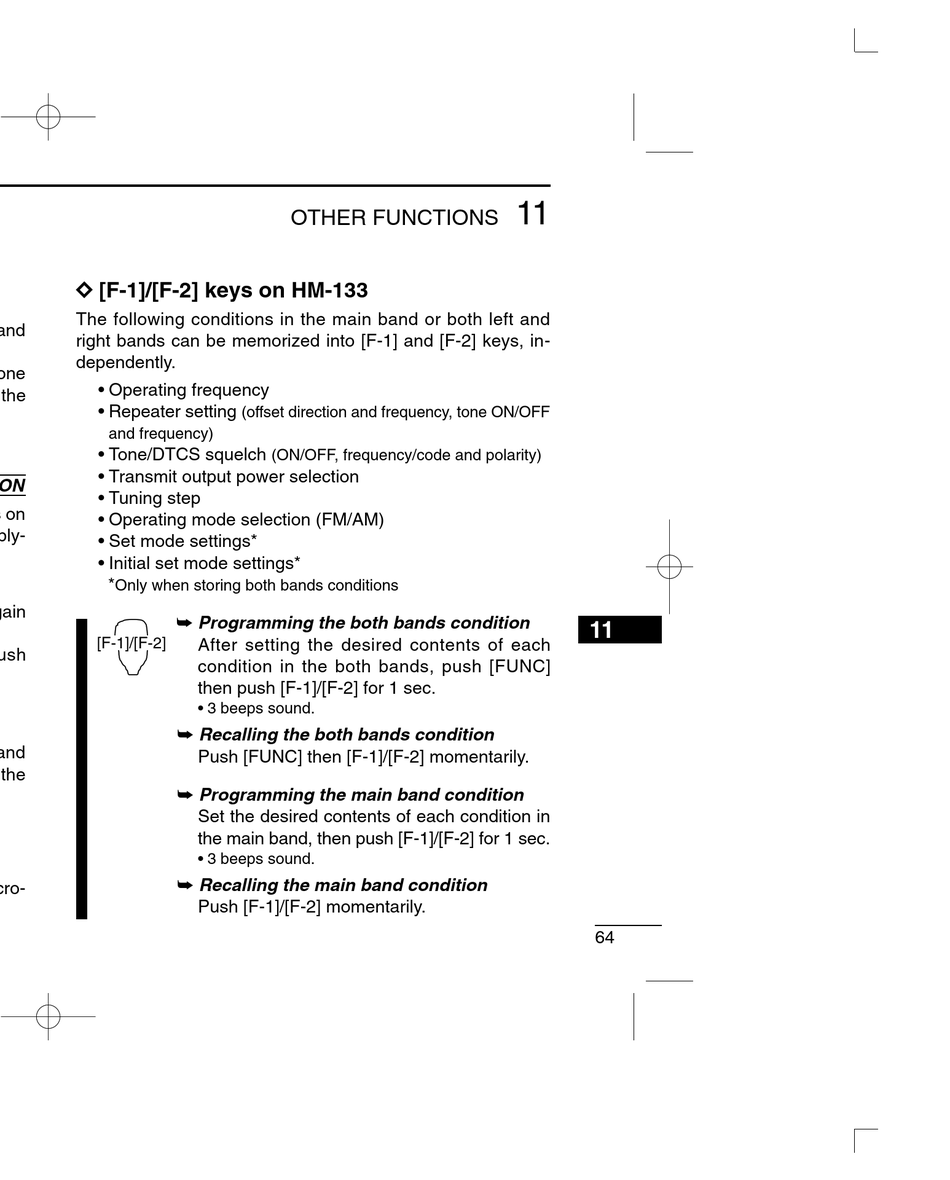

D D [F-1]/[F-2] keys on HM-133
The following conditions in the main band or both left and
right bands can be memorized into [F-1] and [F-2] keys, in-
dependently.
• Operating frequency
• Repeater setting
and frequency)
• Tone/DTCS squelch
• Transmit output power selection
POWER ON
AT
• Tuning step
• Operating mode selection (FM/AM)
• Set mode settings*
• Initial set mode settings*
*
Only when storing both bands conditions
[F-1]/[F-2]
OTHER FUNCTIONS
(offset direction and frequency, tone ON/OFF
(ON/OFF, frequency/code and polarity)
➥ Programming the both bands condition
After setting the desired contents of each
condition in the both bands, push [FUNC]
then push [F-1]/[F-2] for 1 sec.
• 3 beeps sound.
➥ Recalling the both bands condition
Push [FUNC] then [F-1]/[F-2] momentarily.
➥ Programming the main band condition
Set the desired contents of each condition in
the main band, then push [F-1]/[F-2] for 1 sec.
• 3 beeps sound.
➥ Recalling the main band condition
Push [F-1]/[F-2] momentarily.
