Icom IC-2725E Instruction Manual page 9

D Optional MB-84 installation
The optional MB-84
REMOTE CONTROLLER BRACKET
separate installation.
q Drill 2 holes where the bracket is to be installed.
• Approx. 4 mm when using nuts; approx. 1–2 mm when using
self-tapping screws.
• Over-head mounting
Nut
Spring
washer
Supplied
screws
Flat
washer
Supplied
screws
is used for
Remote
controller
MB-84
• Standard mounting
Self-tapping
screws
Remote
controller
MB-84
QUICK REFERENCE GUIDE
wAttach the remote controller to the MB-84 and tighten the
controller using with the supplied screws.
e Tighten the controller with bracket.

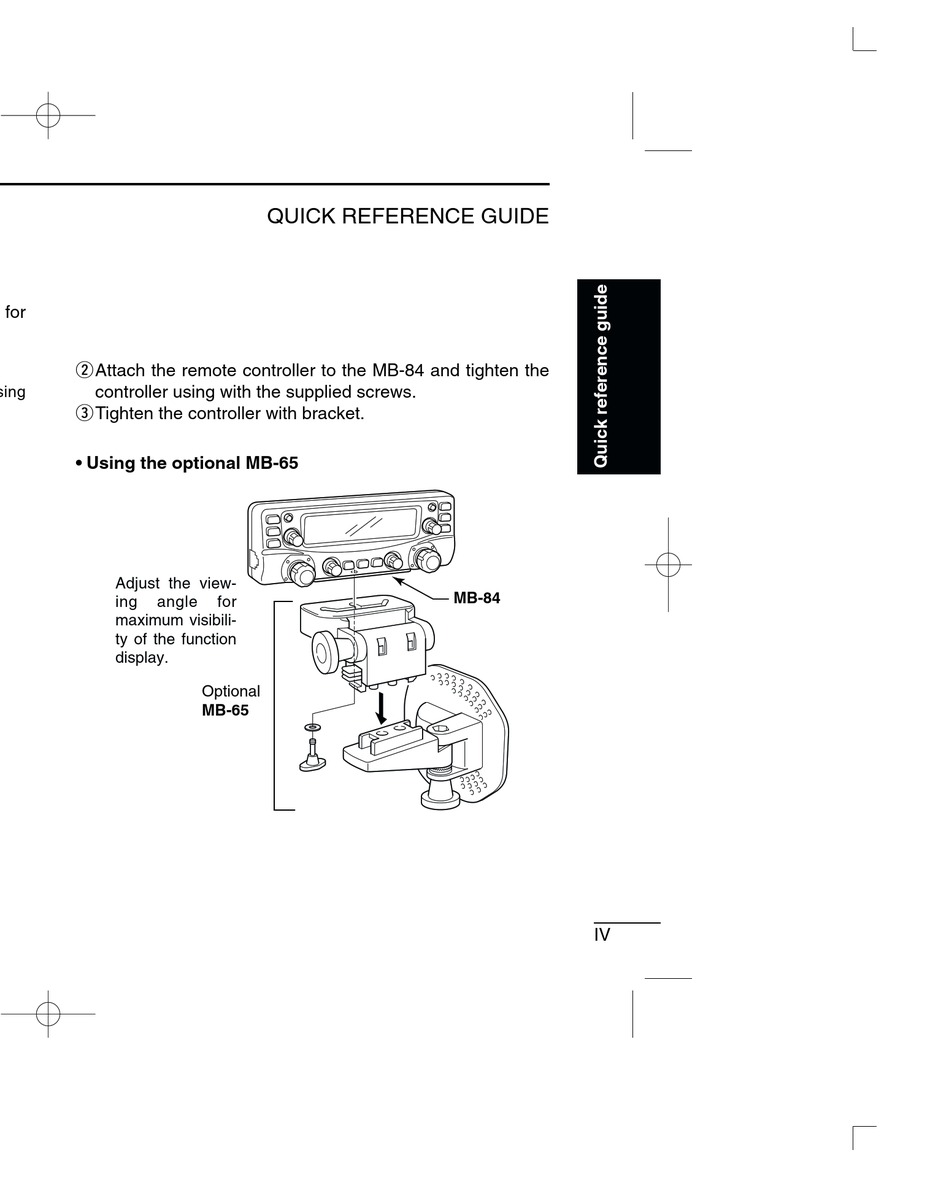

• Using the optional MB-65
Adjust the view-
ing angle for
maximum visibili-
ty of the function
display.
Optional
MB-65
MB-84
IV
