SETTING A FREQUENCY

I Preparation

D Turning power ON/OFF
Push [PWR] for 1 sec.
➥ Push [PWR] for 1 sec. to turn power ON and OFF.
D MAIN band
The IC-2725E can receive 2 m and 70 cm band signals si-
multaneously. To activate all functions access or to change
frequency via the microphone, you must designate one band
as the main band. The transceiver transmits a signal on the
main band only.
Push the desired band's
[MAIN•BAND]
➥ Push the desired band's [MAIN•BAND] to select the main
band.
• "Q" indicates the main band.
➥ Push [BAND] to toggle the main band between
BAND left and right bands.
11

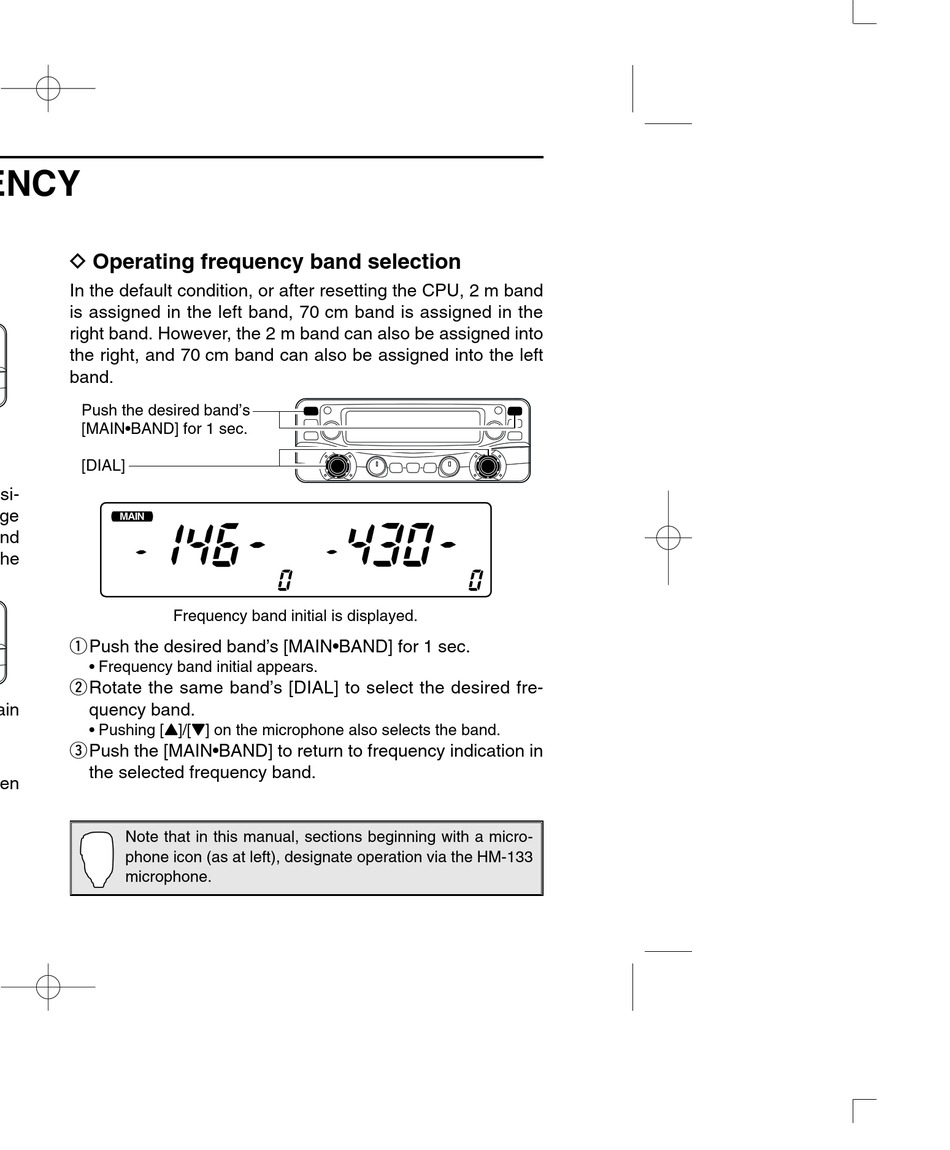

D Operating frequency band selection
In the default condition, or after resetting the CPU, 2 m band
is assigned in the left band, 70 cm band is assigned in the
right band. However, the 2 m band can also be assigned into
the right, and 70 cm band can also be assigned into the left
band.
Push the desired band's
[MAIN•BAND] for 1 sec.
[DIAL]
MAIN
T X
M
Frequency band initial is displayed.
q Push the desired band's [MAIN•BAND] for 1 sec.
• Frequency band initial appears.
wRotate the same band's [DIAL] to select the desired fre-
quency band.
• Pushing [Y]/[Z] on the microphone also selects the band.
ePush the [MAIN•BAND] to return to frequency indication in
the selected frequency band.
Note that in this manual, sections beginning with a micro-
phone icon (as at left), designate operation via the HM-133
microphone.
MAIN
T X
M
